Hand-held tester:
WARNING: This page is about a different variant/trim than selected.
- CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0420)
- Connect a hand-held tester to the DLC3.
- Turn the ignition switch to ON and turn the tester ON.
- On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
- Read DTCs.
Result:
DTC OUTPUT RESULTDisplay (DTC Output) Proceed To P0420 A P0420 and other DTCs B HINT:
If any DTCs other than P0420 are output, troubleshoot those DTCs first.
- B: GO TO DIAGNOSTIC TROUBLE CODE CHART
- A: GO TO NEXT STEP
- PERFORM ACTIVE TEST (A/F CONTROL)
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch to ON and turn the tester ON.
- Start the engine.
- Warm up the engine at an engine speed of 2,500 rpm for approximately 90 seconds.
- On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL.
- Perform the A/F CONTROL operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
- Monitor the voltage output of the HO2 sensors (O2S B1S1 and OS2 B1S2) displayed on the tester.
HINT:
- The A/F CONTROL operation lowers the fuel injection volume by 12.5 % or increases the injection volume by 25 %.
- Each sensor reacts in accordance with increases and decreases in the fuel injection volume.
Standard:

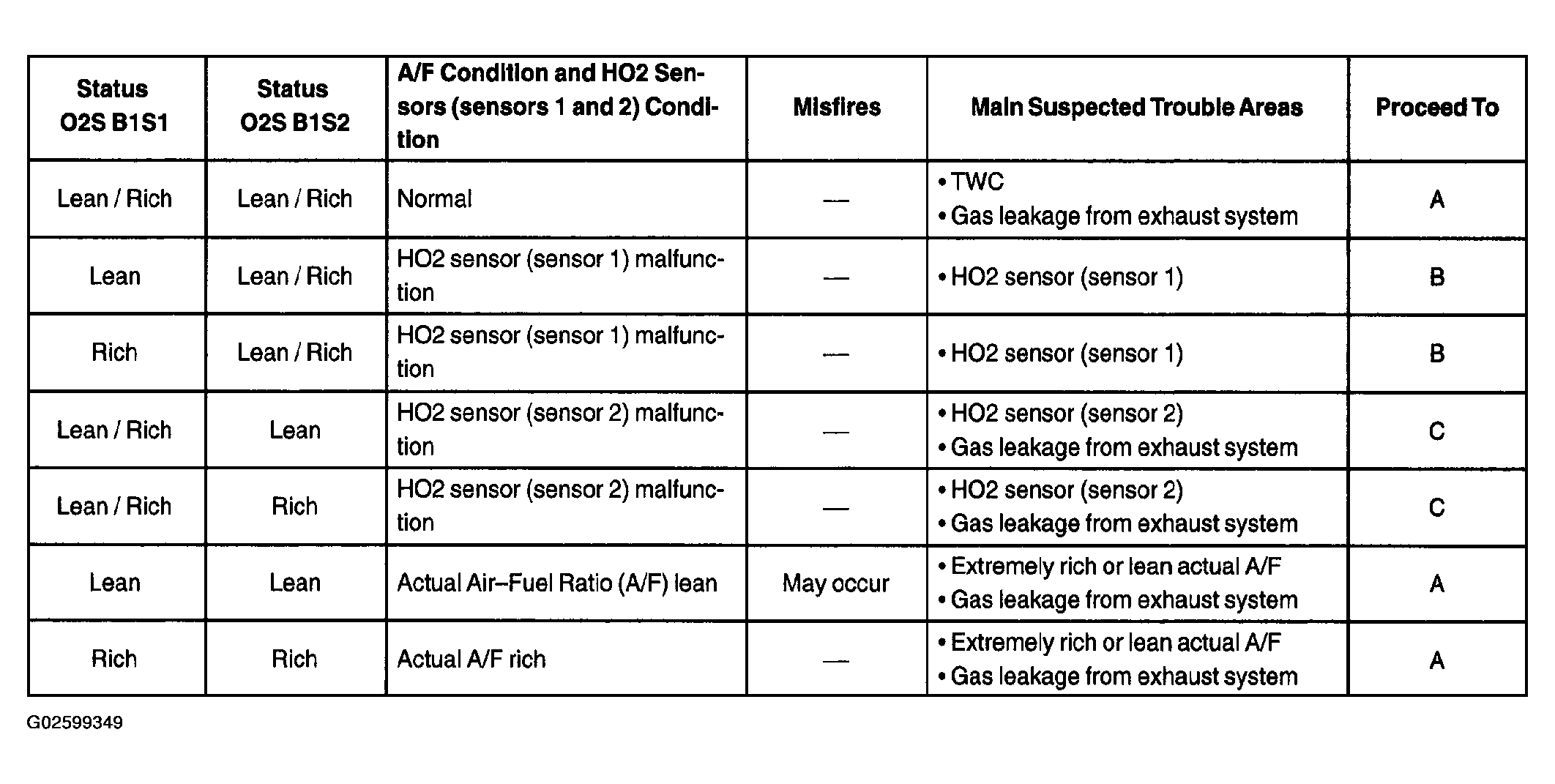

ACTIVE TESTTester Display (Sensor) Injection Volumes Status Voltages O2S B1S1 (Front HO2 Sensor) +25 % Rich More than 0.5 O2S B1S1 (Front HO2 Sensor) -12.5 % Lean Less than 0.4 O2S B1S2 (Rear HO2 Sensor) +25 % Rich More than 0.5 O2S B1S2 (Rear HO2 Sensor) -12.5 % Lean Less than 0.4 Result:
Lean: During A/F CONTROL, the HO2 sensor (sensors 1 and 2) output voltages are consistently less than 0.4 V.
Rich: During A/F CONTROL, the HO2 sensor (sensors 1 and 2) output voltages are consistently more than 0.5 V.
Lean / Rich: During A/F CONTROL, the HO2 sensor (sensors 1 and 2) output voltages alternates between more than 0.5 V and less than 0.4 V
- B: CHECK AND REPLACE HEATED OXYGEN SENSOR
- C: CHECK AND REPLACE HEATED OXYGEN SENSOR, AND CHECK AND REPAIR EXHAUST GAS LEAKAGE
- A: GO TO NEXT STEP
- CHECK FOR EXHAUST GAS LEAKAGE (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY
)
OK: No gas leakage.
- NG: REPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT
- OK: GO TO NEXT STEP
REPLACE THREE-WAY CATALYTIC CONVERTER (FRONT PIPE)
