DTC P0335, P0339: Crankshaft Position Sensor "A" Circuit/Intermittent: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

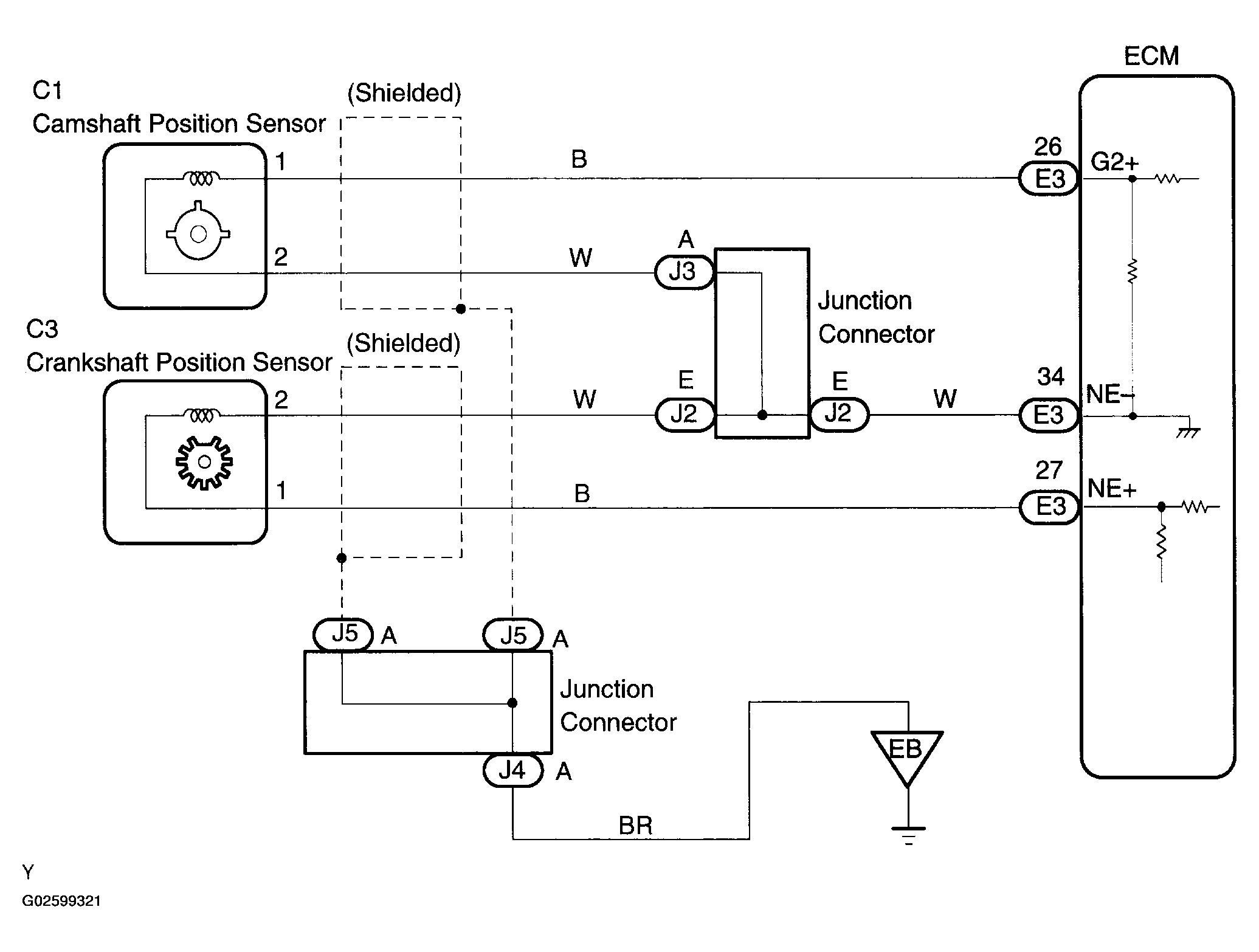

Fig 1: Wiring Diagram - Crankshaft And Camshaft Position Sensor
G02599321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
