DTC P0325, P0327, P0328: Knock Sensor 1 Circuit Low/High Input (Bank 1 Or Single Sensor): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

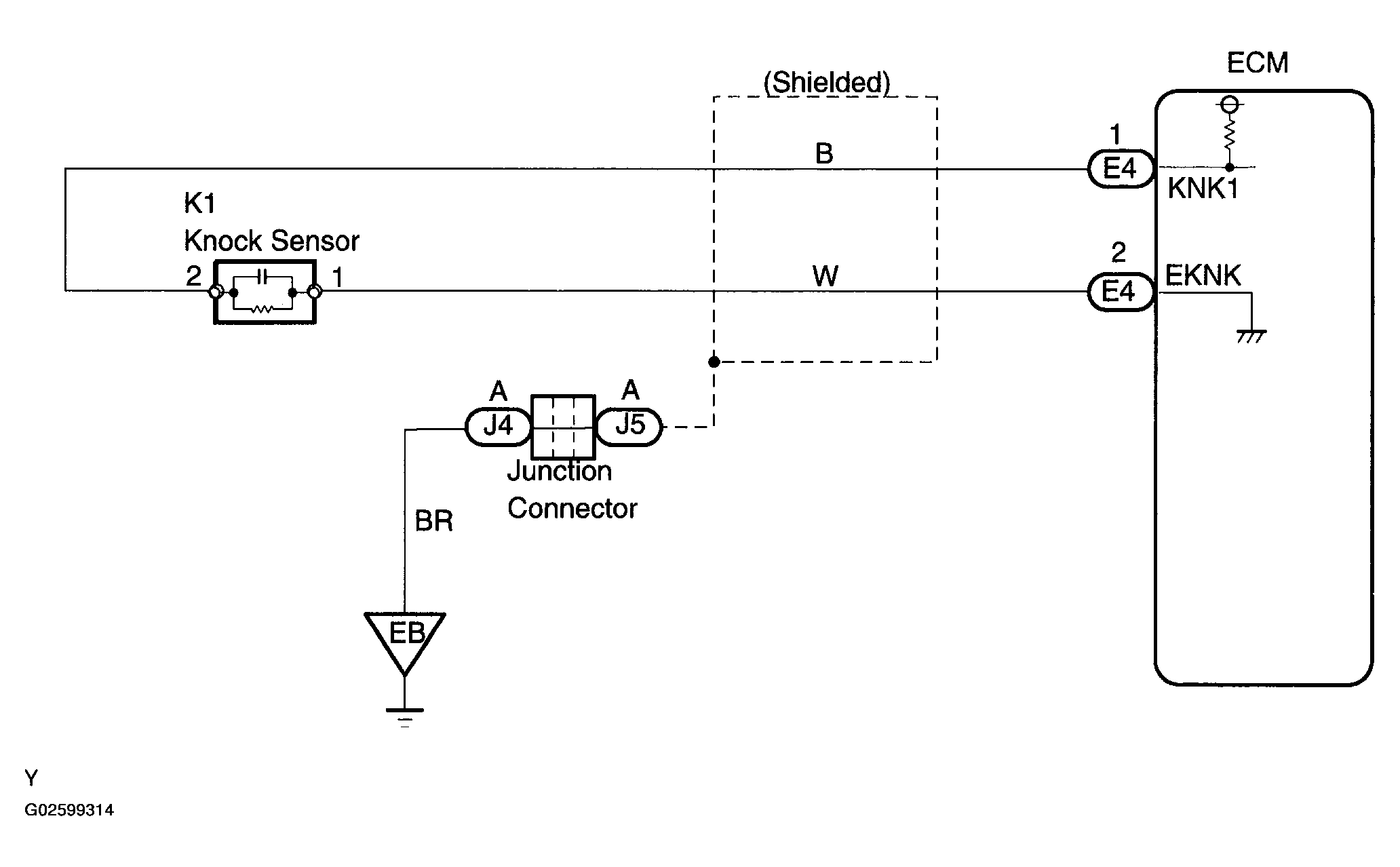

Fig 1: Wiring Diagram - Knock Sensor
G02599314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
