Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0130 OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 1), DTC P2195 OXYGEN SENSOR SIGNAL STUCK LEAN (BANK 1 SENSOR 1), DTC P2196 OXYGEN SENSOR SIGNAL STUCK RICH (BANK 1 SENSOR 1)

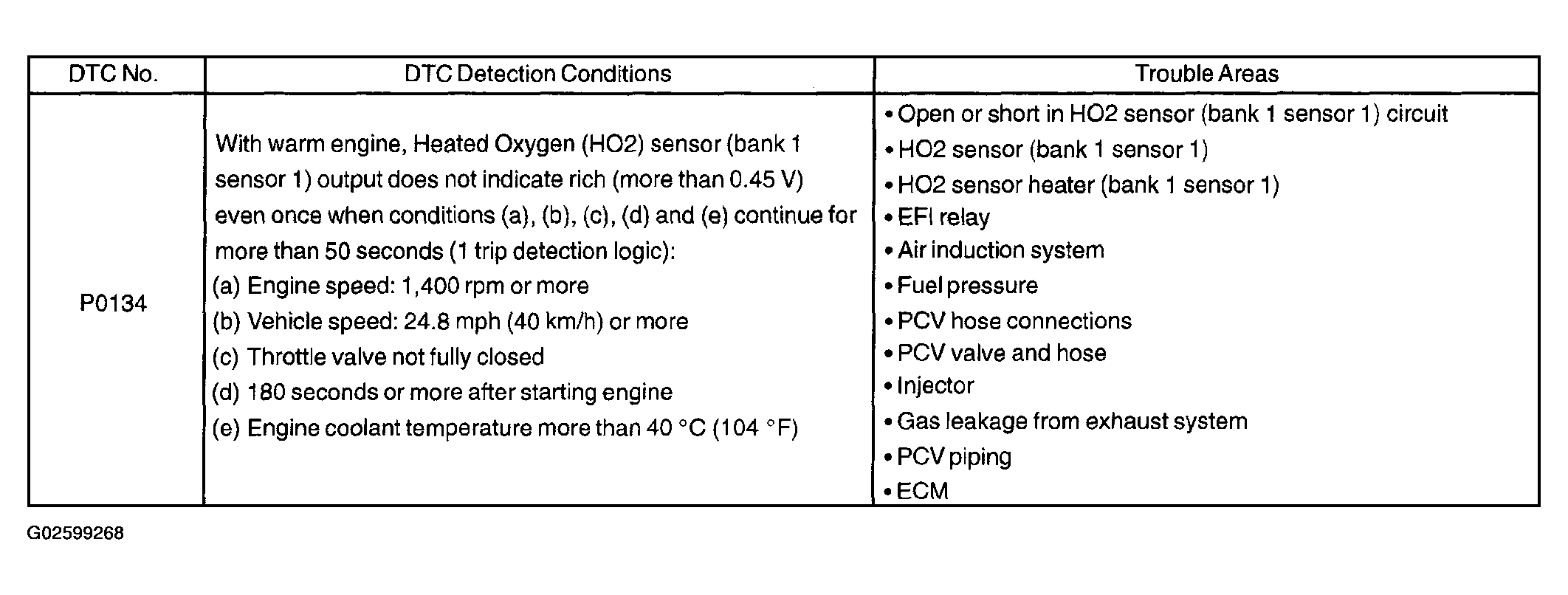

Fig 1: DTC P0134 Detection Condition Trouble Area Chart
G02599268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT: If this DTC is set, check the output voltage of the HO2 sensor (bank 1 sensor 1) by selecting the following menu items on a hand-held tester: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL.

If using an OBD II scan tool, refer to the instruction manual .
