Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

HINT:

Hand-held tester only:

Malfunctioning areas can be identified by performing the A/F CONTROL function provided in the ACTIVE TEST. The A/F CONTROL function can help to determine whether the Heated Oxygen (HO2) sensors and other potential trouble areas are malfunctioning.

The following instructions describe how to conduct the A/F CONTROL operation using a hand-held tester.

Connect a hand-held tester to the DLC3.
Start the engine and turn the tester ON.
Warm up the engine at an engine speed of 2,500 rpm for approximately 90 seconds.
On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST/A/F CONTROL.
Perform the A/F CONTROL operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
Monitor the voltage output of the HO2 sensors (O2S B1S1 and OS2 B1S2) displayed on the tester.

HINT:

The A/F CONTROL operation lowers the fuel injection volume by 12.5 % or increases the injection volume by 25 %.

Each sensor reacts in accordance with increases and decreases in the fuel injection volume.

Standard:

OXYGEN SENSOR INJECTION VOLUME AND VOLTAGE

Tester Display (Sensor)	Injection Volumes	Status	Voltages
O2SB1S1 (Front HO2 Sensor)	+25 %	Rich	More than 0.5
O2SB1S1 (Front HO2 Sensor)	-12.5%	Lean	Less than 0.4
O2SB1S2 (Rear HO2 Sensor)	+25 %	Rich	More than 0.5
O2SB1S2 (Rear HO2 Sensor)	-12.5%	Lean	Less than 0.4

NOTE: The front HO2 sensor has an output delay of a few seconds and the rear HO2 sensor has a maximum output delay of approximately 20 seconds.

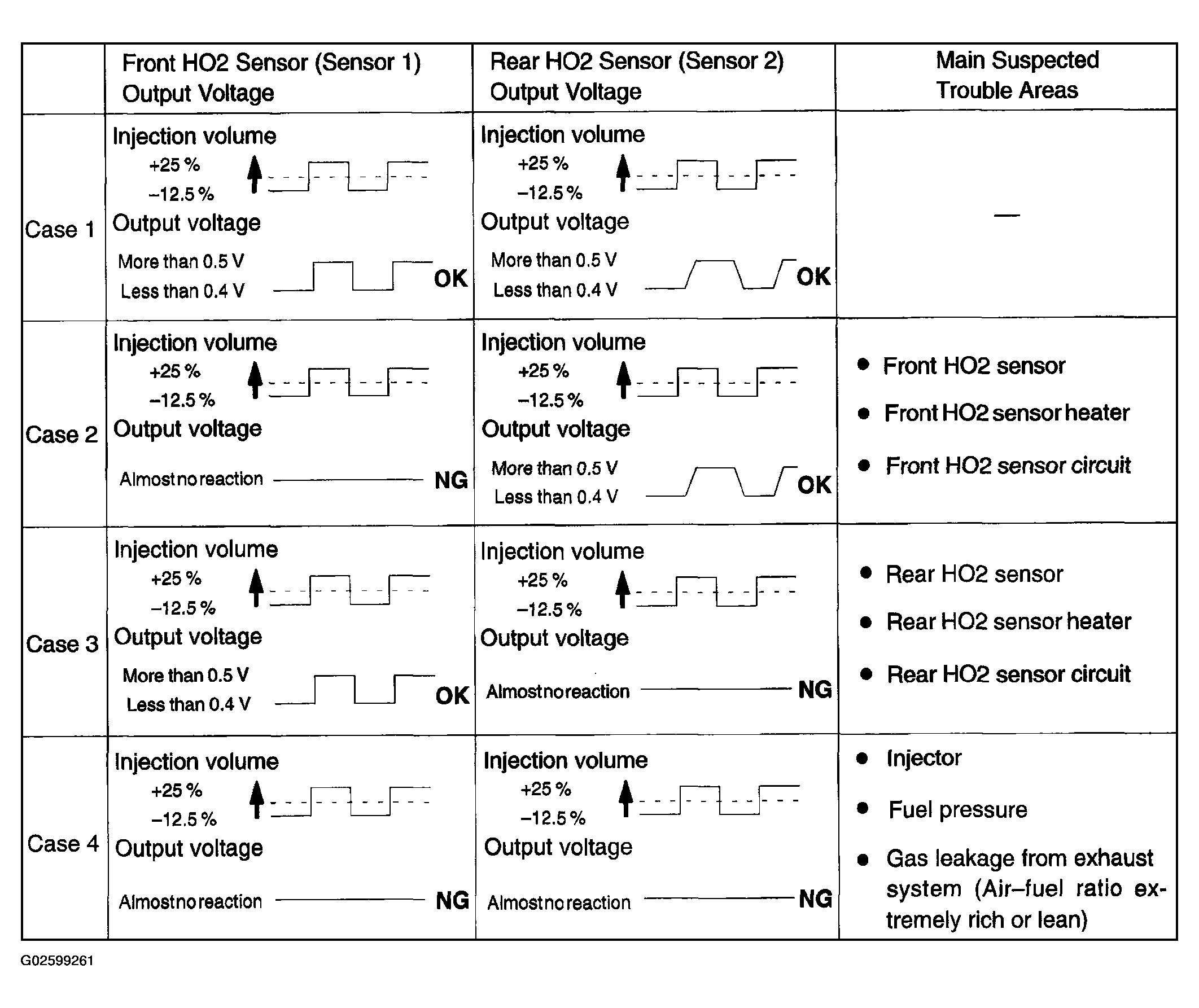

Fig 1: HO2S Sensor Output Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Following A/F CONTROL procedure enables technicians to check and graph the voltage outputs of both the front and rear HO2 sensors.
To display the graph, select the following menu items on the tester: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST/A/F CONTROL/USER DATA/AFSB1S2 and OS2B1B2, and press the YES button and then the ENTER button followed by the F4 button.

NOTE: If the vehicle is short of fuel, the air-fuel ratio becomes lean and HO2 sensor DTCs are recorded, and the ECM illuminates the MIL.

HINT:

If other DTCs relating to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
Read freeze frame data using a hand-held tester or OBD II scan tool. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
A high HO2 sensor (sensor 1) voltage (0.5 V or more) could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.
A low HO2 sensor (sensor 1) voltage (0.4 V or less) could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0133)

Connect a hand-held tester or OBD II scan tool to the DLC3.
Turn the ignition switch to ON.
Turn the tester or scan tool ON.
On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
Read DTCs.

If using an OBD II scan tool, refer to the instruction manual ..

Result:

DTC OUTPUT RESULT

Display (DTC output)	Proceed To
P0133	A
P0133 and other DTCs	B

HINT: If any DTCs other than P0133 are output, troubleshoot those DTCs first.

B: GO TO DIAGNOSTIC TROUBLE CODE CHART
A: GO TO NEXT STEP

READ VALUE USING HAND-HELD TESTER OR OBD II SCAN TOOL (HEATED OXYGEN SENSOR DURING IDLING)
1. Connect the hand-held tester or OBD II scan tool to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the tester or scan tool ON.
4. Start the engine.
5. On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL /O2S B1S1.
6. Warm up the Heated Oxygen (HO2) sensor at an engine speed of 2,500 rpm for approximately 90 seconds.
7. Read the voltage output of the front HO2 sensor displayed on the tester, while the engine is idling.
8. If using an OBD II scan tool, refer to the instruction manual .
  Standard: Fluctuates between less than 0.35 V and more than 0.45 V, and period t must last for less than 0.6 seconds (refer to table below).

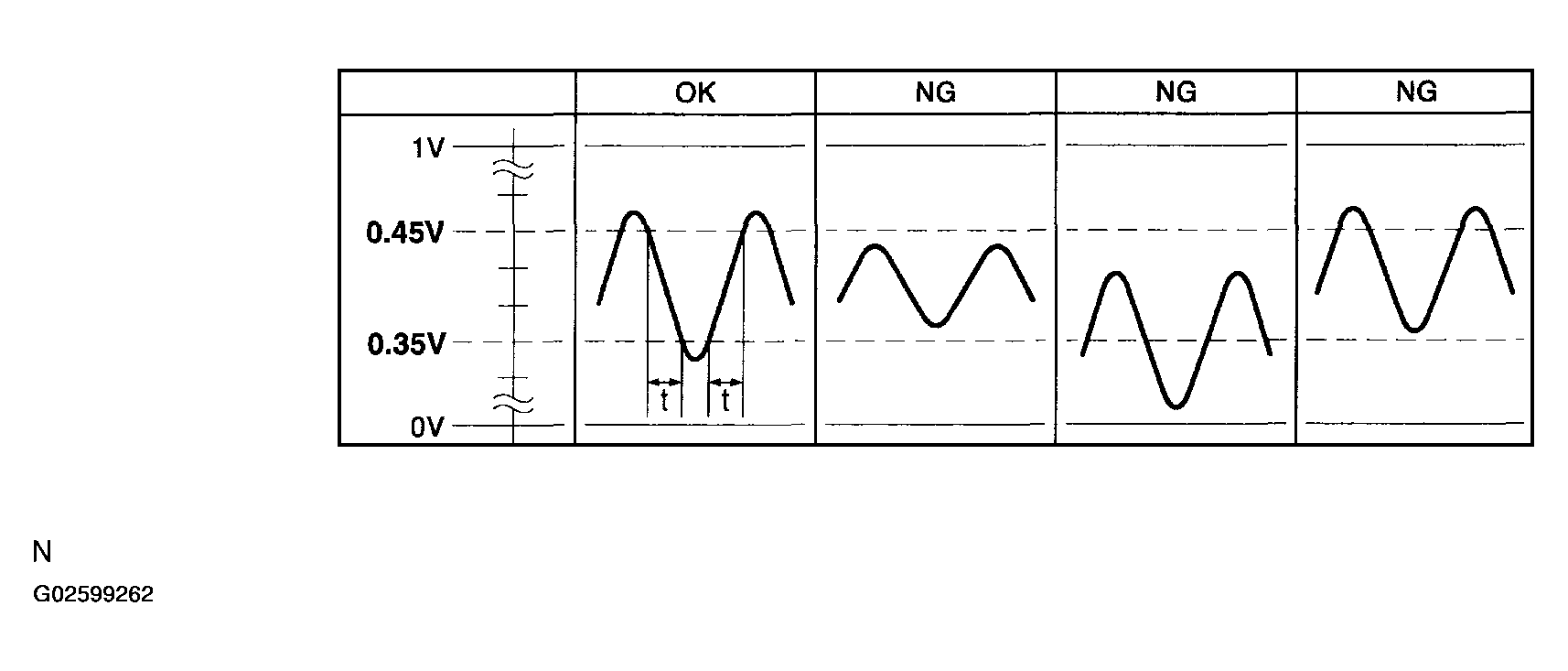

  Fig 2: Identifying Heated Oxygen Sensor Voltage Fluctuation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Go to step 9
2. NG: GO TO NEXT STEP

INSPECT HEATED OXYGEN SENSOR (HEATER RESISTANCE)

Disconnect the H5 HO2 sensor connector.

Measure the resistance between the terminals of the HO2 sensor connector.

Standard:

HEATED OXYGEN SENSOR (HEATER RESISTANCE)

Tester Connections	Specified Conditions
HT (H5-2)-+B (H5-1)	Between 5 Ω and 10 Ω at 20°C (68°F)
HT (H5-2) - E (H5-3)	10 kΩ or higher

Reconnect the HO2 sensor connector.

Fig 3: Identifying Terminals Of H5 Heated Oxygen Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE HEATED OXYGEN SENSOR
OK: GO TO NEXT STEP

INSPECT EFI RELAY

Remove the EFI relay from the engine room R/B.

Check the EFI relay resistance.

Standard:

EFI RELAY RESISTANCE

Tester Connections	Specified Conditions
3-5	10 kΩ or higher
3-5	Below 1Ω (When battery voltage applied to terminals 1 and 2)

Reinstall the EFI relay.

Fig 4: Inspecting EFI Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE EFI RELAY
OK: GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (HEATED OXYGEN SENSOR - ECM)

Disconnect the H5 HO2 sensor connector.
Disconnect the E4 ECM connector.

Check the resistance.

Standard (Check for open):

HEATED OXYGEN SENSOR - ECM RESISTANCE (CHECK FOR OPEN)

Tester Connections	Specified Conditions
HT (H5-2)-HT1A (E4-6)	Below 1Ω
OX (H5-4) - OX1A (E4-22)	Below 1Ω

Standard (Check for short):

HEATED OXYGEN SENSOR - ECM RESISTANCE (CHECK FOR SHORT)

Tester Connections	Specified Conditions
HT (H5-2) or HT1A (E4-6) - Body ground	10 kΩ or higher
OX (H5-4) or OX1A (E4-22) - Body ground	10 kΩ or higher

Fig 5: Identifying Terminals Of H5 Heated Oxygen Sensor

Reconnect the ECM connector.
Reconnect the HO2 sensor connector.

Fig 6: Disconnecting E4 ECM Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

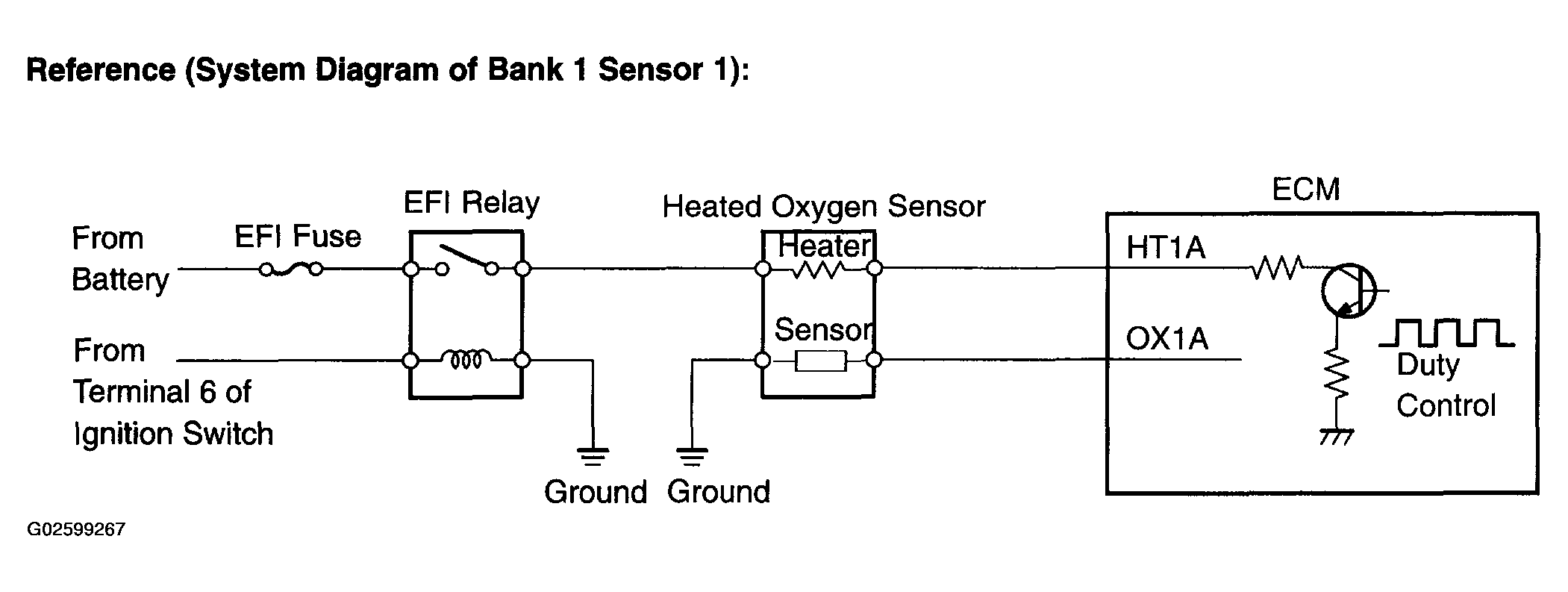

Fig 7: Bank 1 Sensor 1 System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: GO TO NEXT STEP

CHECK AIR INDUCTION SYSTEM
1. Check the air induction system for vacuum leaks.
  OK: No leakage from air induction system.
1. NG: REPAIR OR REPLACE AIR INDUCTION SYSTEM
2. OK: GO TO NEXT STEP
CHECK FUEL PRESSURE (See ON-VEHICLE INSPECTION )
1. Check the fuel pressure (high or low pressure).
1. NG: REPAIR OR REPLACE FUEL SYSTEM
2. OK: GO TO NEXT STEP
INSPECT FUEL INJECTOR ASSY (INJECTION AND VOLUME) (See INSPECTION )
1. NG: REPLACE FUEL INJECTOR ASSY
2. OK: GO TO NEXT STEP
  REPLACE HEATED OXYGEN SENSOR
PERFORM CONFIRMATION DRIVING PATTERN (See READINESS MONITOR DRIVE PATTERN )
NEXT: GO TO NEXT STEP

CHECK WHETHER DTC OUTPUT RECURS (DTC P0133)

Read DTCs using the hand-held tester or OBD II scan tool.
If using a hand-held tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.

If using an OBD II scan tool, refer to the instruction manual .

Result:

DTC OUTPUT RESULT

Display (DTC output)	Proceed To
P0133	A
No output	B

B: CHECK FOR INTERMITTENT PROBLEMS
A: GO TO NEXT STEP
REPLACE HEATED OXYGEN SENSOR
