Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0130 OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 1), DTC P2195 OXYGEN SENSOR SIGNAL STUCK LEAN (BANK 1 SENSOR 1), DTC P2196 OXYGEN SENSOR SIGNAL STUCK RICH (BANK 1 SENSOR 1) .

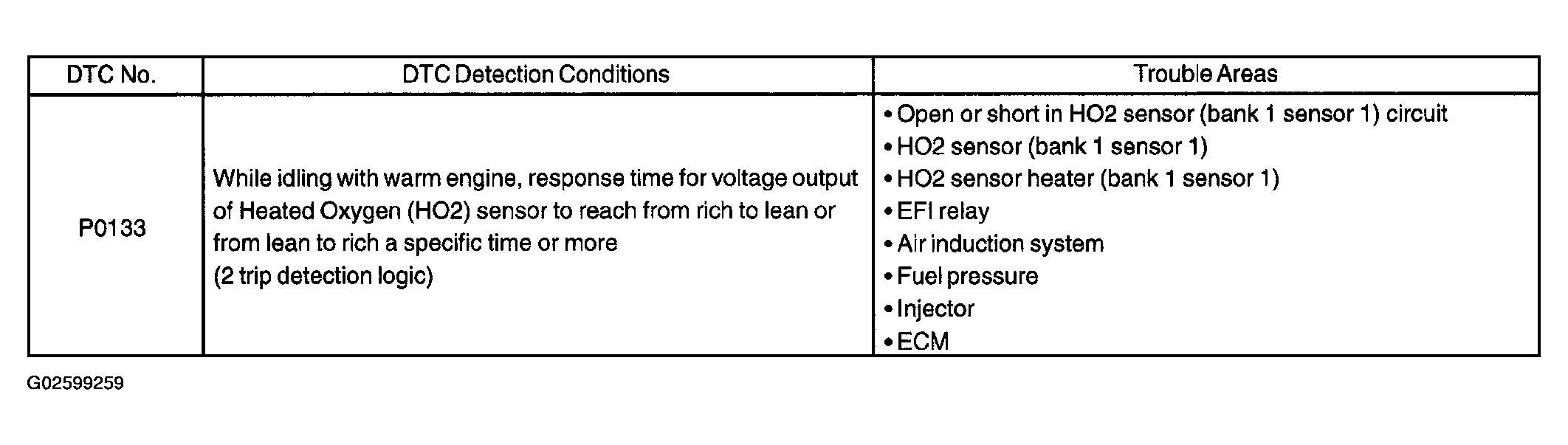

Fig 1: DTC P0133 Detection Condition Trouble Area Chart

G02599259

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Sensor 1 refers to the sensor mounted in front of the Three-Way Catalytic Converter (TWC), located near the engine assembly.
Sensor 2 refers to the sensor mounted behind the TWC, located far from the engine assembly.
