- INSPECT THROTTLE POSITION SENSOR
- Disconnect the T1 Throttle Position (TP) sensor connector.
- Measure the resistance between the terminals of the TP sensor.
Standard:
THROTTLE POSITION SENSOR RESISTANCETester Connections Throttle Valve Positions Specified Conditions VC (T1-2)-E2 (T1-1) Between 2.5 kΩ and 5.9 kΩ VTA (T1-3)-E2 (T1-1) Fully closed Between 0.2 kΩ and 5.7 kΩ VTA (T1-3)-E2 (T1-1) Fully open Between 2.0 kΩ and 10.2 kΩ - Reconnect the TP sensor connector.
- NG: REPLACE THROTTLE POSITION SENSOR
- OK: GO TO NEXT STEP

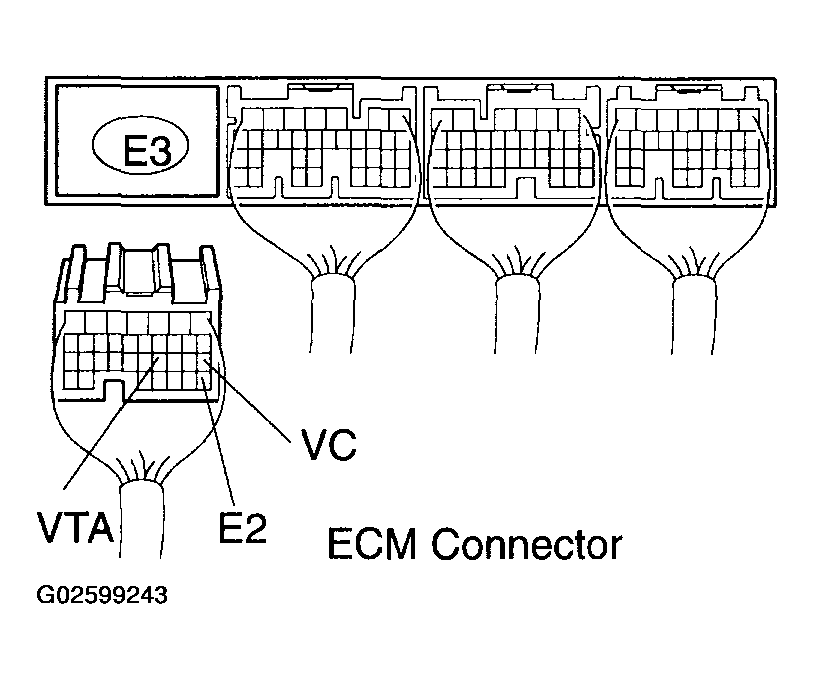

- CHECK HARNESS AND CONNECTOR (THROTTLE POSITION SENSOR - ECM)
- Disconnect the E3 ECM connector.
- Measure the resistance between the terminals of the E3 ECM connector.
Standard:
THROTTLE POSITION SENSOR - ECM RESISTANCETester Connections Throttle Valve Positions Specified Conditions VC (E3-18)-E2 (E3-28) Between 2.5 kΩ and 5.9 kΩ VTA (E3-21)-E2 (E3-28) Fully closed Between 0.2 kΩ and 5.7 kΩ VTA (E3-21)-E2 (E3-28) Fully open Between 2.0 kΩ and 10.2 kΩ - Check the resistance.
Standard (Check for short):
THROTTLE POSITION SENSOR - ECM RESISTANCE (CHECK FOR SHORT)Tester Connections Specified Conditions VC (E3-18) - Body ground 10 kΩ or higher VTA (E3-28) - Body ground 10 kΩ or higher - Reconnect the ECM connector.
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: GO TO NEXT STEP
REPLACE ECM (See ECM (1ZZ-FE/2ZZ-GE) REPLACEMENT )
