Hand-held tester:: Notes

WARNING: This page is about a different variant/trim than selected.
  1. READ VALUE USING HAND-HELD TESTER (THROTTLE VALVE OPENING PERCENTAGE)
    1. Connect a hand-held tester to the DLC3.
    2. Turn the ignition switch to ON and turn the tester ON
    3. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST/ ETCS /THROTTLE POS.
    4. Read the value displayed on the tester when the accelerator pedal is released and depressed.

      Result:

      THROTTLE VALVE OPENING ANGLE

      Throttle Valve Opening Angle (%) Proceed To
      0 (constant) A
      From approximately 0 to 75 B
      Approximately 100 (constant) C
      Fig 1: Depressing/Releasing Accelerator Pedal
      G02599236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B:  CHECK FOR INTERMITTENT PROBLEMS
    2. C: Go to step   4
    3. A: GO TO NEXT STEP
  2. INSPECT THROTTLE POSITION SENSOR
    1. Disconnect the T1 Throttle Position (TP) sensor connector.
    2. Measure the resistance between the terminals of the TP sensor.

      Standard:

      THROTTLE POSITION SENSOR RESISTANCE

      Tester Connections Throttle Valve Positions Specified Conditions
      VC (T1-2)-E2 (T1-1)   Between 2.5 kΩ and 5.9 kΩ
      VTA (T1-3)-E2 (T1-1) Fully closed Between 0.2 kΩ and 5.7 kΩ
      VTA (T1-3)-E2 (T1-1) Fully open Between 2.0 kΩ and 10.2 kΩ
    3. Reconnect the TP sensor connector.
      Fig 2: Identifying Terminals Of T1 Throttle Position Sensor Connector
      G02599237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE THROTTLE POSITION SENSOR
    2. OK: GO TO NEXT STEP
  3. CHECK HARNESS AND CONNECTOR (ECM - THROTTLE POSITION SENSOR)
    1. Disconnect the E3 ECM connector.
    2. Measure the resistance between the terminals of the ECM connector.

      Standard:

      ECM - THROTTLE POSITION SENSOR RESISTANCE

      Tester Connections Throttle Valve Positions Specified Conditions
      VC (E3-18)-E2 (E3-28)   Between 2.5 kΩ and 5.9 kΩ
      VTA (E3-21)-E2 (E3-28) Fully closed Between 0.2 kΩ and 5.7 kΩ
      VTA (E3-21)-E2 (E3-28) Fully open Between 2.0 kΩ and 10.2 kΩ

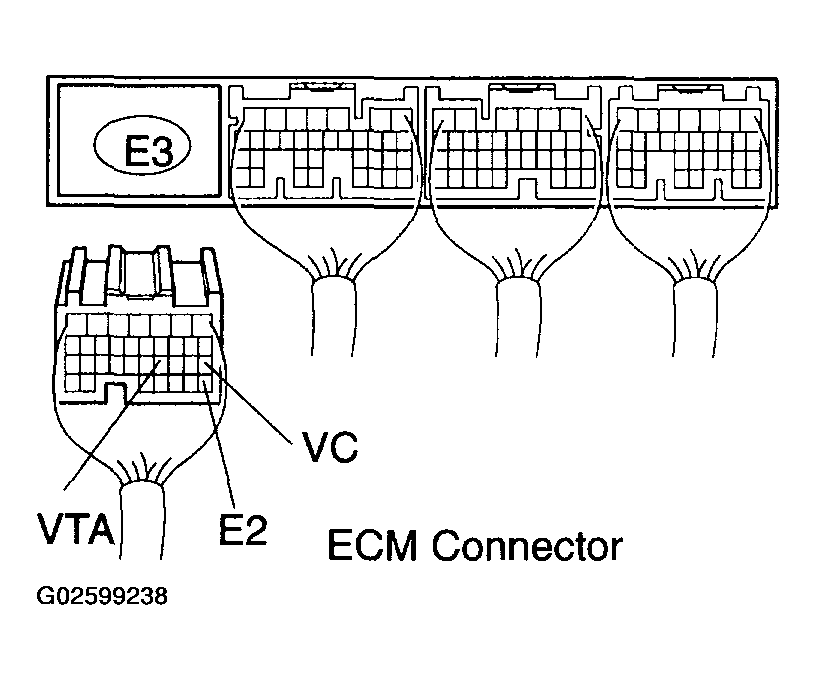

      Fig 3: Disconnecting E3 ECM Connector
      G02599238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the resistance.

      Standard (Check for short):

      ECM - THROTTLE POSITION SENSOR RESISTANCE (CHECK FOR SHORT)

      Tester Connections Specified Conditions
      VC (E3-18)-Body ground 10 kΩ or higher
      VTA (E3-28)-Body ground 10 kΩ or higher
    4. Reconnect the ECM connector.
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP

      REPLACE ECM (See  ECM (1ZZ-FE/2ZZ-GE) REPLACEMENT  )

  4. INSPECT THROTTLE POSITION SENSOR
    1. Disconnect the T1 TP sensor connector.
    2. Measure the resistance between the terminals of the TP sensor.

      Standard:

      THROTTLE POSITION SENSOR RESISTANCE

      Tester Connections Throttle Valve Positions Specified Conditions
      VC (T1-2)-E2 (T1-1)   Between 2.5 kΩ and 5.9 kΩ
      VTA (T1-3)-E2 (T1-1) Fully closed Between 0.2 kΩ and 5.7 kΩ
      VTA (T1-3)-E2 (T1-1) Fully open Between 2.0 kΩ and 10.2 kΩ
    3. Reconnect the TP sensor connector.
      Fig 4: Identifying Terminals Of T1 TP Sensor Connector
      G02599239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE THROTTLE POSITION SENSOR
    2. OK: GO TO NEXT STEP
  5. CHECK HARNESS AND CONNECTOR (ECM - THROTTLE POSITION SENSOR)
    1. Disconnect the E3 ECM connector.
    2. Disconnect the T1 TP sensor connector.
    3. Check the resistance.

      Standard (Check for open):

      ECM - THROTTLE POSITION SENSOR RESISTANCE (CHECK FOR OPEN)

      Tester Connections Specified conditions
      VC (T1-2)-VC (E3-18) Below 1Ω
      VTA (T1-3)-VTA (E3-21) Below 1Ω
      E2 (T1-1)-E2 (E3-28) Below 1Ω

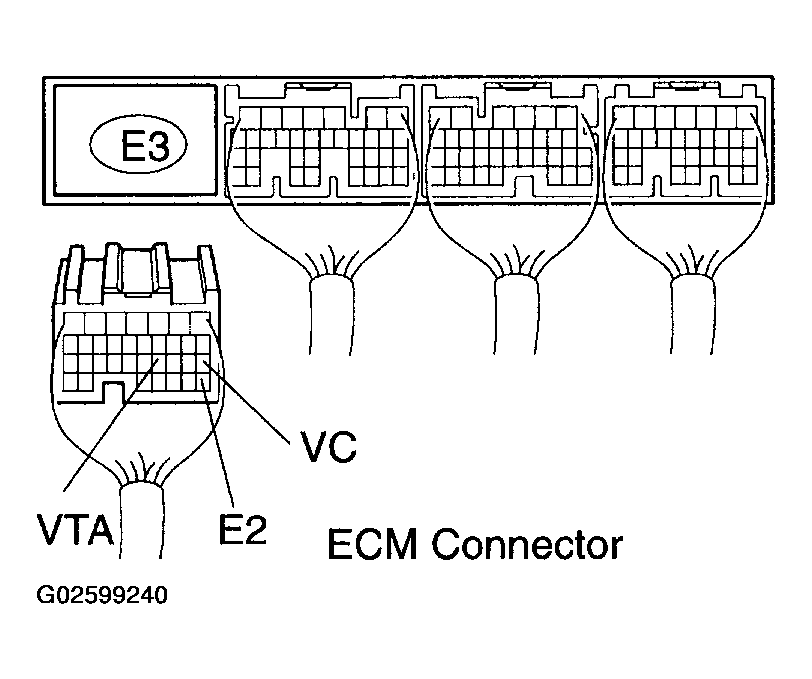

      Fig 5: Disconnecting E3 ECM Connector
      G02599240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Check for short):

      ECM - THROTTLE POSITION SENSOR RESISTANCE (CHECK FOR SHORT)

      Tester Connections Specified Conditions
      VC (T1-2) or VC (E3-18)-Body ground 10 kΩ or higher
      VTA (T1-3) or VTA (E3-21)-Body ground 10 kΩ or higher
    4. Reconnect the TP sensor connector.
    5. Reconnect the ECM connector.
      Fig 6: Identifying Terminals Of T1 TP Sensor Connector
      G02599241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP

      REPLACE ECM (See  ECM (1ZZ-FE/2ZZ-GE) REPLACEMENT  )
