DTC P0110, P0112, P0113: Intake Air Temperature Circuit Low/High Input: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

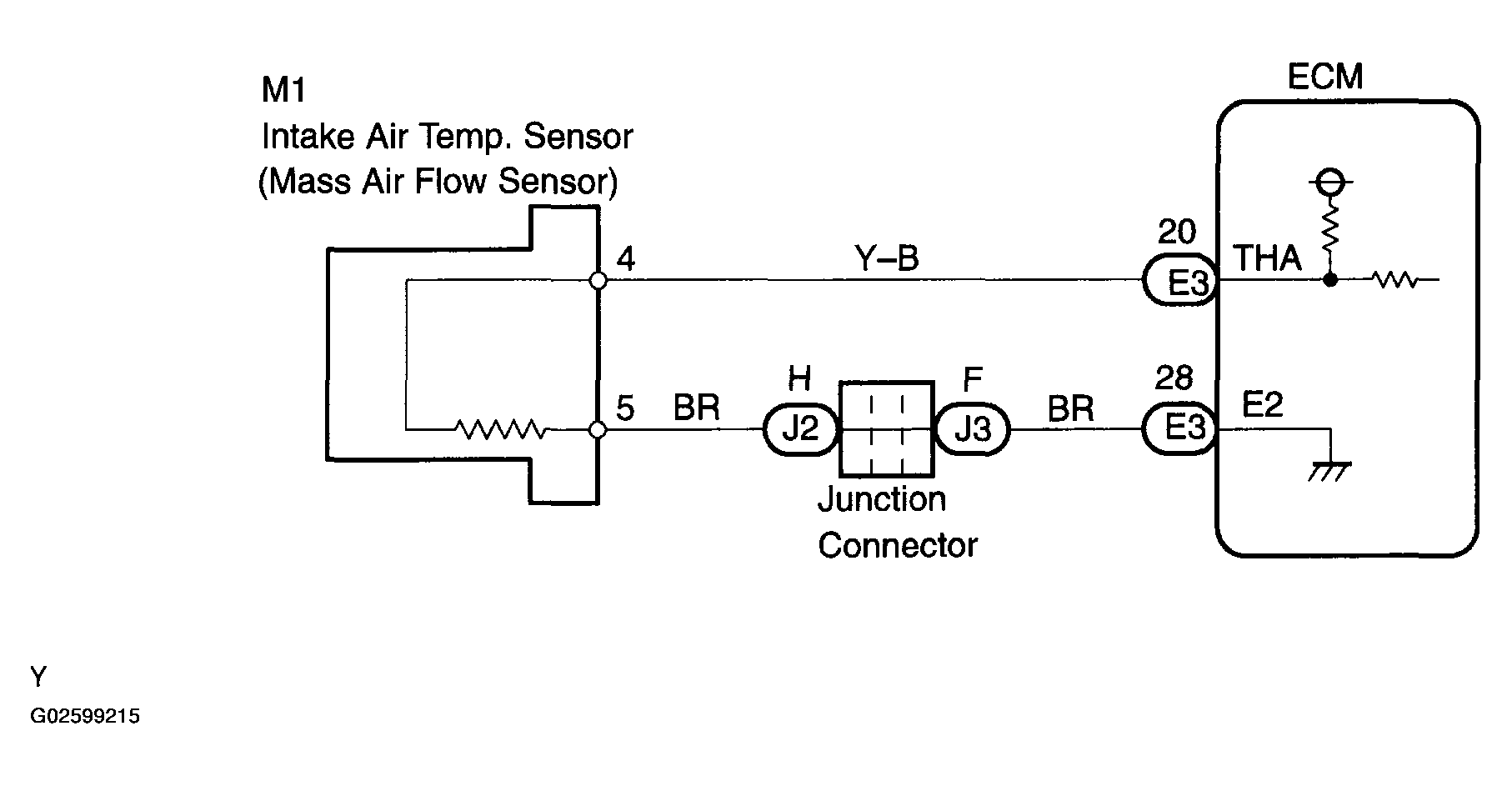

Fig 1: Wiring Diagram - Intake Air Temperature Sensor
G02599215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
