Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0100 MASS OR VOLUME AIR FLOW CIRCUIT, DTC P0102 MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT, DTC P0103 MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT .

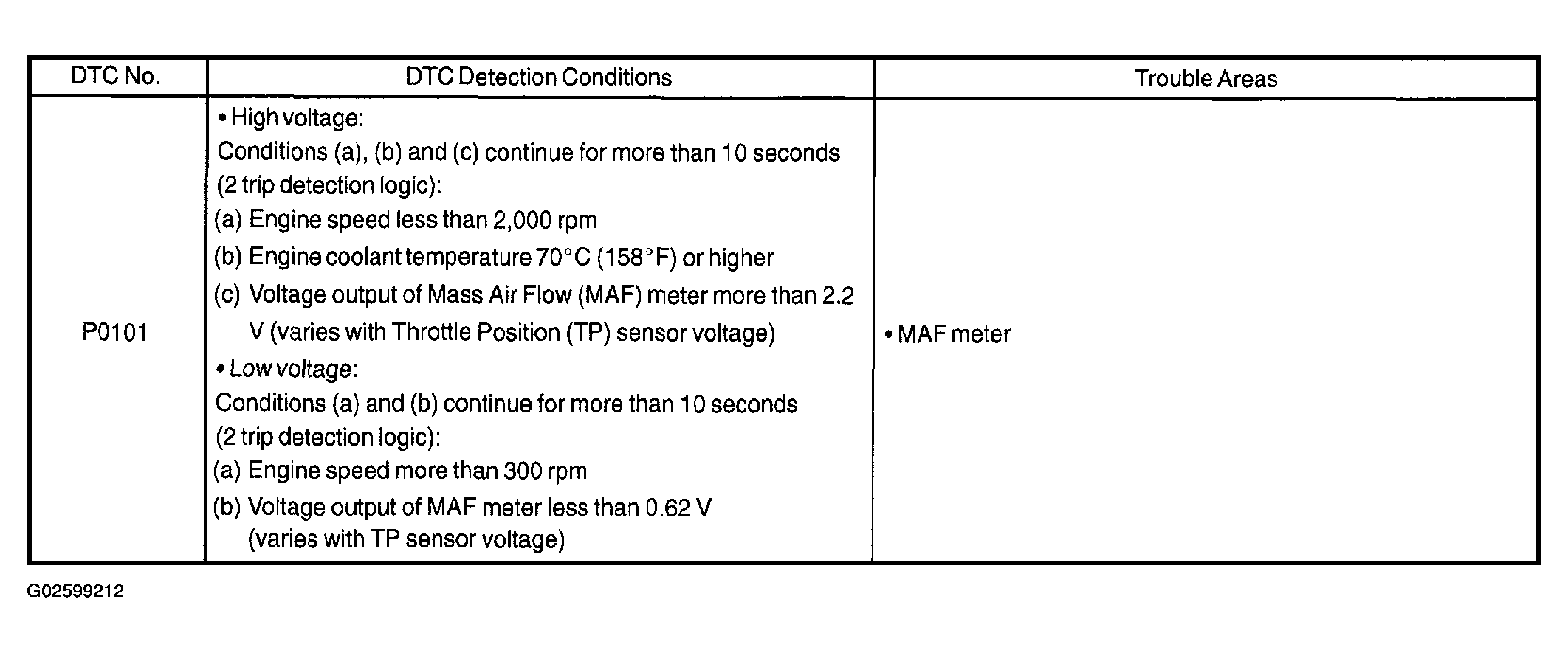

Fig 1: DTC P0101 Detection Condition Trouble Area Chart
G02599212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
