Section 1 (Engine Control System (SFI) (2ZZ-GE) - Diagnostics)
>>
DTC P0100, P0102, P0103: Mass Or Volume Air Flow Circuit Low/High Input
>>
Wiring Diagram
DTC P0100, P0102, P0103: Mass Or Volume Air Flow Circuit Low/High Input: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

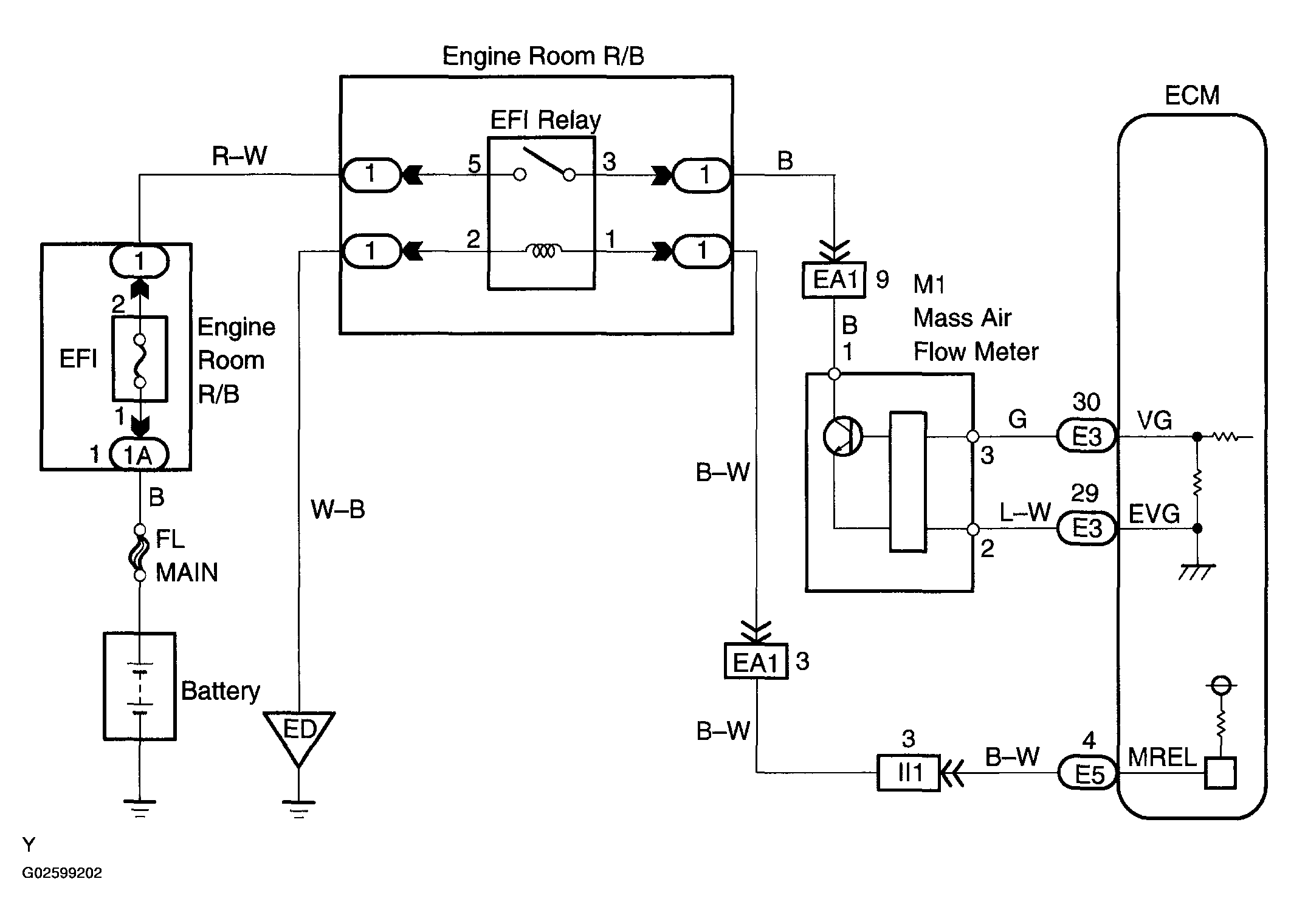

Fig 1: Wiring Diagram - Mass Or Volume Air Flow Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
