Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0010 CAMSHAFT POSITION "A" ACTUATOR CIRCUIT (BANK 1) .

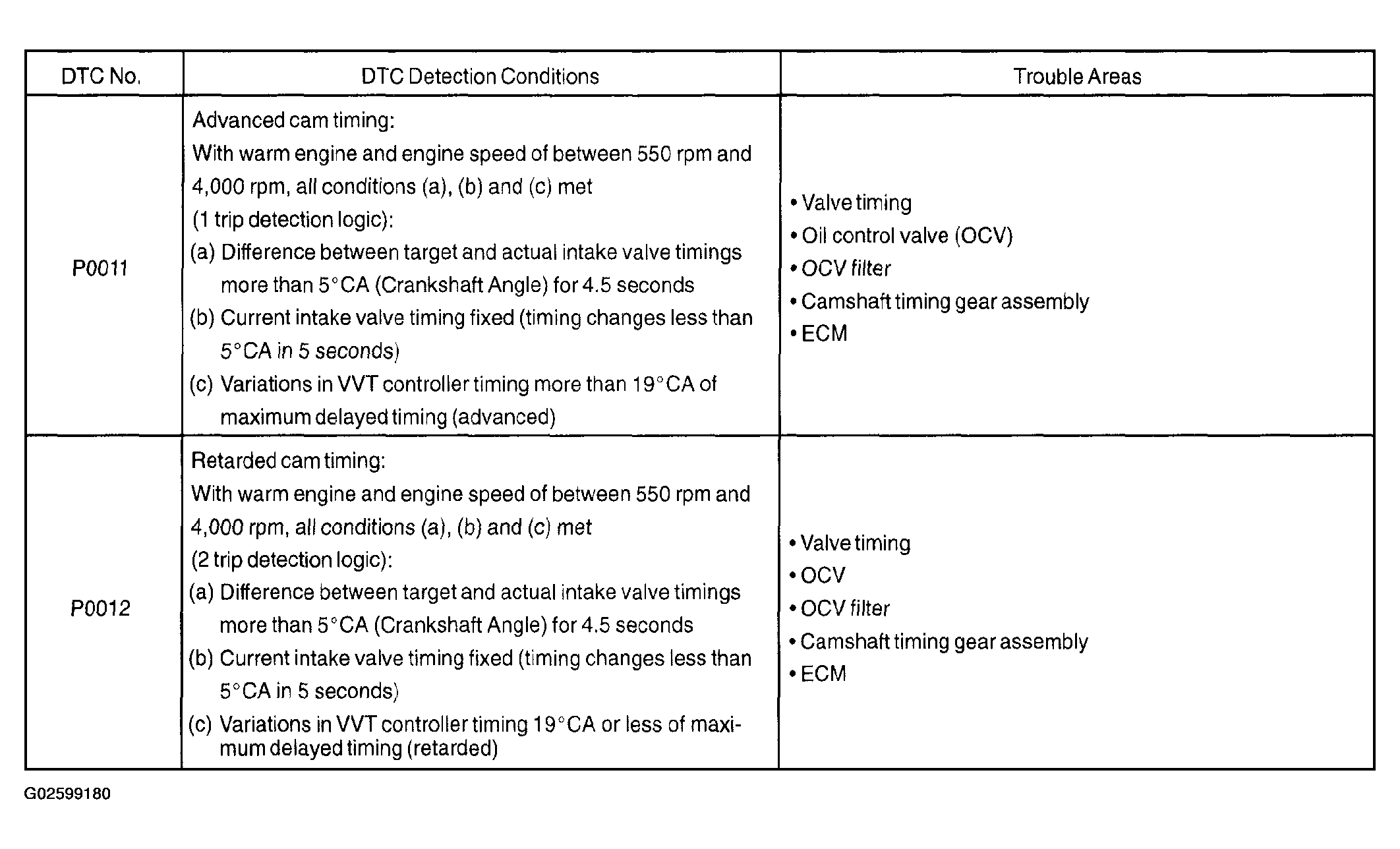

Fig 1: DTC P0011, P0012 Detection Condition Trouble Area Chart
G02599180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
