DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

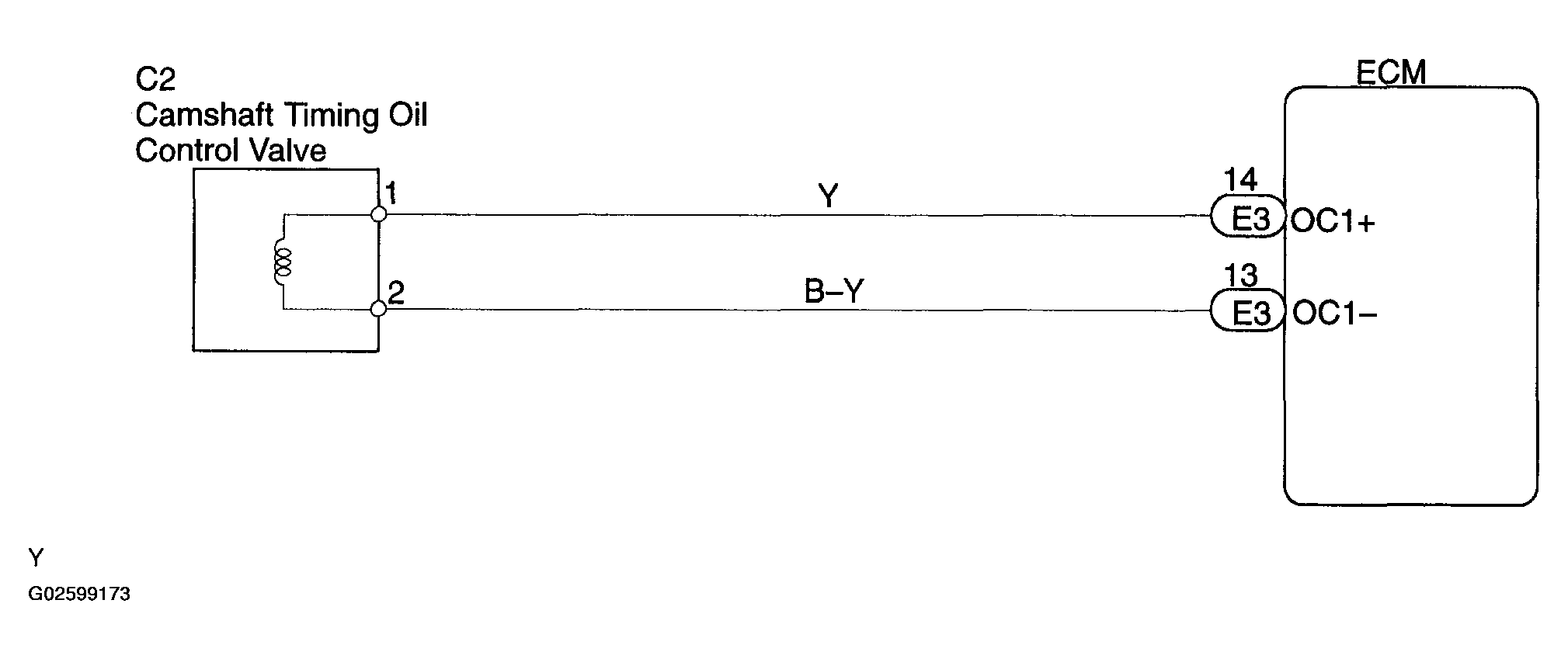

Fig 1: Wiring Diagram - Camshaft Timing Oil Control Valve
G02599173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
