Air Switching Valve ASSY (2ZZ-GE): Replacement

1. Unfasten the 3 clips, then remove the wire harness protector.

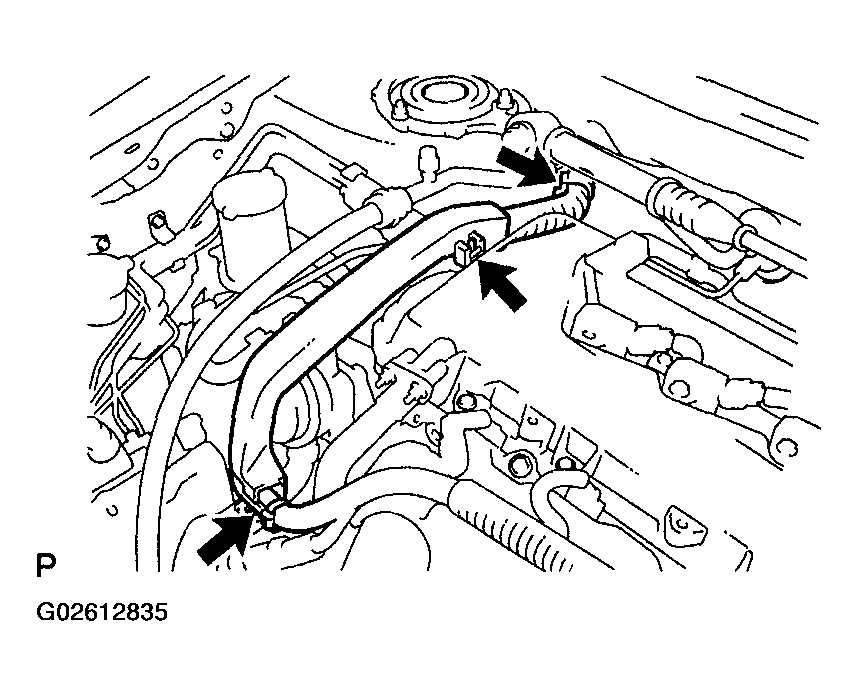

   Fig 1: Unfastening 3 Clips and Wire Harness Protector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts, then remove the cooler refrigerant suction hose No. 1.

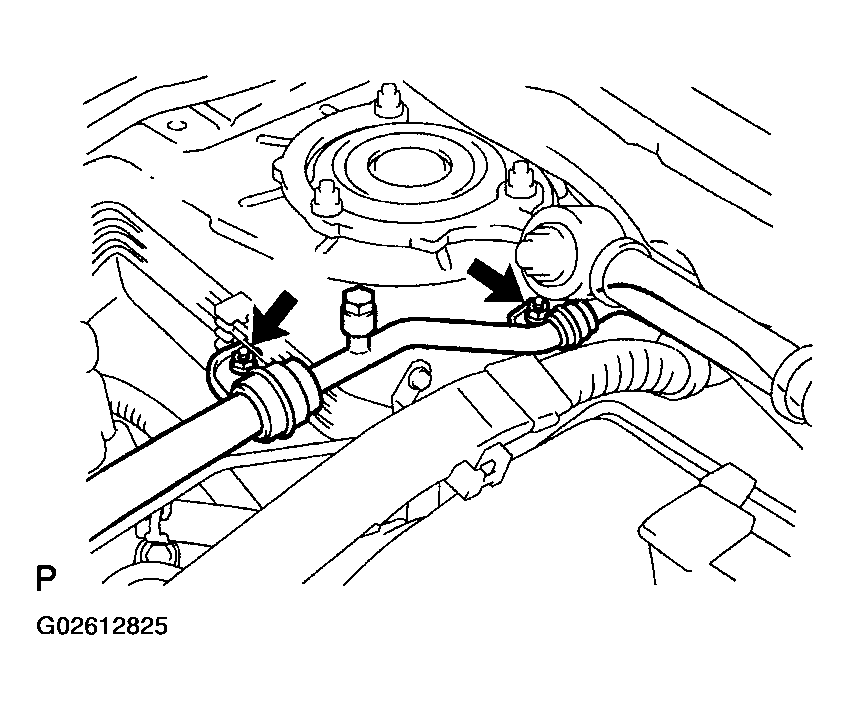

   Fig 2: Removing Cooler Refrigerant Suction Hose No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the air injection system No. 6 hose.
4. Disconnect the vacuum hose.
5. Disconnect the pressure sensor (turbo pressure sensor) connector.

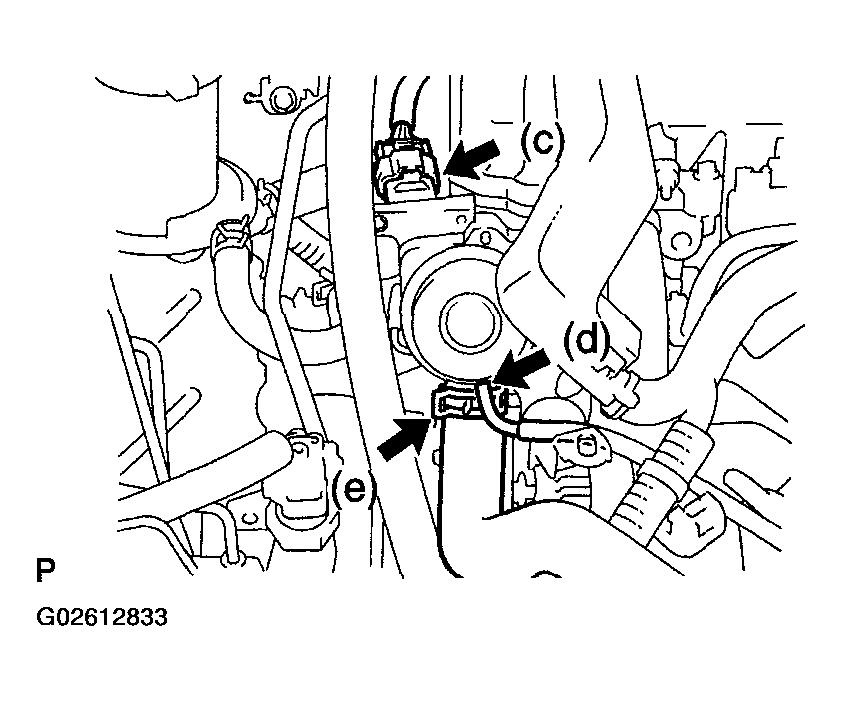

   Fig 3: Disconnecting Pressure Sensor (Turbo Pressure Sensor) Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 bolts.
7. Disconnect the air injection system No. 1 hose, then remove the air switching valve.

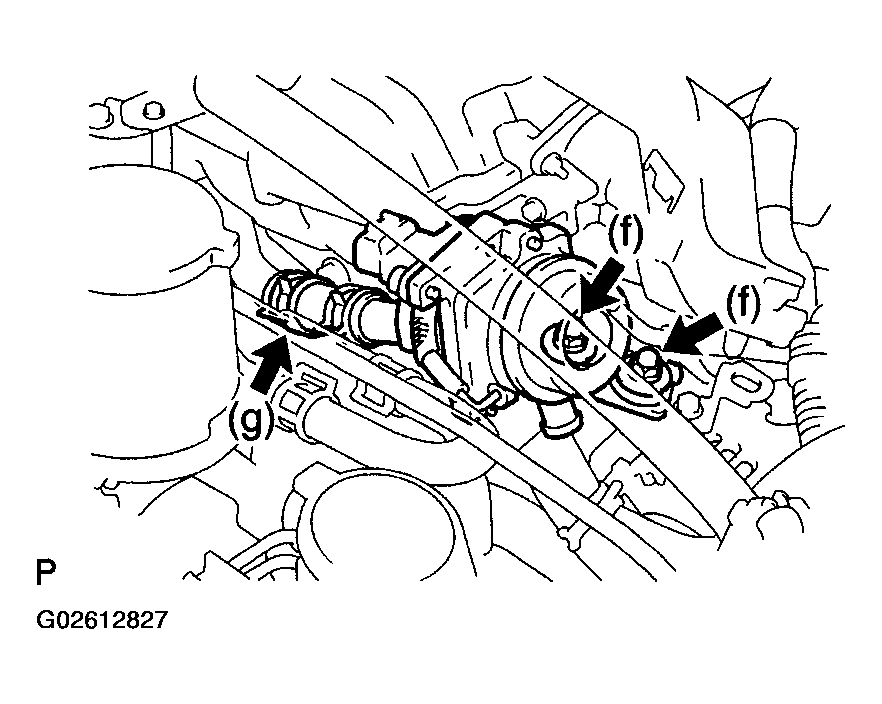

Fig 4: Disconnecting Air Injection System No. 1 Hose And Air Switching Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the vacuum hose from the air switching valve.
2. Remove the 2 bolts, then remove the pressure sensor (turbo pressure sensor).

Fig 5: Removing Bolts And Pressure Sensor (Turbo Pressure Sensor)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts, then remove the air switching valve bracket and gasket.

Fig 6: Removing Bolts And Air Switching Valve Bracket And Gasket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new gasket and the air switching valve bracket with the 2 bolts.

   Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

Fig 7: Installing New Gasket And Air Switching Valve Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the pressure sensor (turbo pressure sensor) with the 2 bolts.

   Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

2. Connect the vacuum hose to the air switching valve.

Fig 8: Installing Pressure Sensor (Turbo Pressure Sensor)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the air injection system No. 1 hose.
2. Install the air switching valve with the 2 bolts.

   Torque: 21 N.m (209 kgf.cm, 15 ft.lbf)

   Fig 9: Installing Air Switching Valve

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the turbo pressure sensor (turbo pressure sensor) connector.
4. Connect the vacuum hose.
5. Connect the air injection system No. 6 hose.
   Fig 10: Connecting Air Injection System No. 6 Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the cooler refrigerant suction hose No. 1 with the 2 nuts.

   Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

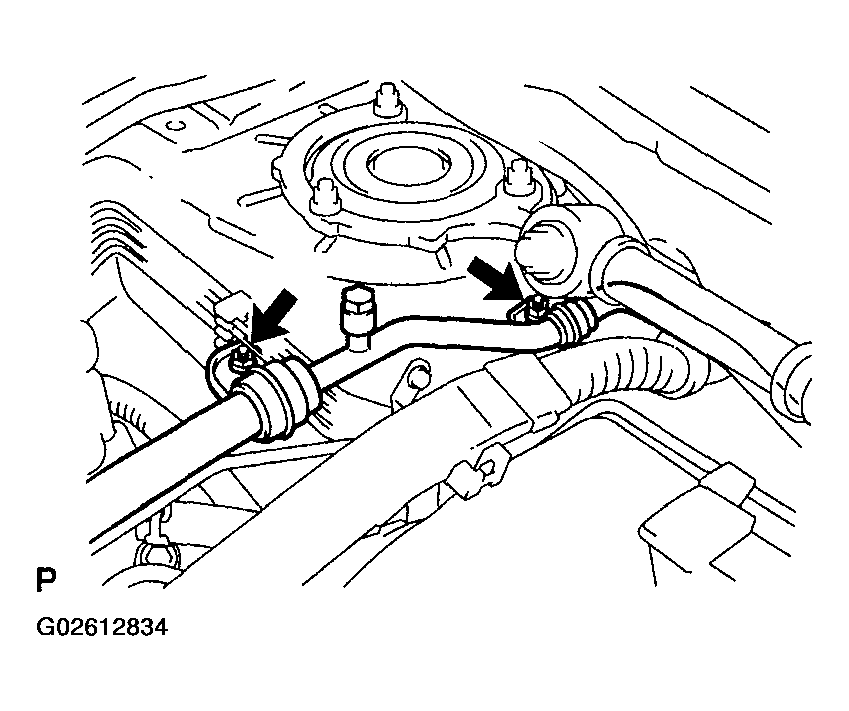

   Fig 11: Installing Cooler Refrigerant Suction Hose No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the wire harness protector.

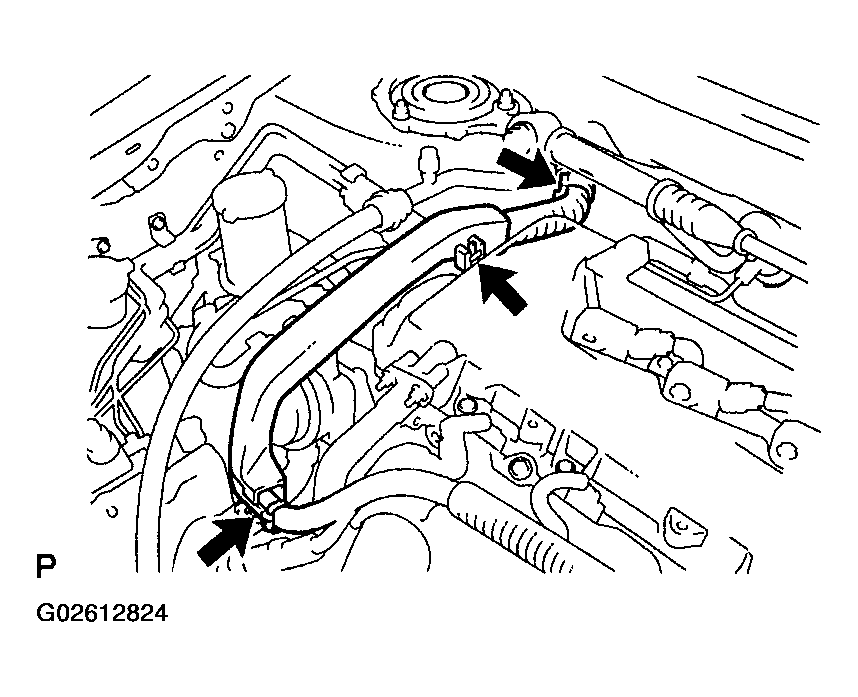

Fig 12: Installing Wire Harness Protector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
