Wiper And Washer , Automatic Glare-Resistant

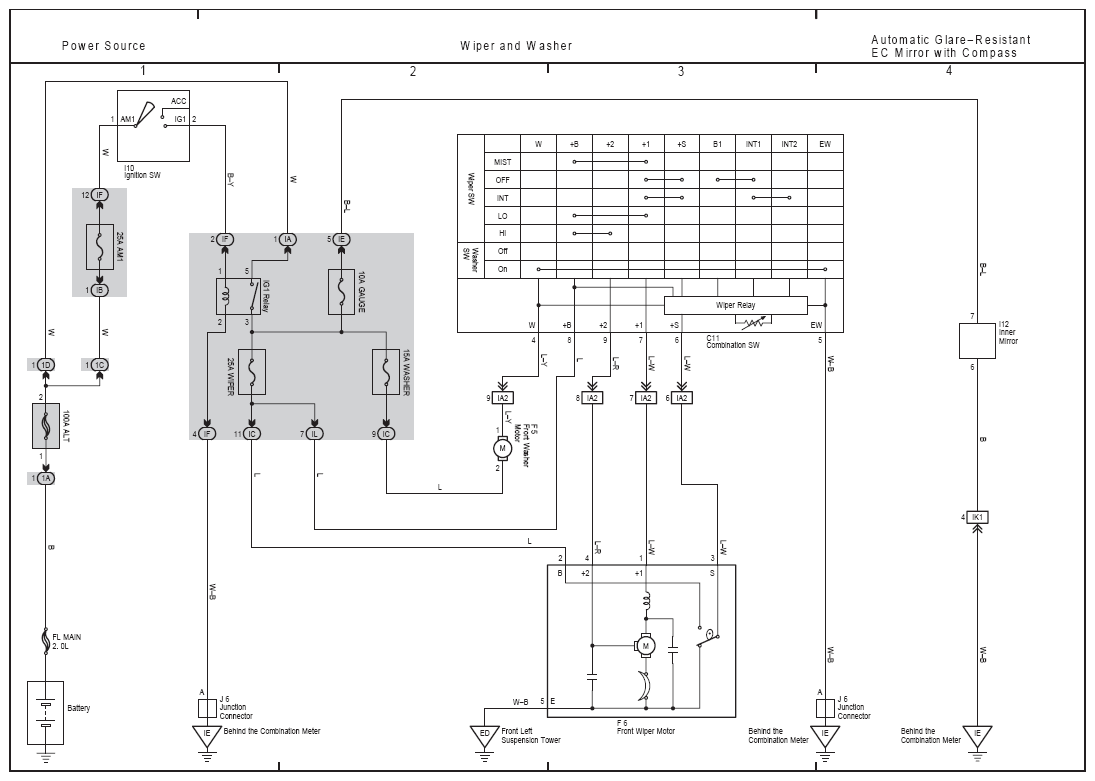

Fig 1: Wiper And Washer , Automatic Glare-Resistant Electrical Wiring Diagram

G08780026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
