Seat Belt Warning, Light Reminder And Key Reminder

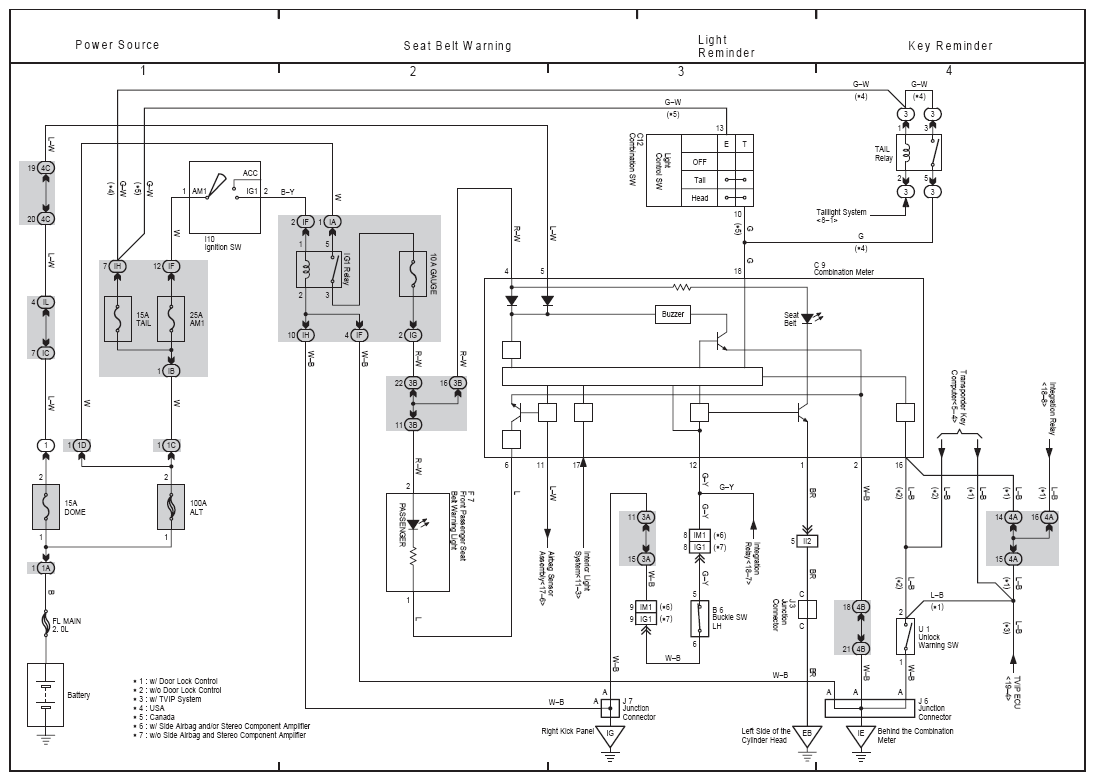

Fig 1: Seat Belt Warning , Light Reminder And Key Reminder Electrical Wiring Diagram

G08780033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
