Overall Electrical Wiring Diagram
>>
Rear Window Defogger
Rear Window Defogger

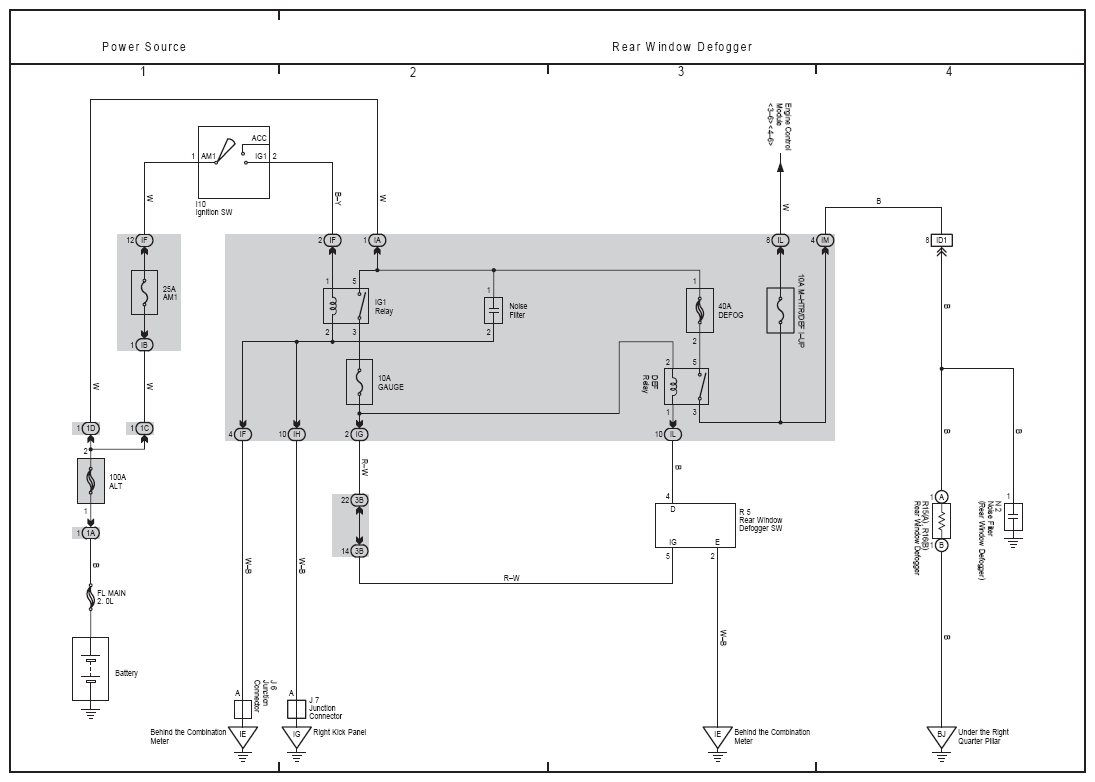

Fig 1: Rear Window Defogger Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
