Power Window

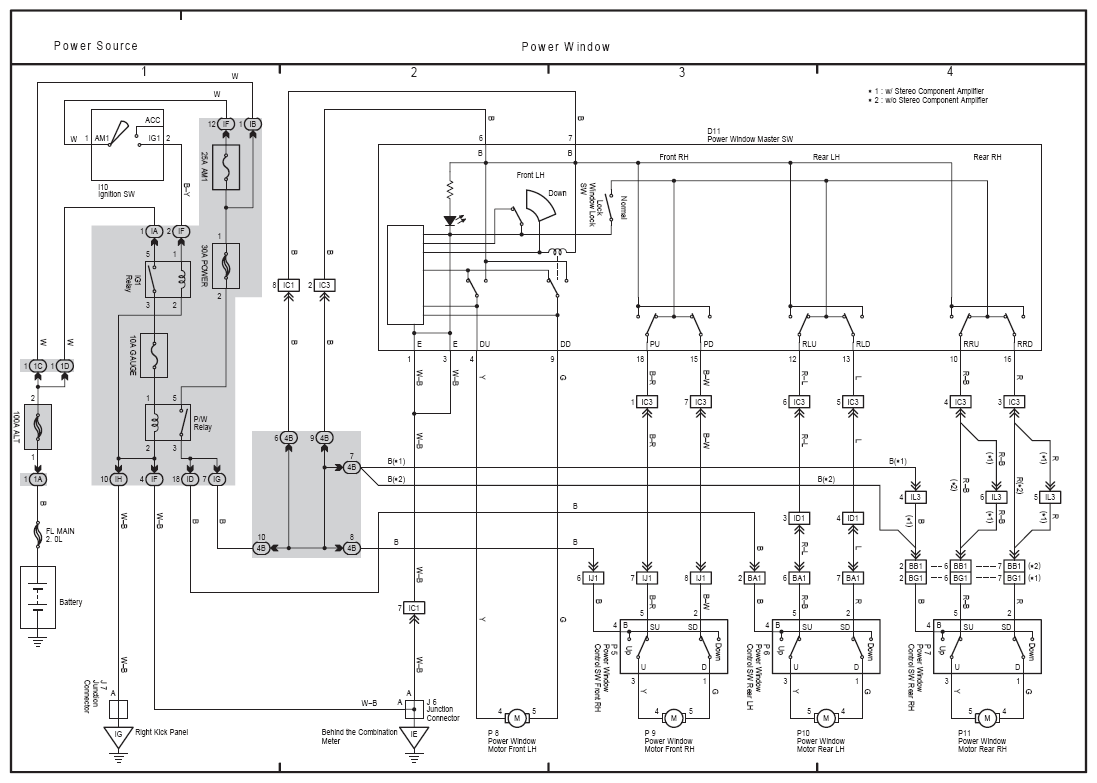

Fig 1: Power Window Electrical Wiring Diagram

G08780032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
