Power Source, Turn Signal And Hazard Warning Light

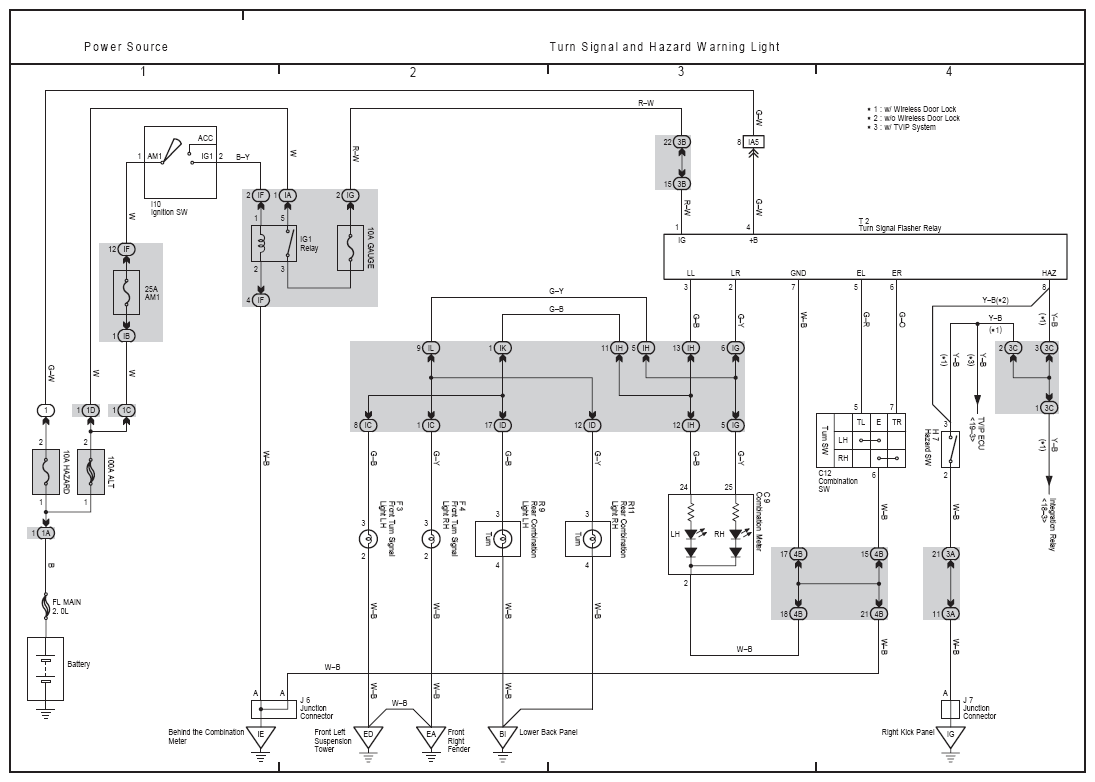

Fig 1: Power Source, Turn Signal And Hazard Warning Light Electrical Wiring Diagram

G08780013

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
