OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Source, Headlight And Fog Light
Power Source, Headlight And Fog Light

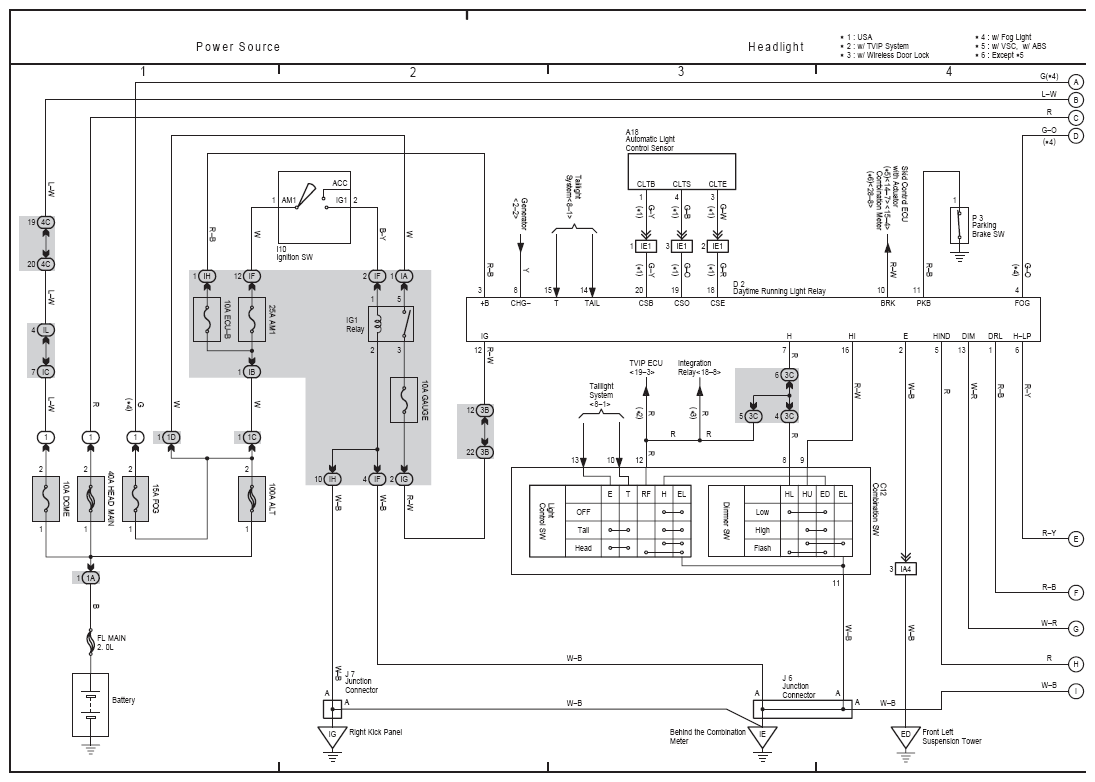

Fig 1: Power Source, Headlight Electrical Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

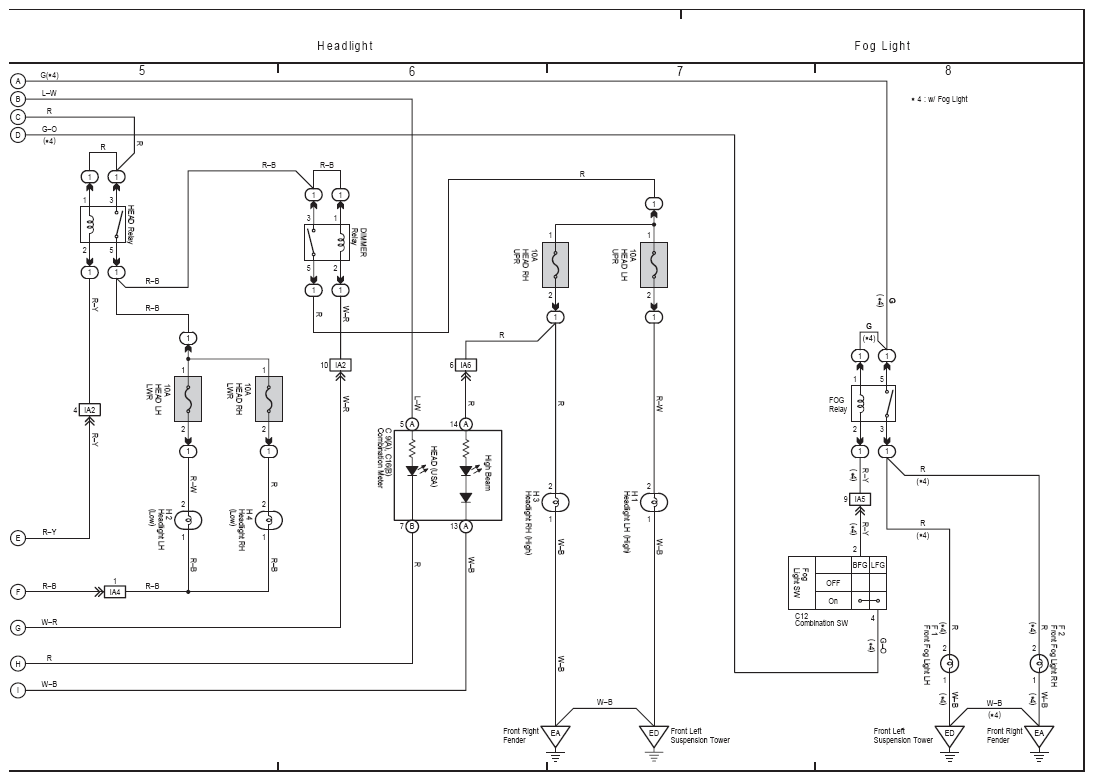

Fig 2: Headlight And Fog Light Electrical Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
