Power Source And Illumination

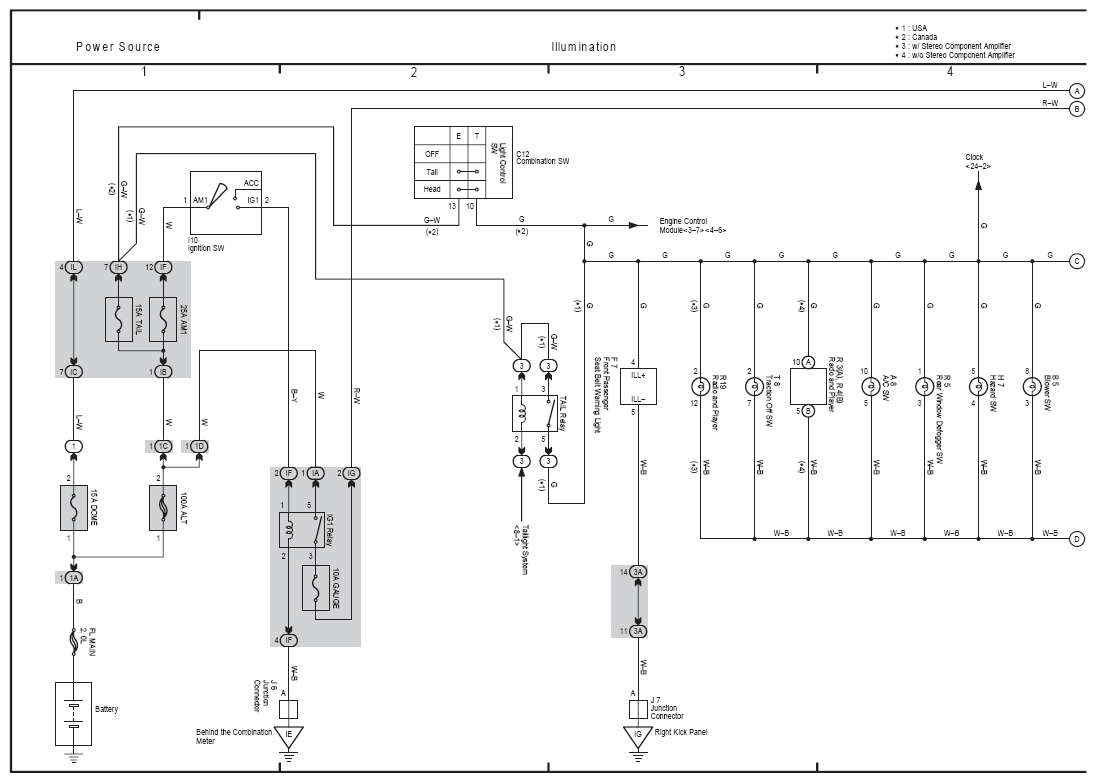

Fig 1: Power Source And Illumination Electrical Wiring Diagram (1 Of 2)
G08780016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

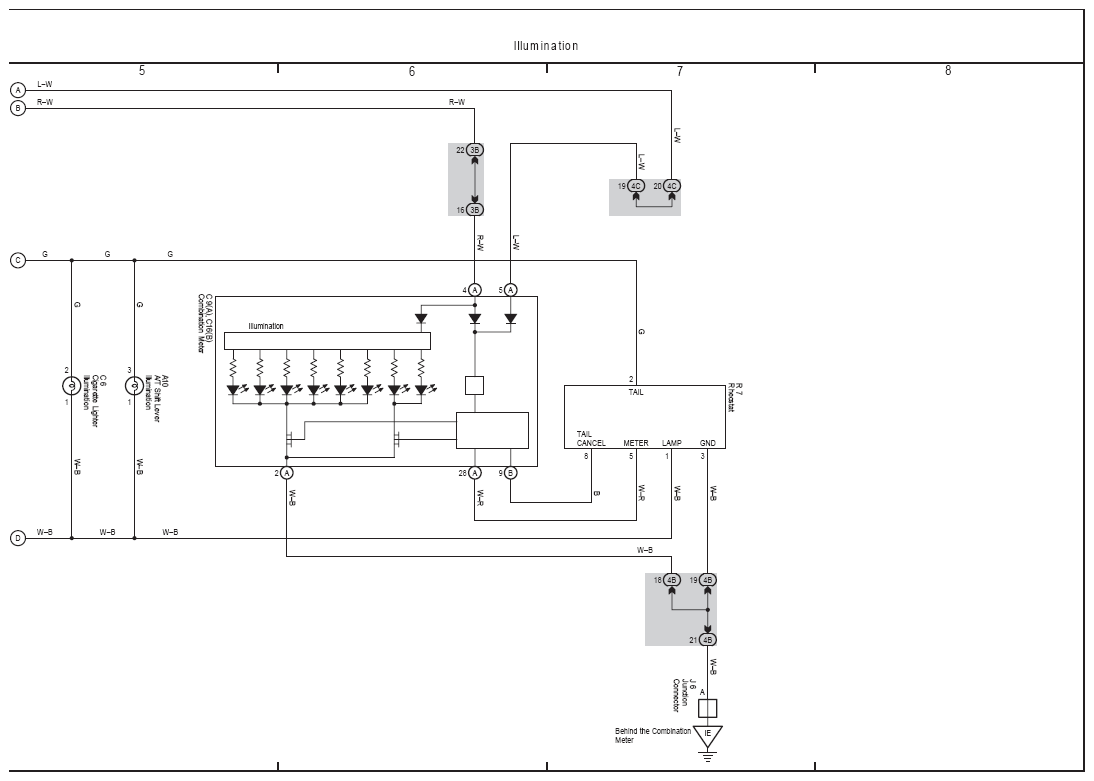

Fig 2: Illumination Electrical Wiring Diagram (2 Of 2)
G08780017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
