OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Source And Engine Immobiliser System
Power Source And Engine Immobiliser System

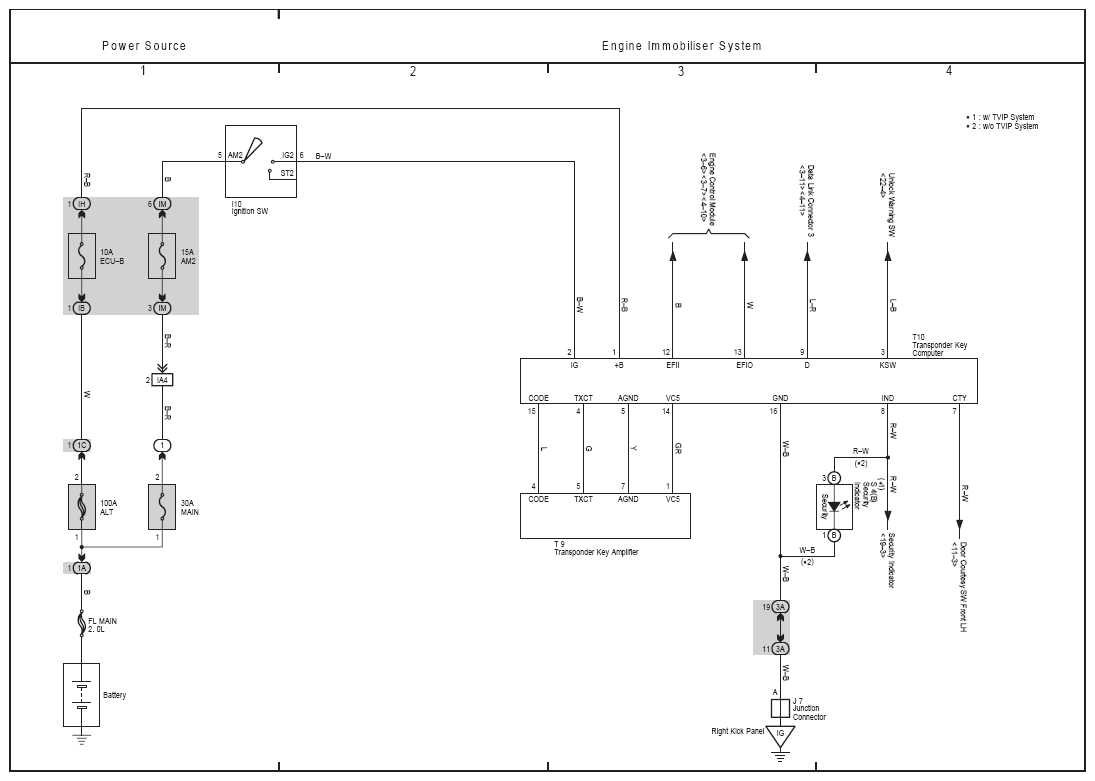

Fig 1: Power Source And Engine Immobiliser System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
