Power Source And Engine Control (2ZZ-GE)

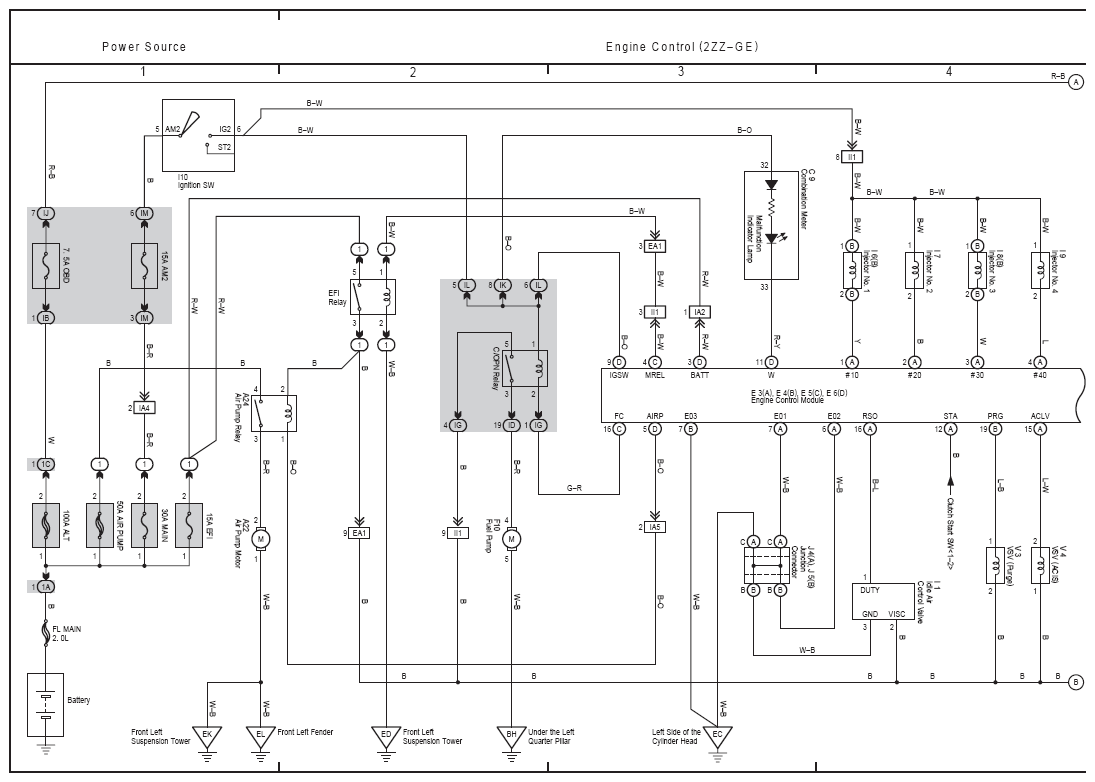

Fig 1: Power Source And Engine Control (2ZZ-GE) Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

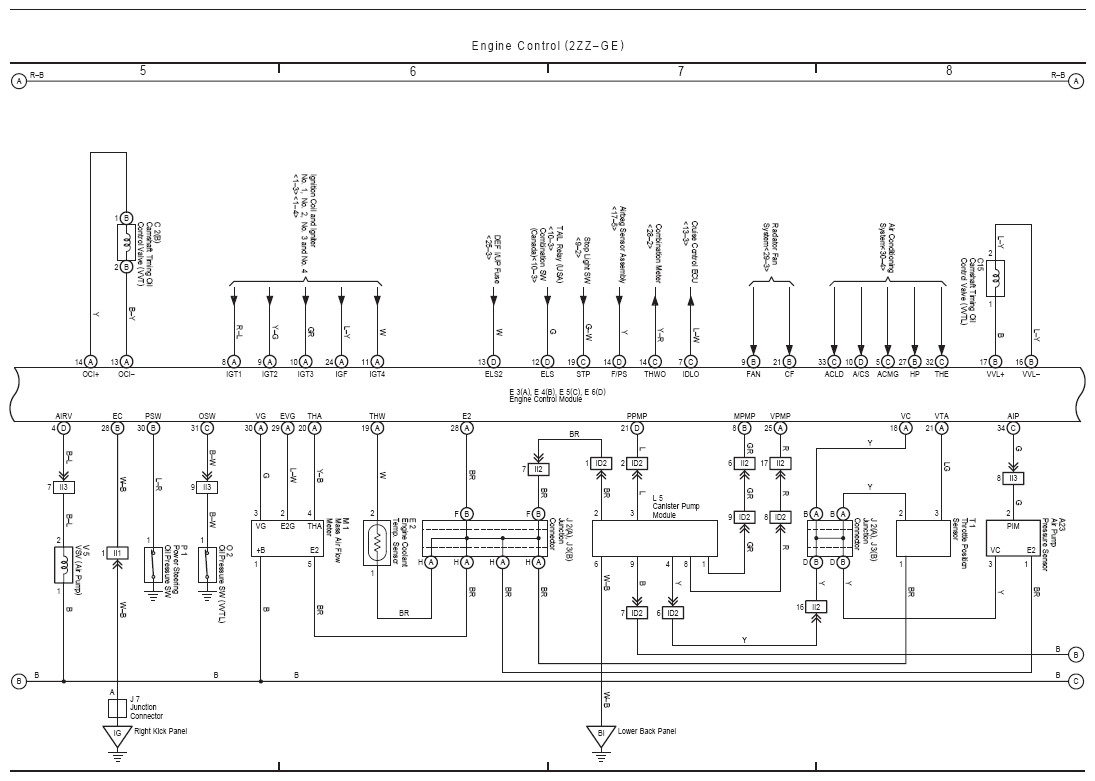

Fig 2: Engine Control (2ZZ-GE) Electical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

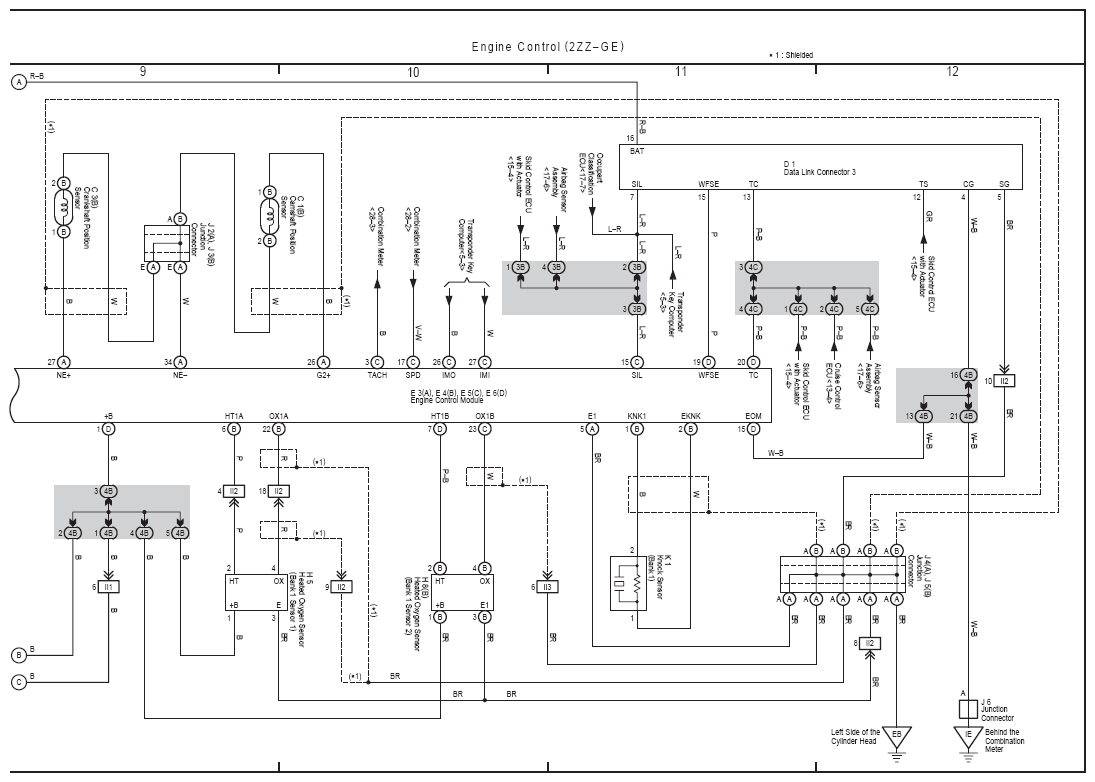

Fig 3: Engine Control (2ZZ-GE) Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
