Overall Electrical Wiring Diagram
>>
Power Source And Charging
Power Source And Charging

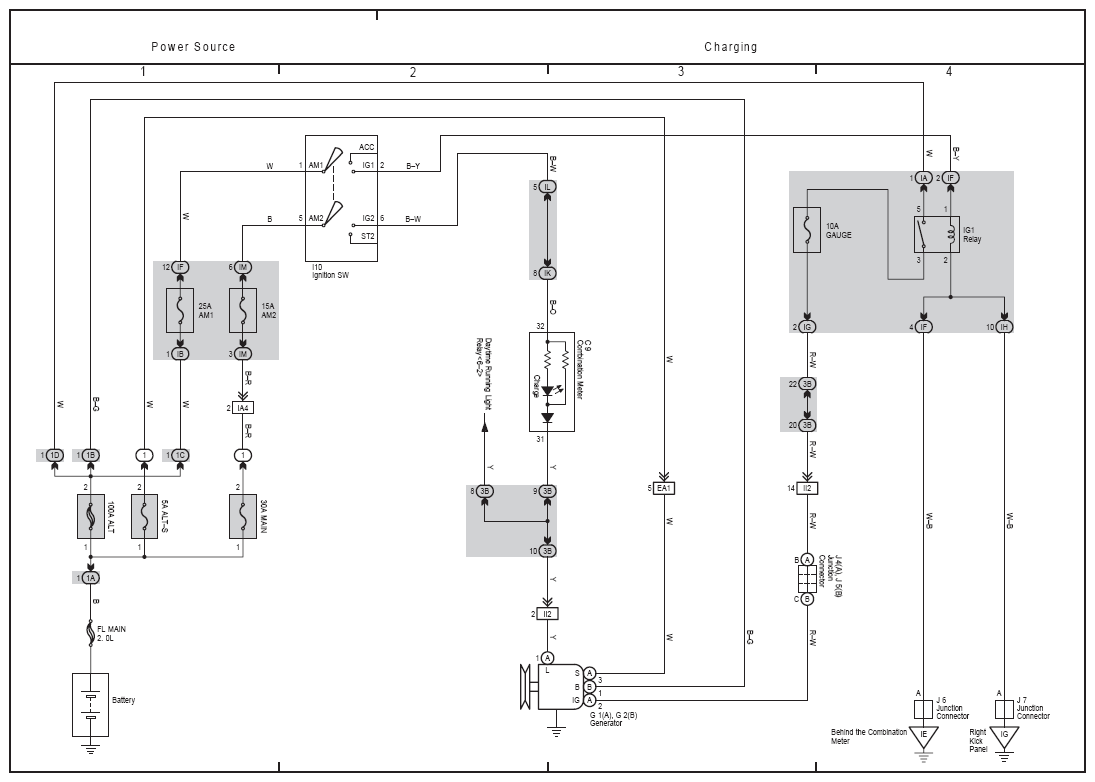

Fig 1: Power Source And Charging Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
