Power Source , Starting And Ignition

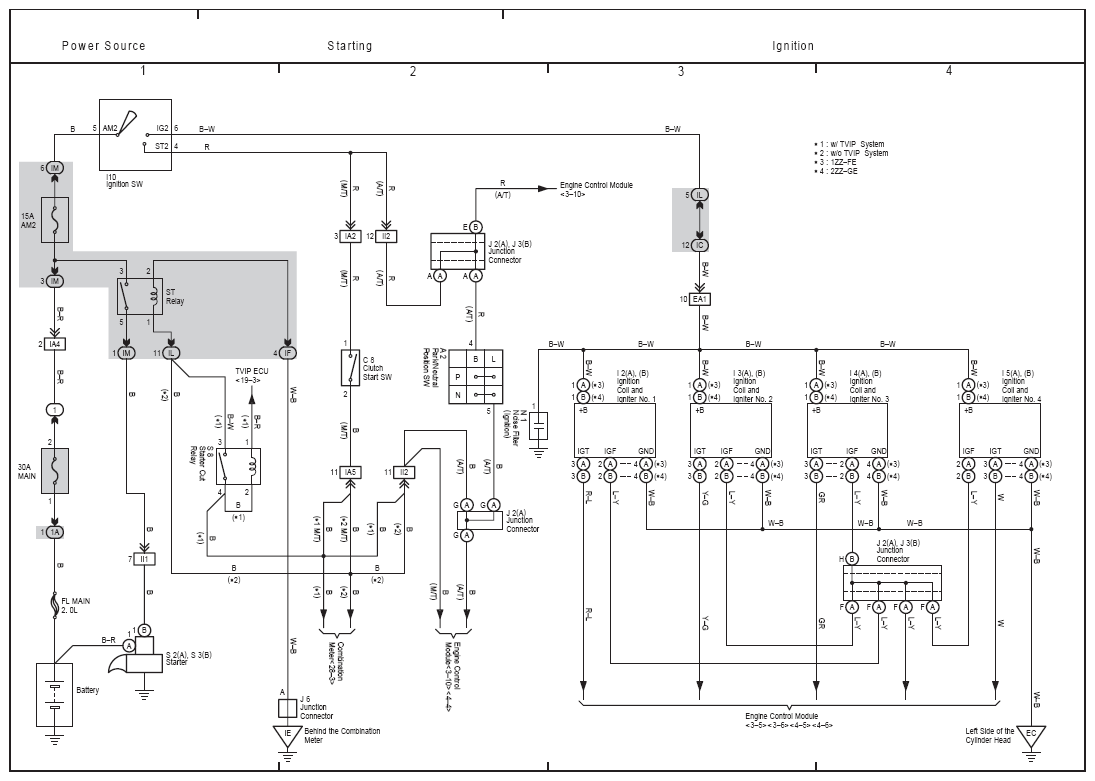

Fig 1: Starting And Ignition Electrical Wiring Diagram

G08780002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
