Power Source , Cruise Control (1ZZ-FE) And Engine Control (1ZZ-FE)

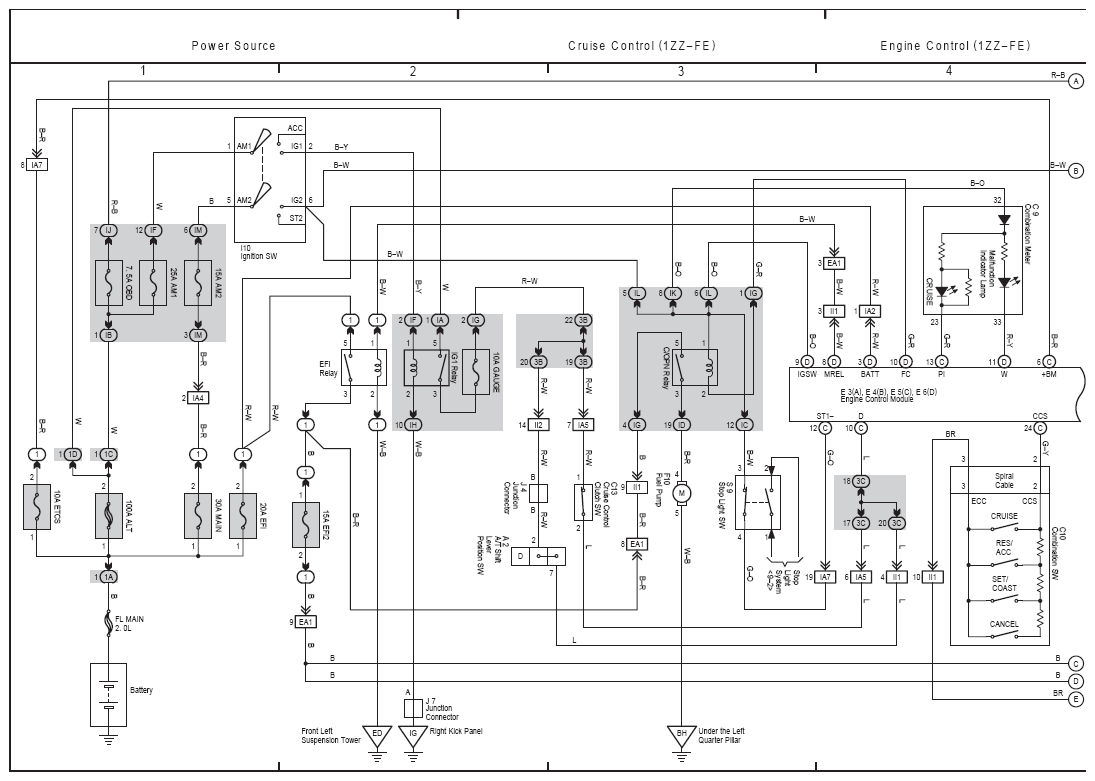

Fig 1: Power Source , Cruise Control (1ZZ-FE) And Engine Control (1ZZ-FE) Electrical Wiring Diagram (1 Of 3)
G08780004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

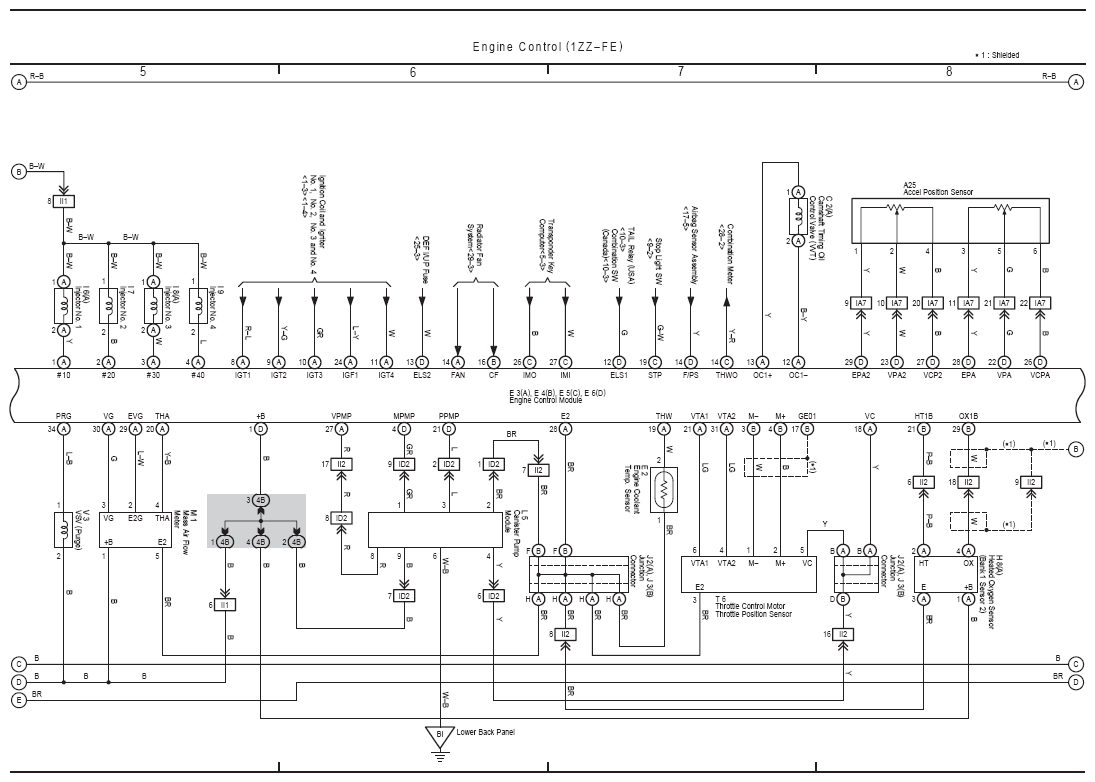

Fig 2: Engine Control (1ZZ-FE) Electrical Wiring Diagram (2 Of 3)
G08780005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

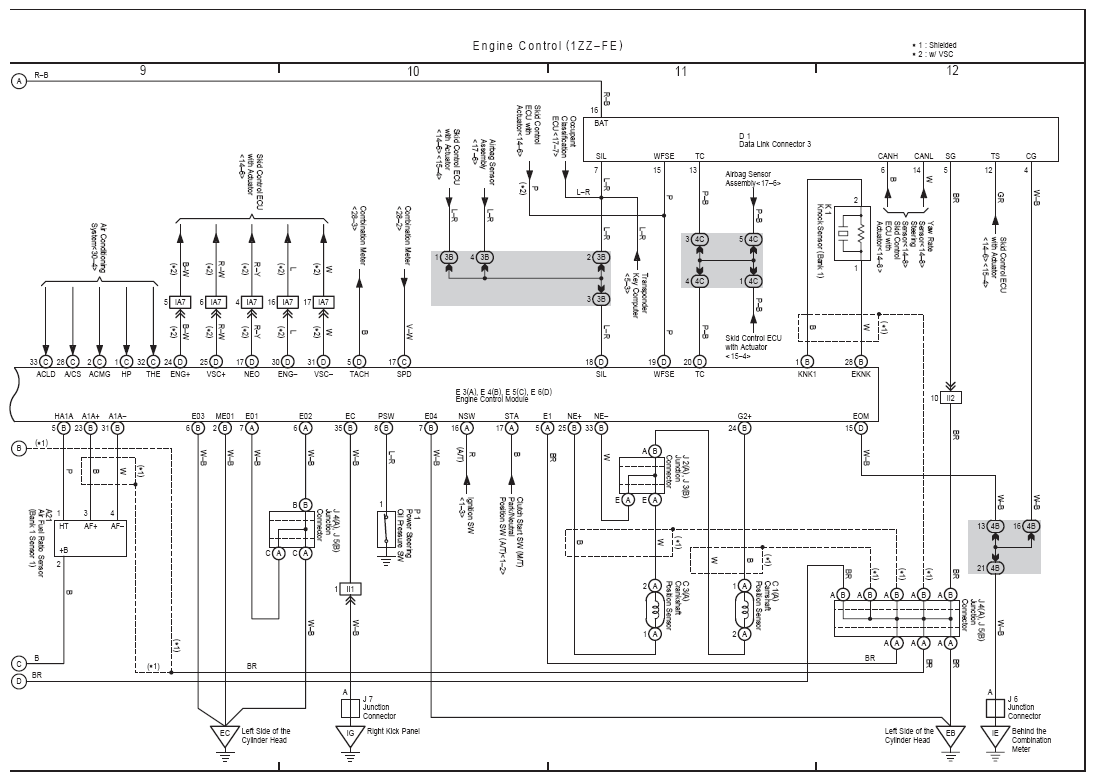

Fig 3: Engine Control (1ZZ-FE) Electrical Wiring Diagram (3 Of 3)
G08780006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
