Interior Light

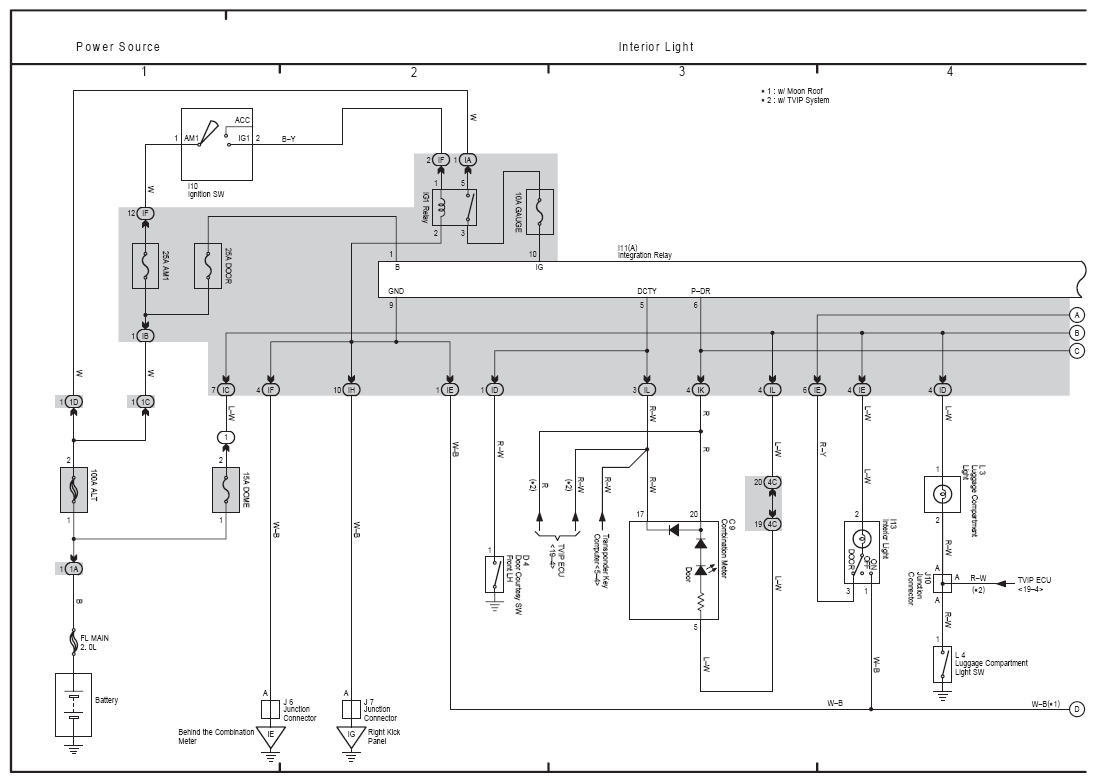

Fig 1: Interior Light Electrical Wiring Diagram (1 Of 2)
G08780018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

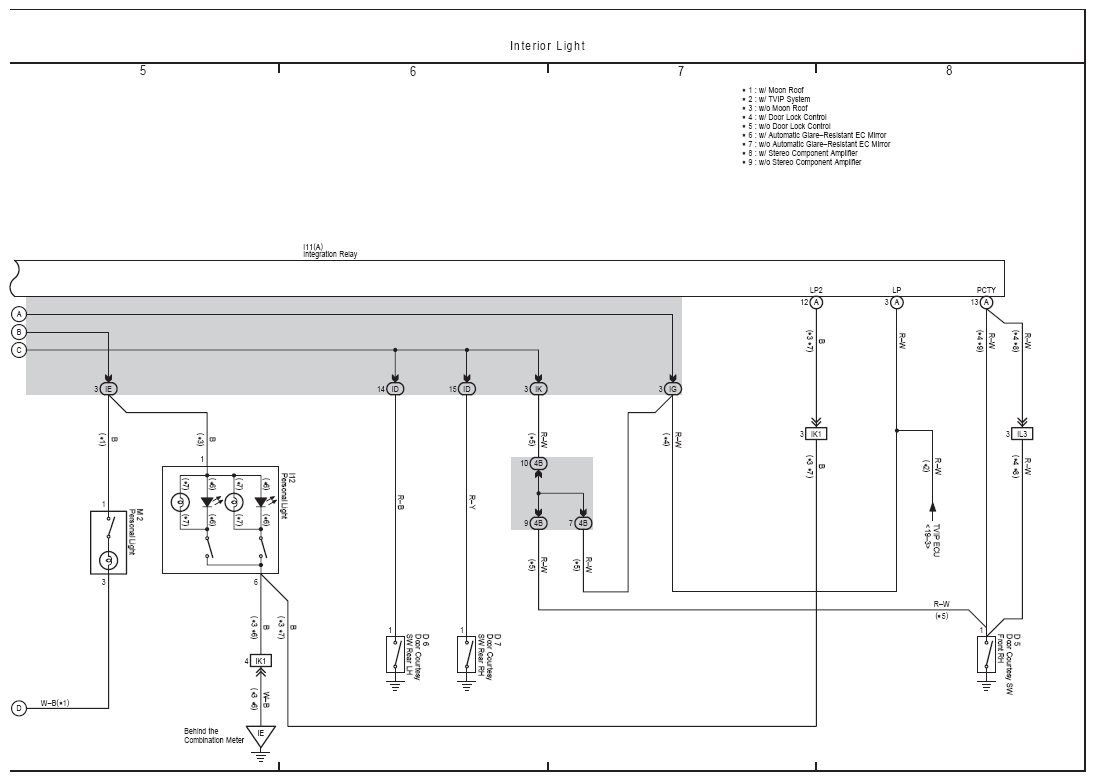

Fig 2: Interior Light Electrical Wiring Diagram (2 Of 2)
G08780019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
