Electronically Controlled Transmission

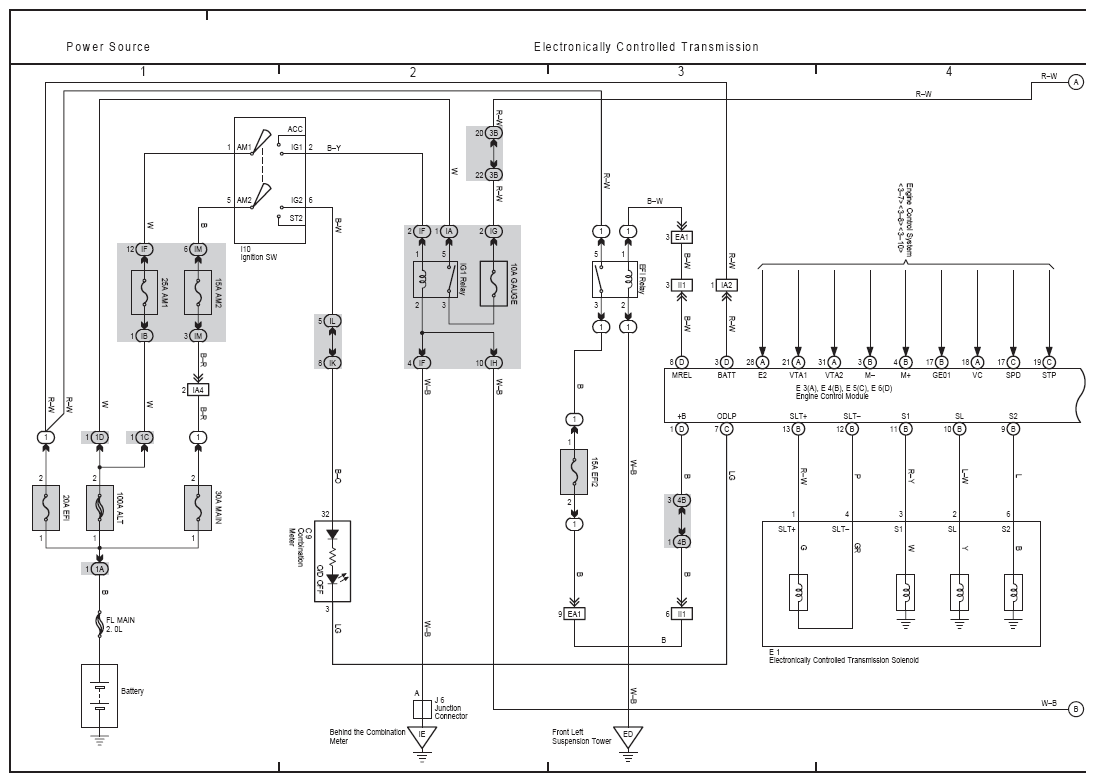

Fig 1: Electronically Controlled Transmission Electrical Wiring Diagram (1 Of 2)
G08780020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

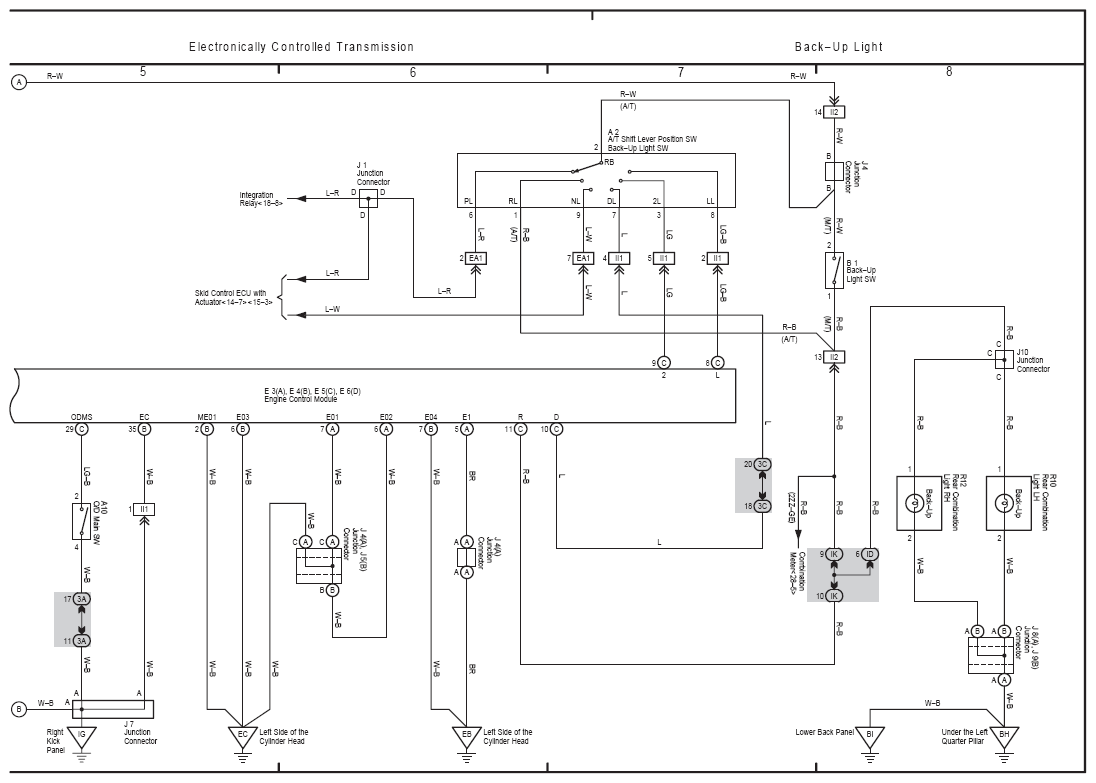

Fig 2: Electronically Controlled Transmission And Back Up Light Electrical Wiring Diagram (2 Of 2)
G08780021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
