Cruise Control (2ZZ-GE)
Cruise Control (2ZZ-GE)

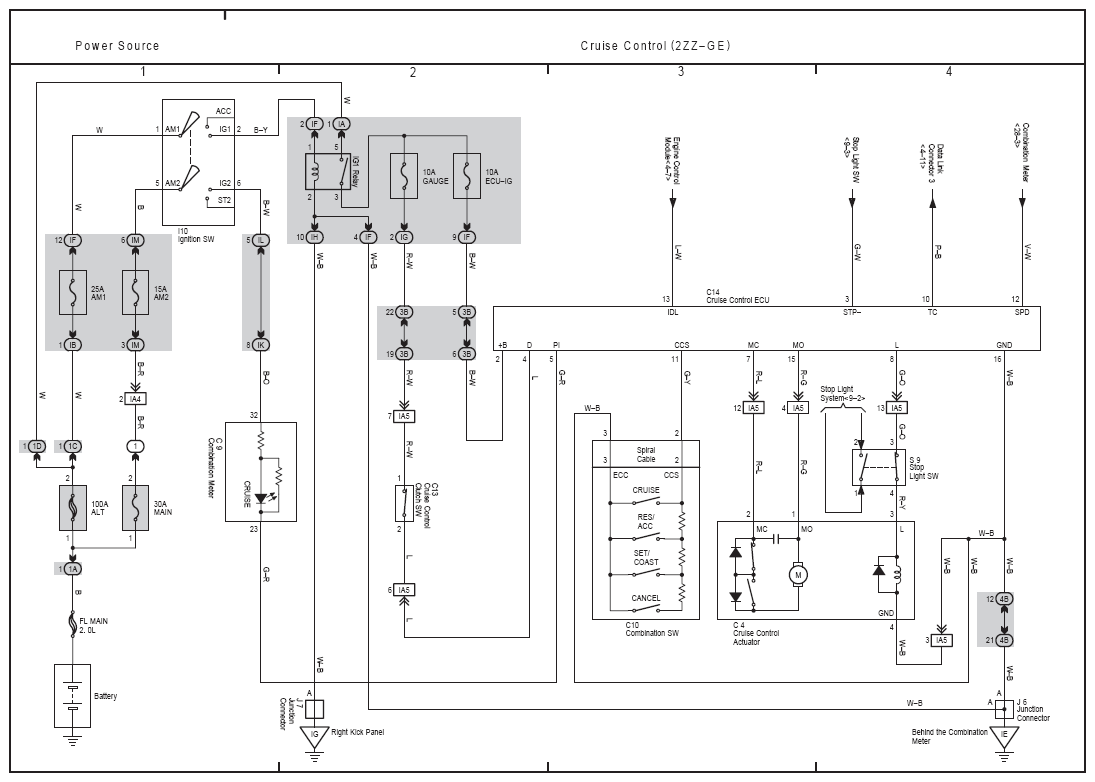

Fig 1: Cruise Control (2ZZ-GE) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
