Cigarette Lighter, Clock, Power Outlet , Horn

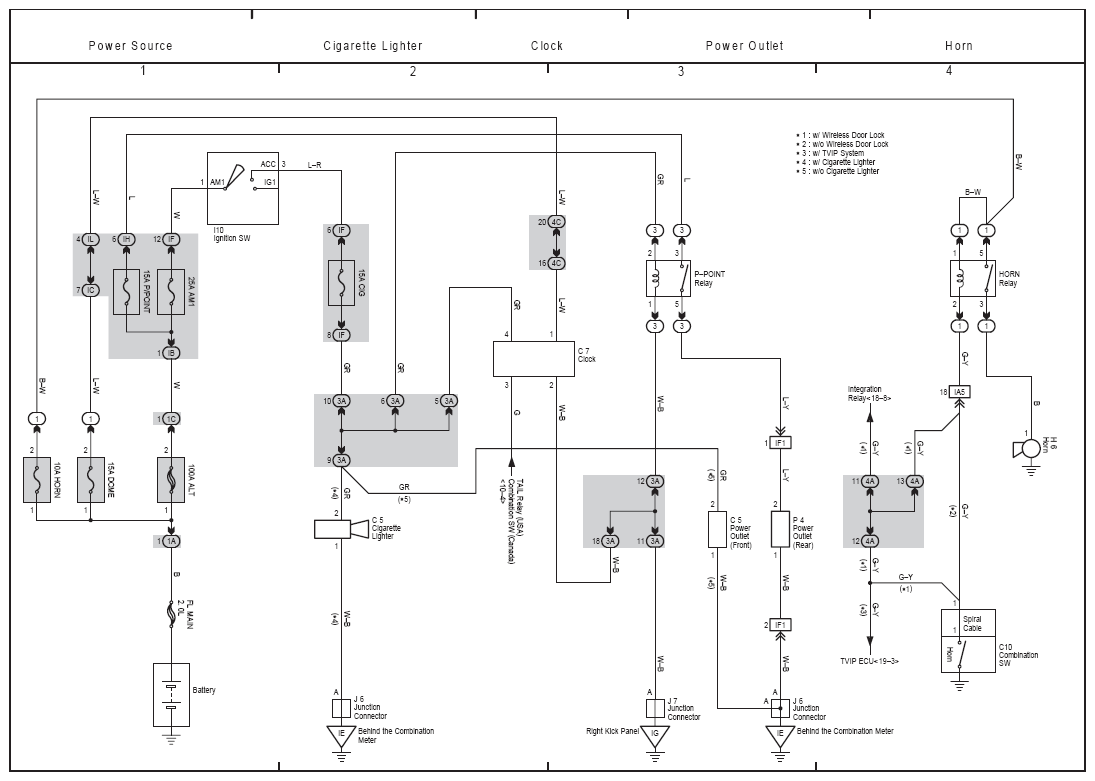

Fig 1: Cigarette Lighter, Clock, Power Outlet , Horn Electrical Wiring Diagram

G08780035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
