Audio System (w/Stereo Component Amplifier)

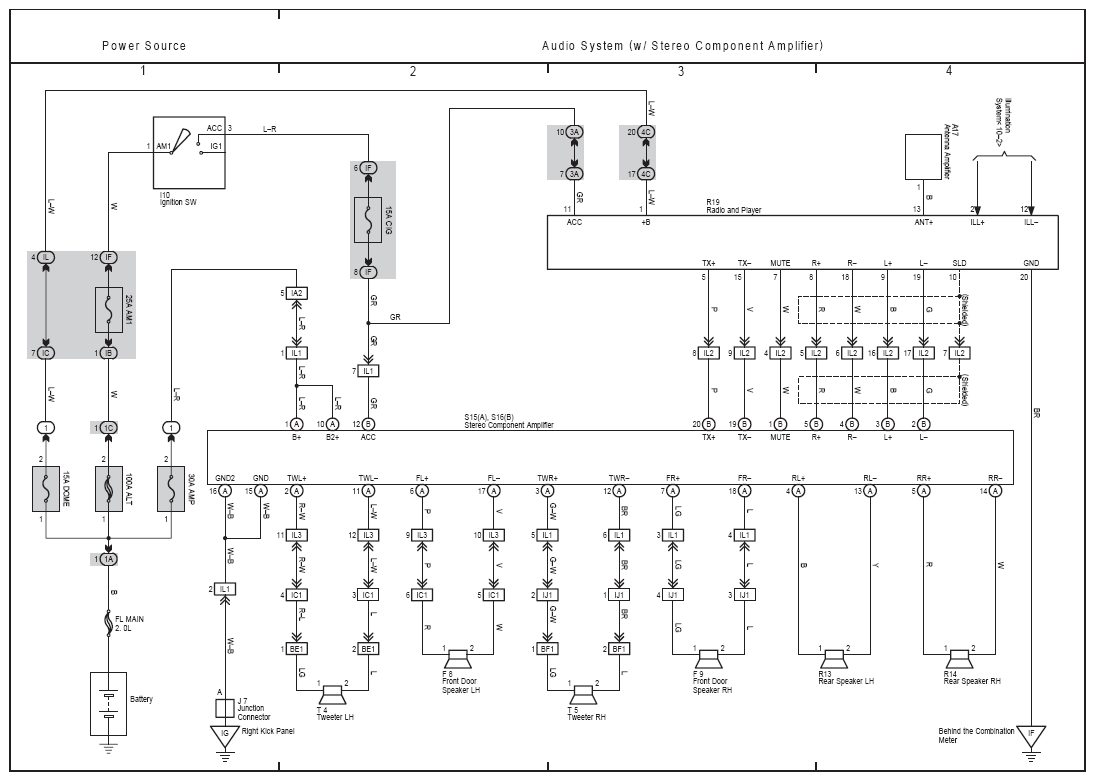

Fig 1: Audio System (w/Stereo Component Amplifier) Electrical Wiring Diagram

G08780037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
