Air Conditioning Radiator ASSY: Components

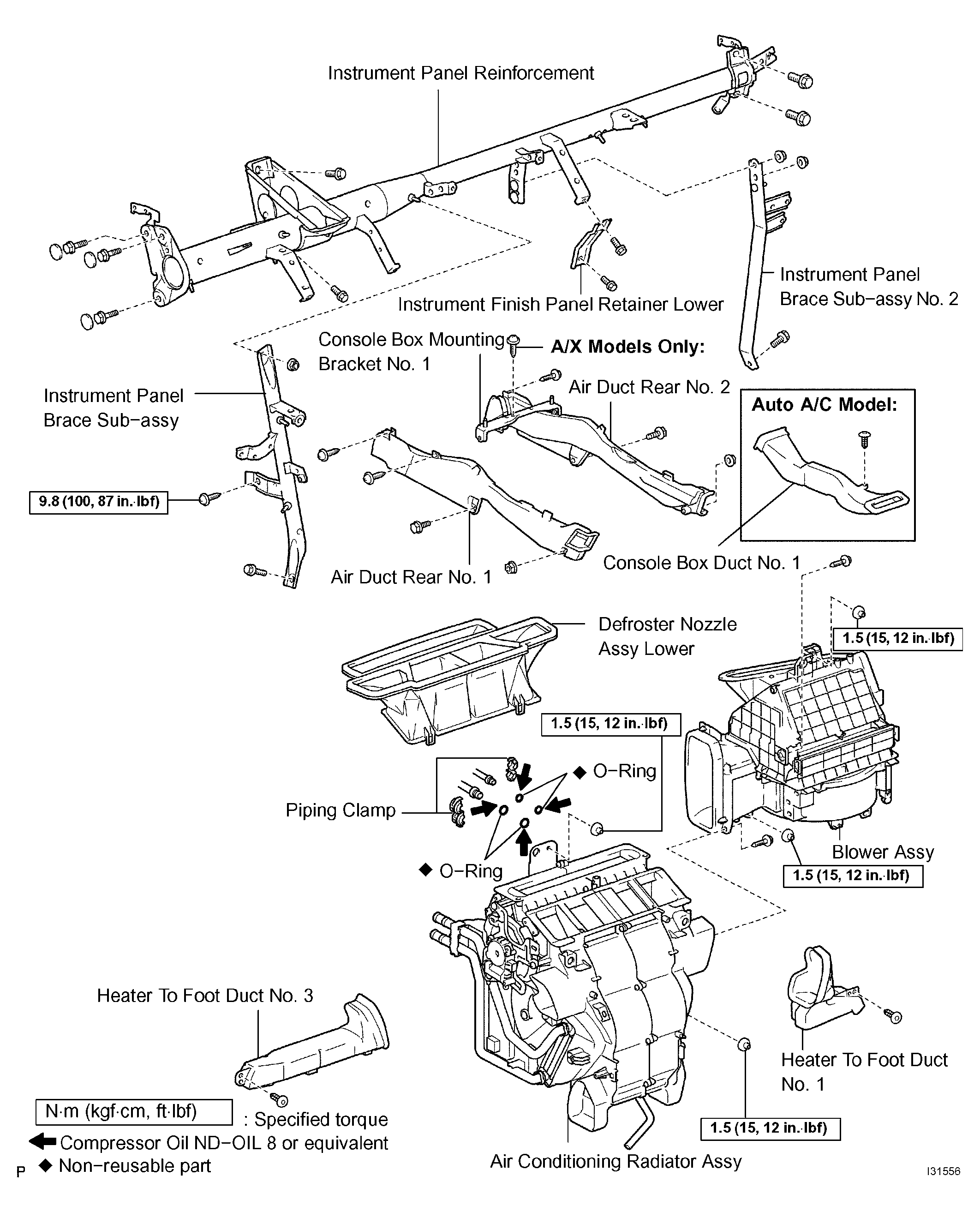

Fig 1: Identifying Air Conditioning Radiator Assy Components (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

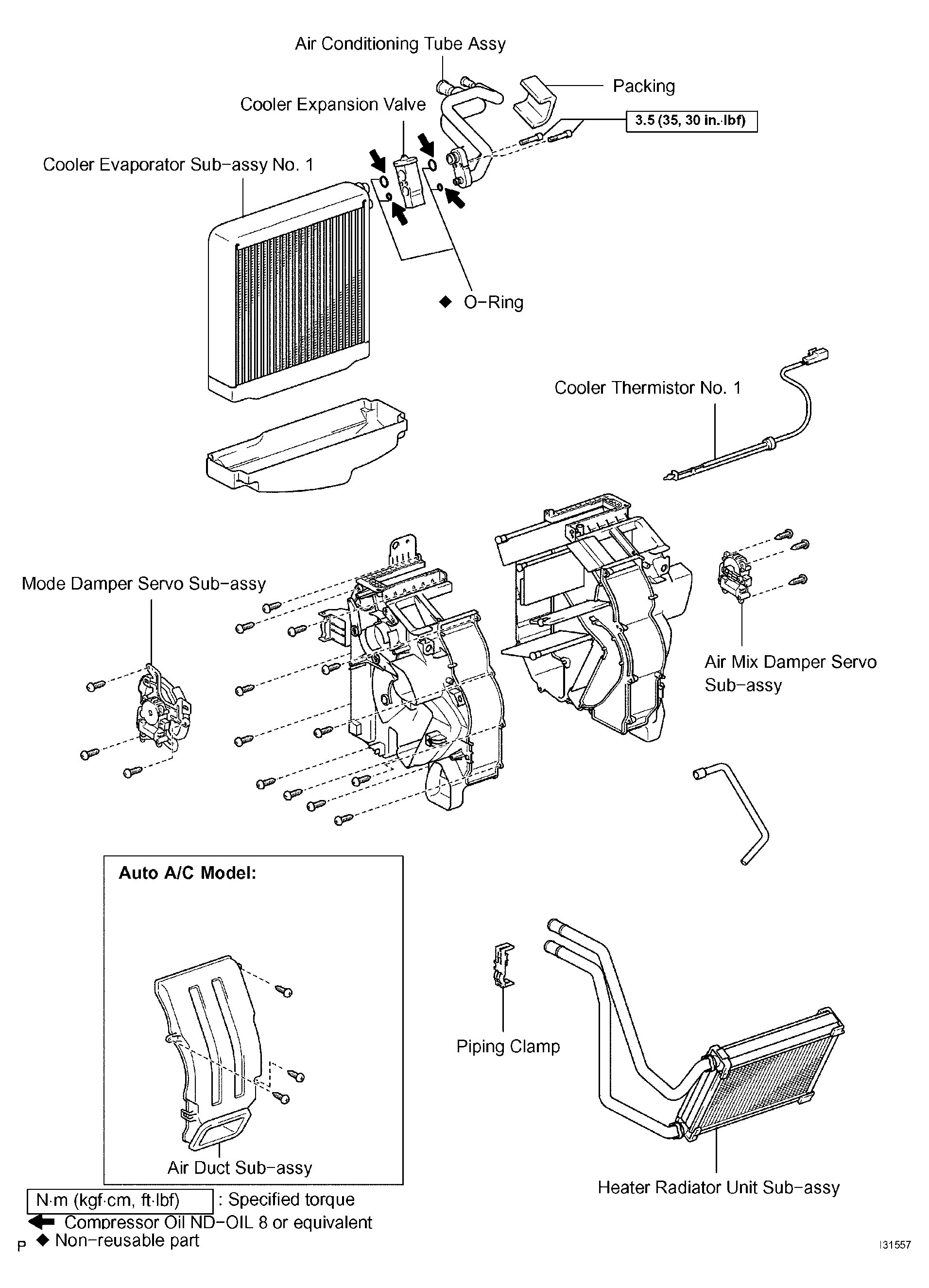

Fig 2: Identifying Air Conditioning Radiator Assy Components (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
