Combination Meter ASSY: Overhaul

HINT:

• See COMPONENTS  .
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL (SEE  REPLACEMENT  )
2. REMOVE COMBINATION METER ASSY
   1. Remove the 2 screws and disengage the 2 clips.
   2. Disconnect the connectors and remove the combination meter assy.

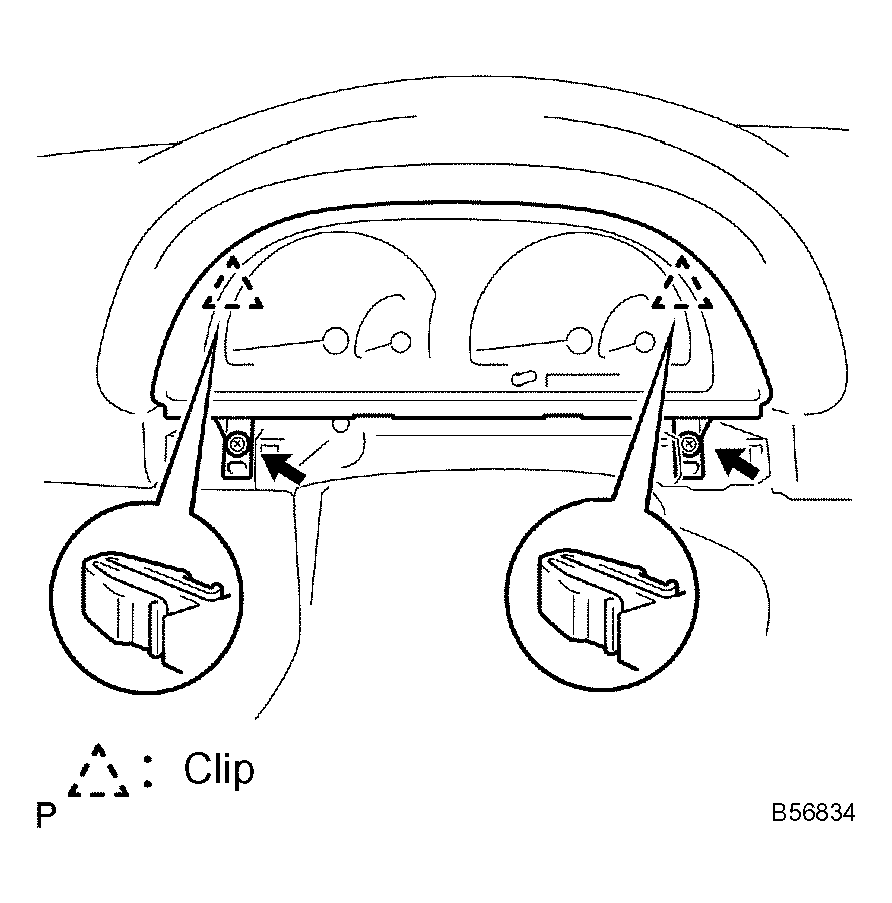

   Fig 1: Identifying Combination Meter Assy Screws And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE COMBINATION METER GLASS
   1. Reverse the combination meter and remove the 2 screws.
   2. Remove the tape.
   3. Disengage the 7 claws and remove the combination meter glass.

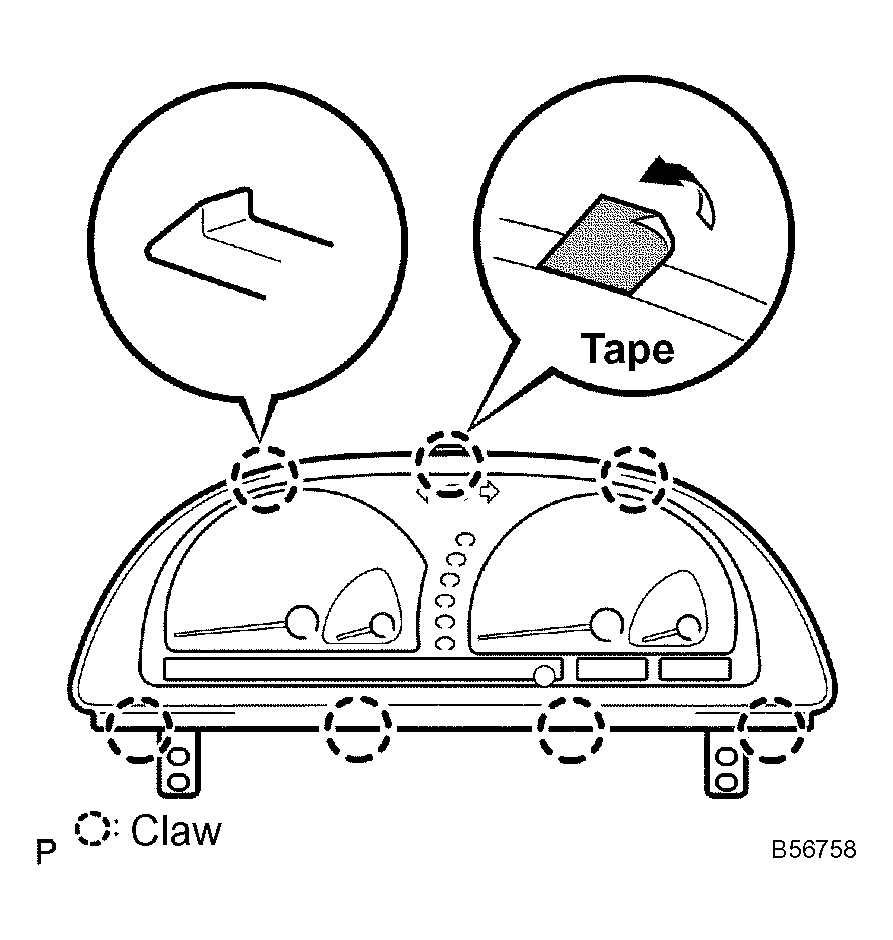

      Fig 2: Removing Combination Meter Glass

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
