Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics)
>>
TRAC Off Indicator Light, TRAC Off Switch Circuit
>>
Wiring Diagram
TRAC Off Indicator Light, TRAC Off Switch Circuit: Wiring Diagram

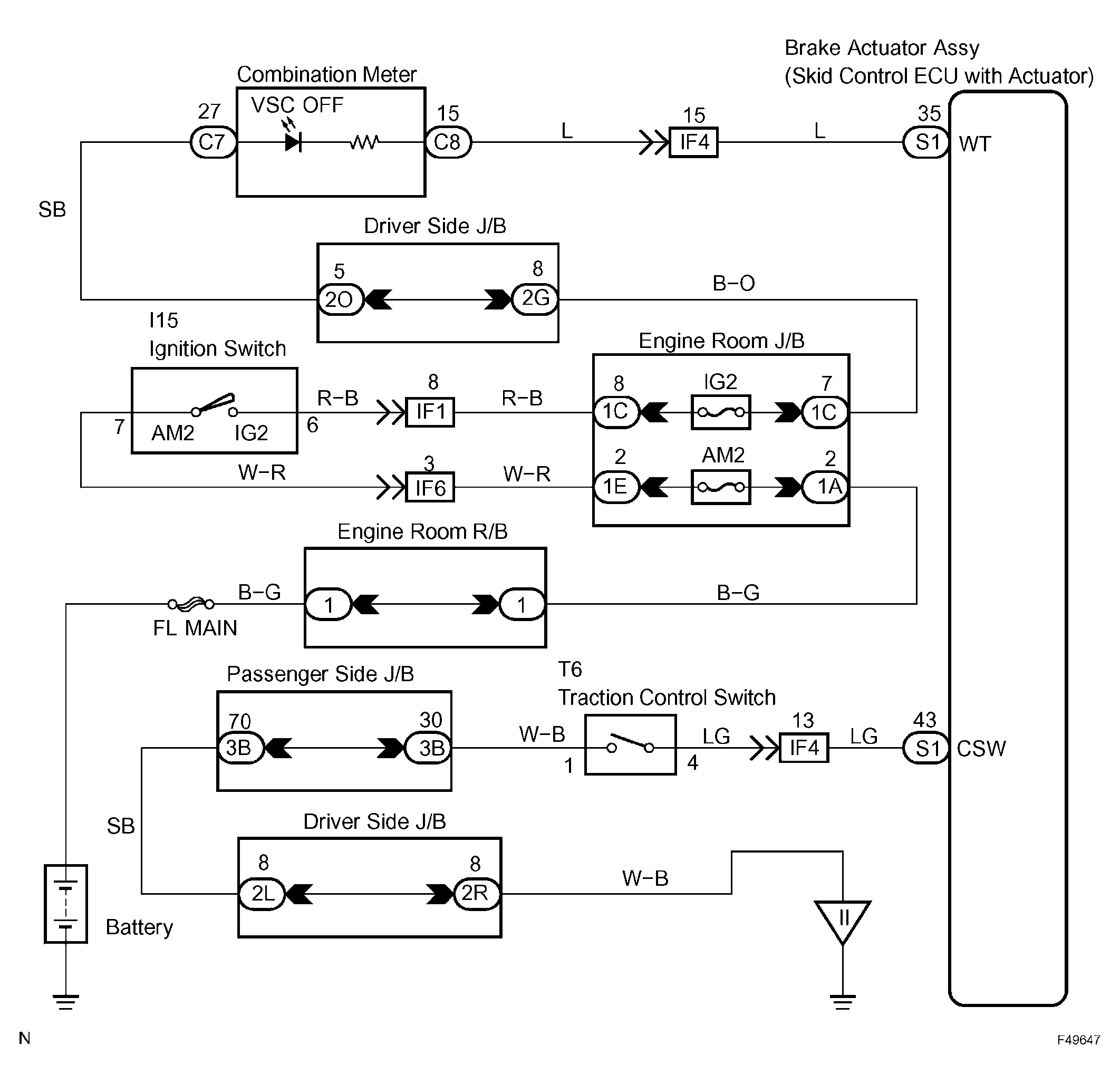

Fig 1: TRAC Off Indicator Light /Off Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
