Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics)
>>
TC Terminal Circuit
>>
Wiring Diagram
TC Terminal Circuit: Wiring Diagram

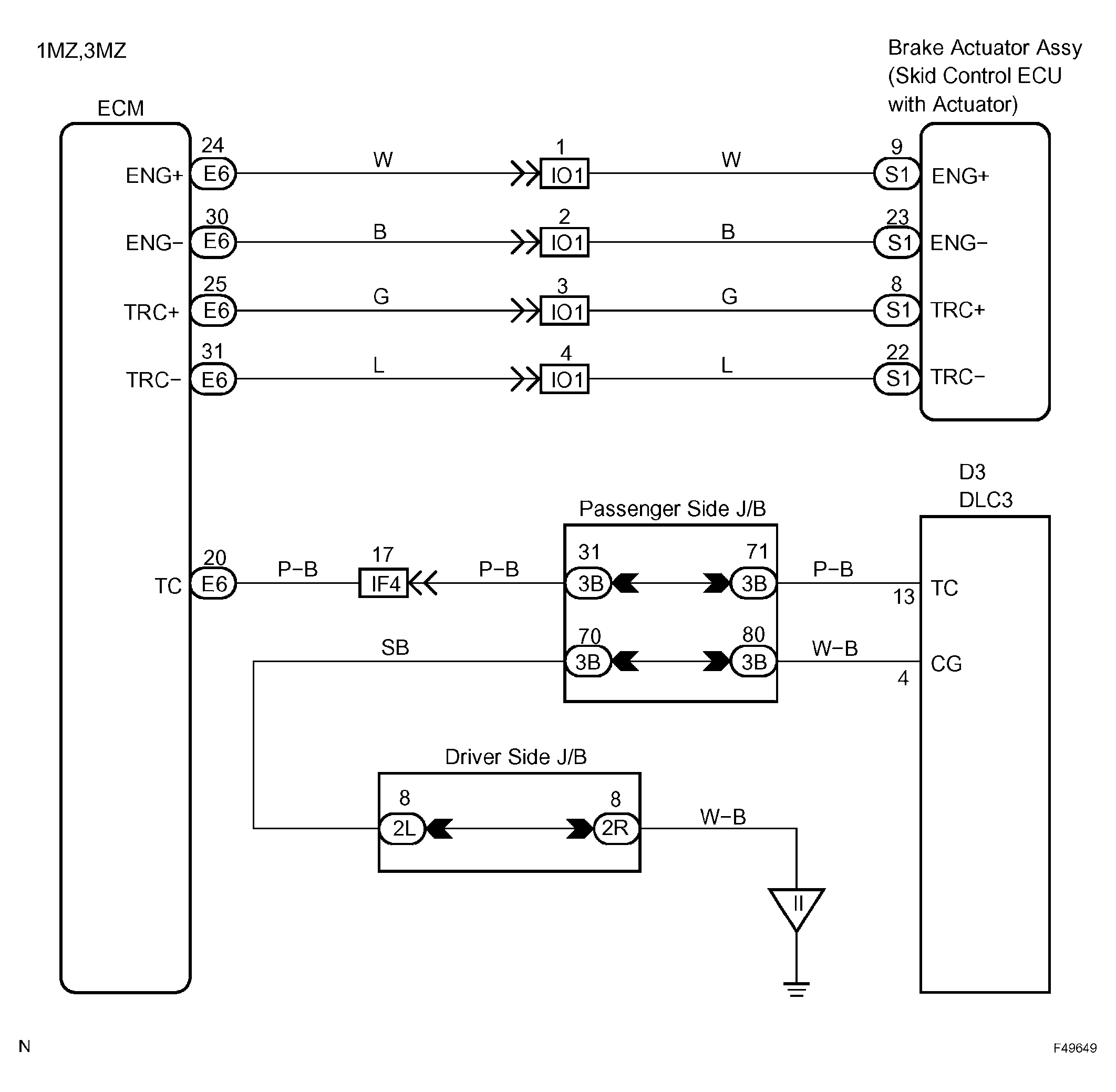

Fig 1: TC Terminal Circuit Wiring Diagram (1MZ, 3MZ)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

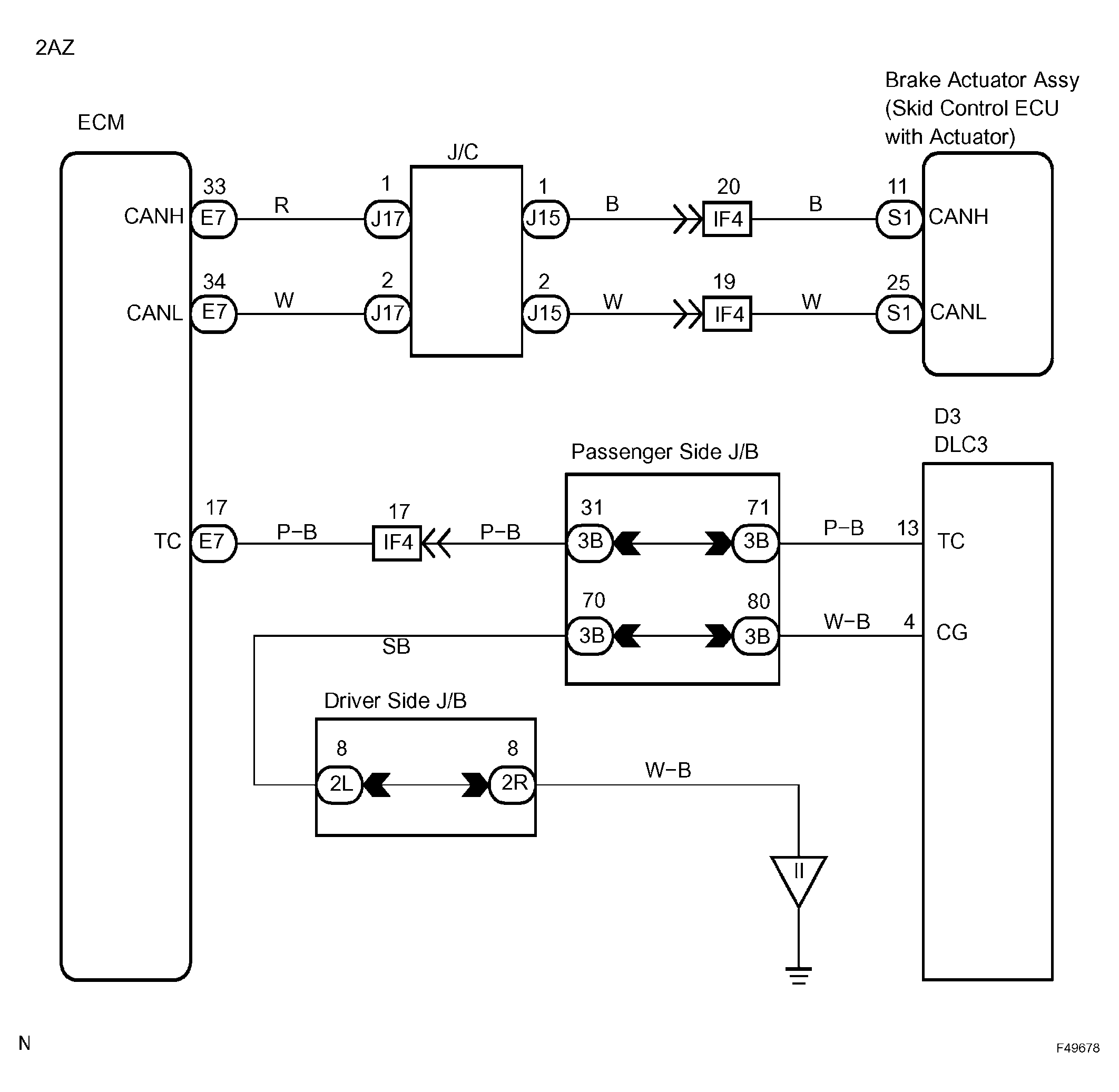

Fig 2: TC Terminal Circuit Wiring Diagram (2AZ)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
