Skid Control Buzzer Circuit: Wiring Diagram

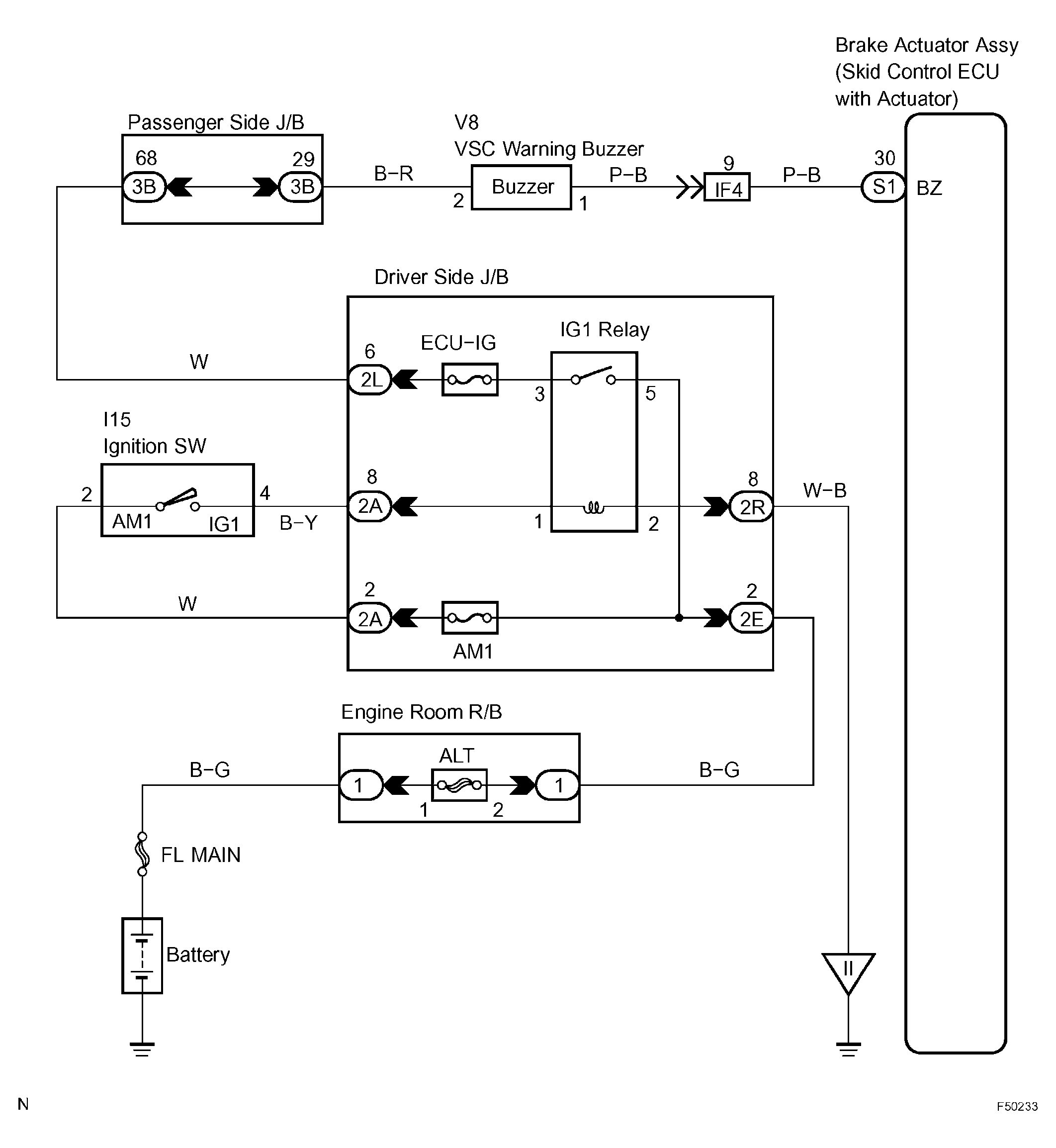

Fig 1: Skid Control Buzzer Circuit Wiring Diagram

G04390102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
