DTC C1251/51 Pump Motor Is Locked/Open Circuit In Pump Motor Ground: Wiring Diagram

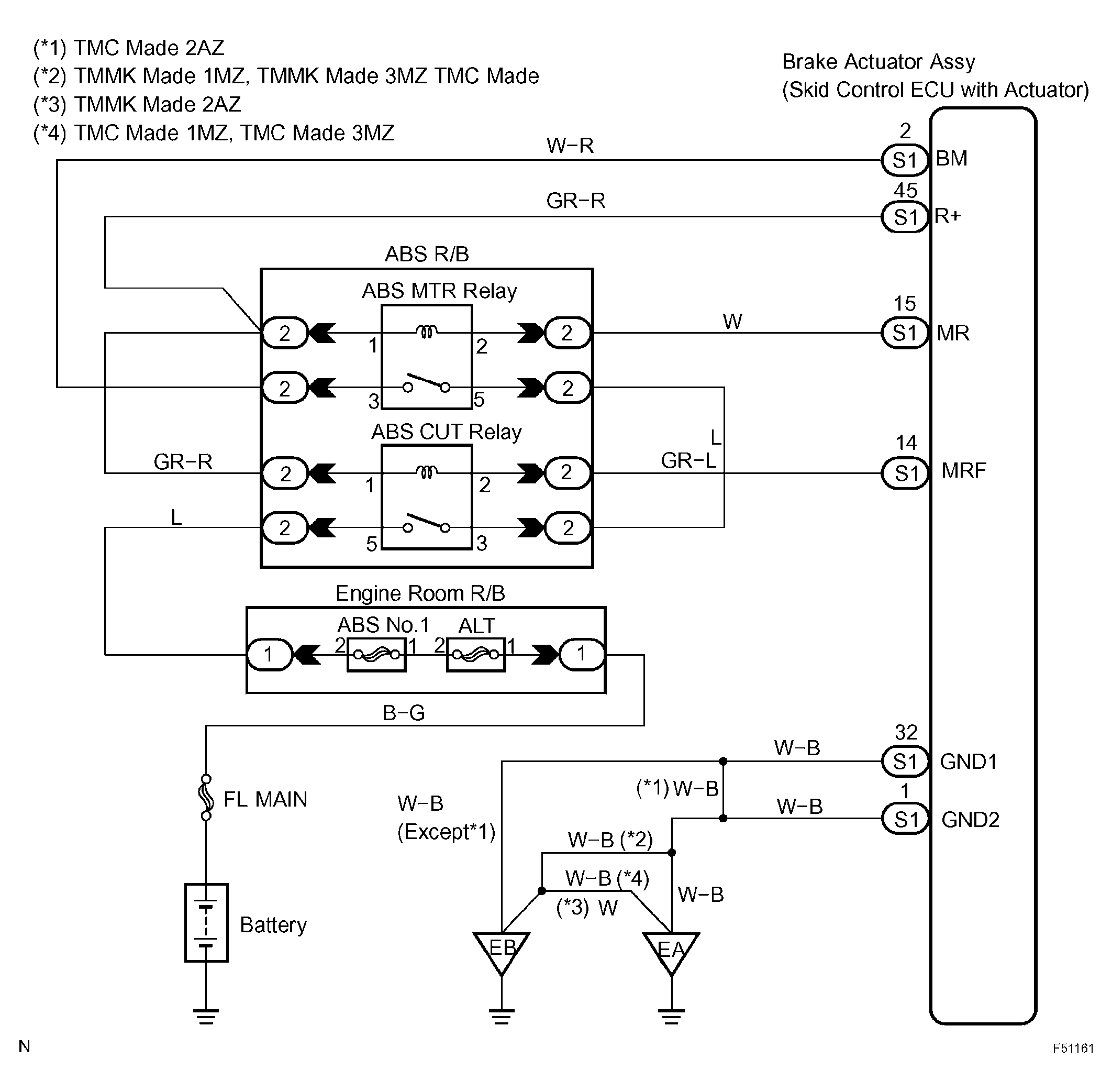

Fig 1: Pump Motor Is Locked/Open Circuit In Pump Motor Ground Wiring Diagram
G04390072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
