DTC C1249/49 Open Circuit In Stop Light Switch Circuit: Wiring Diagram

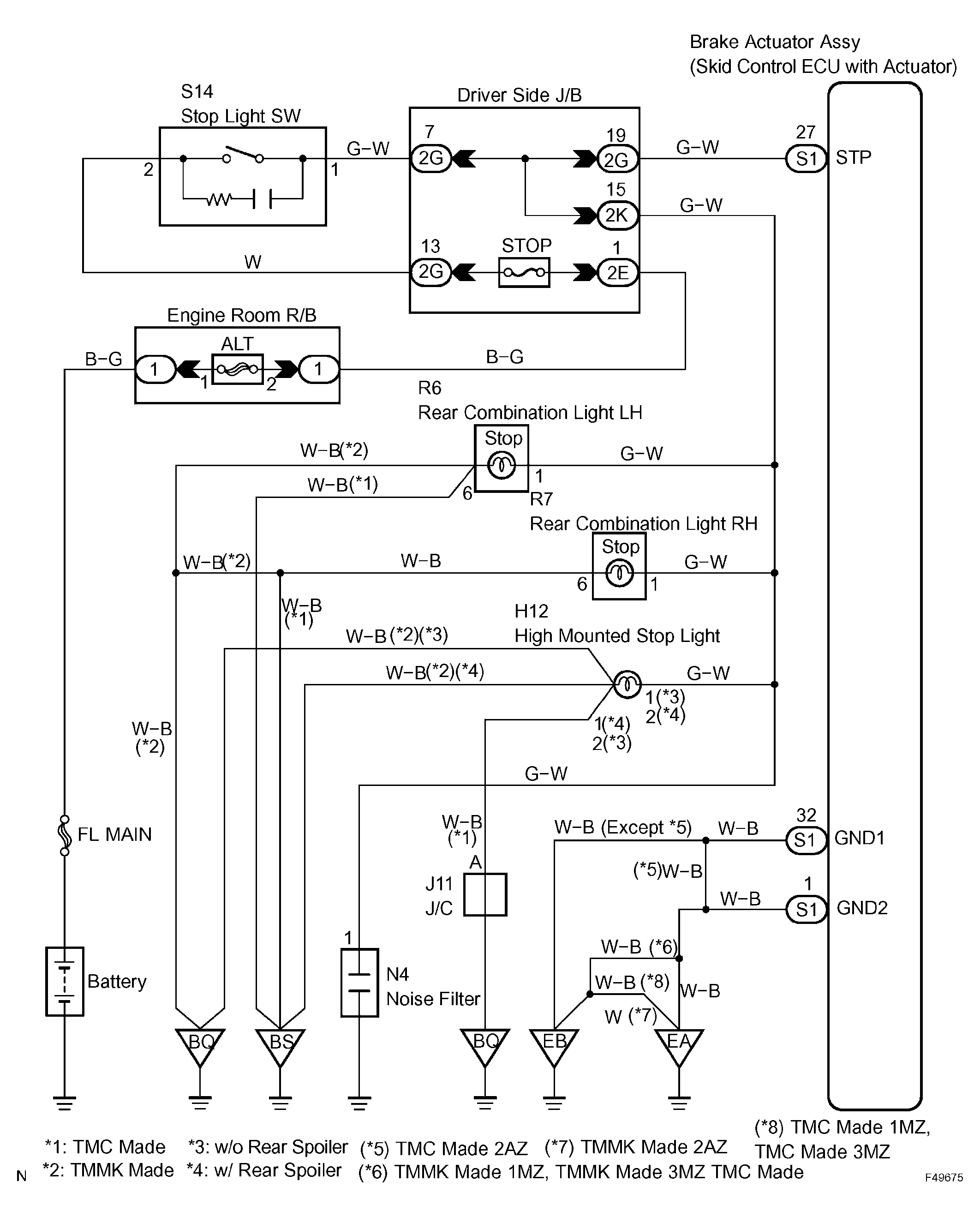

Fig 1: Open Circuit In Stop Light Switch Circuit Wiring Diagram

G04390068

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
