DTC C1224/44 Ne Signal Circuit: Wiring Diagram

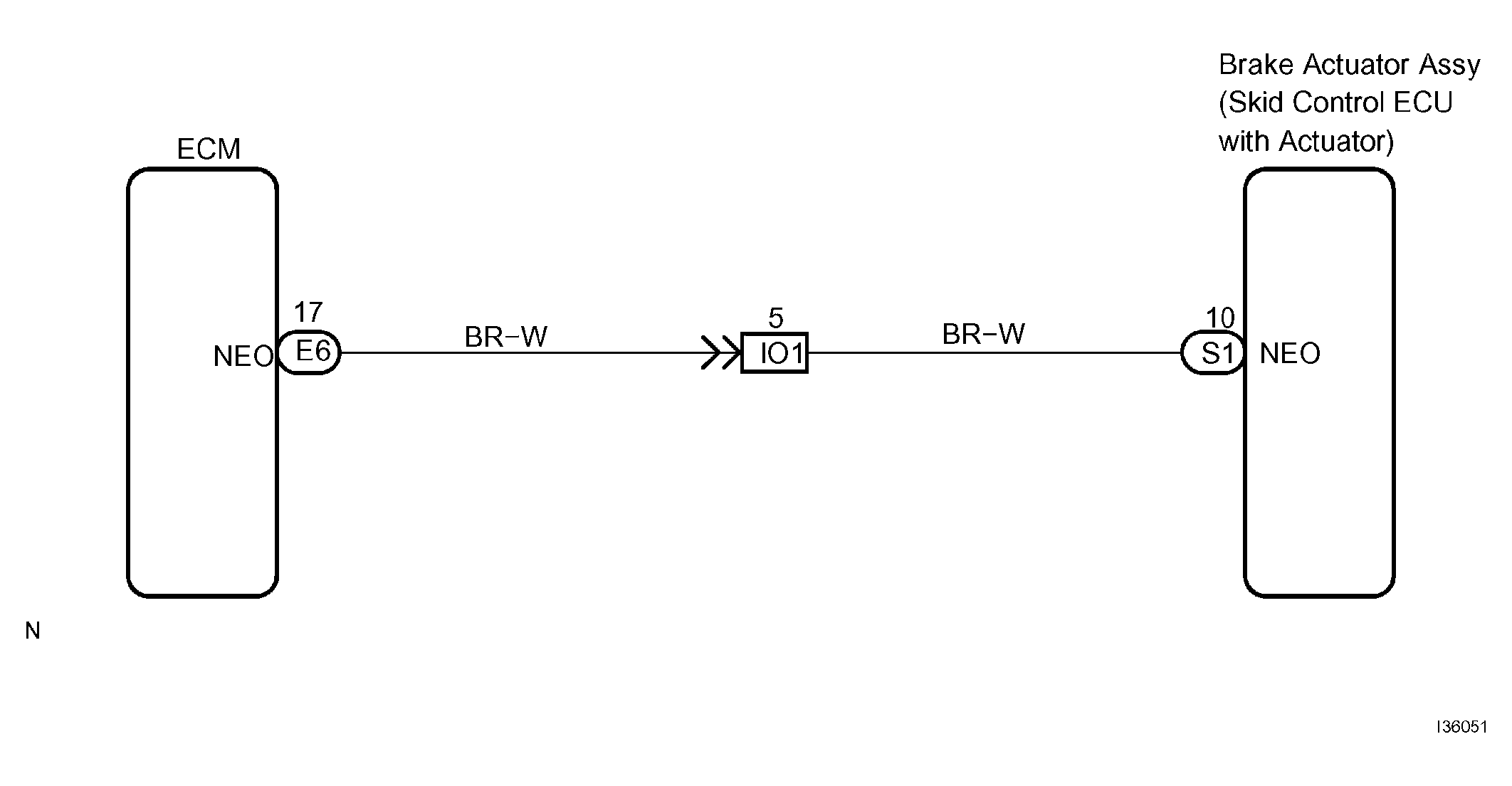

Fig 1: NE Signal Circuit Wiring Diagram

G04390053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
