DTC C1210/36 Zero Point Calibration Of Yaw Rate Sensor Undone: DTC C1336/39 Zero Point Calibration Of Deceleration Sensor Undone: Wiring Diagram

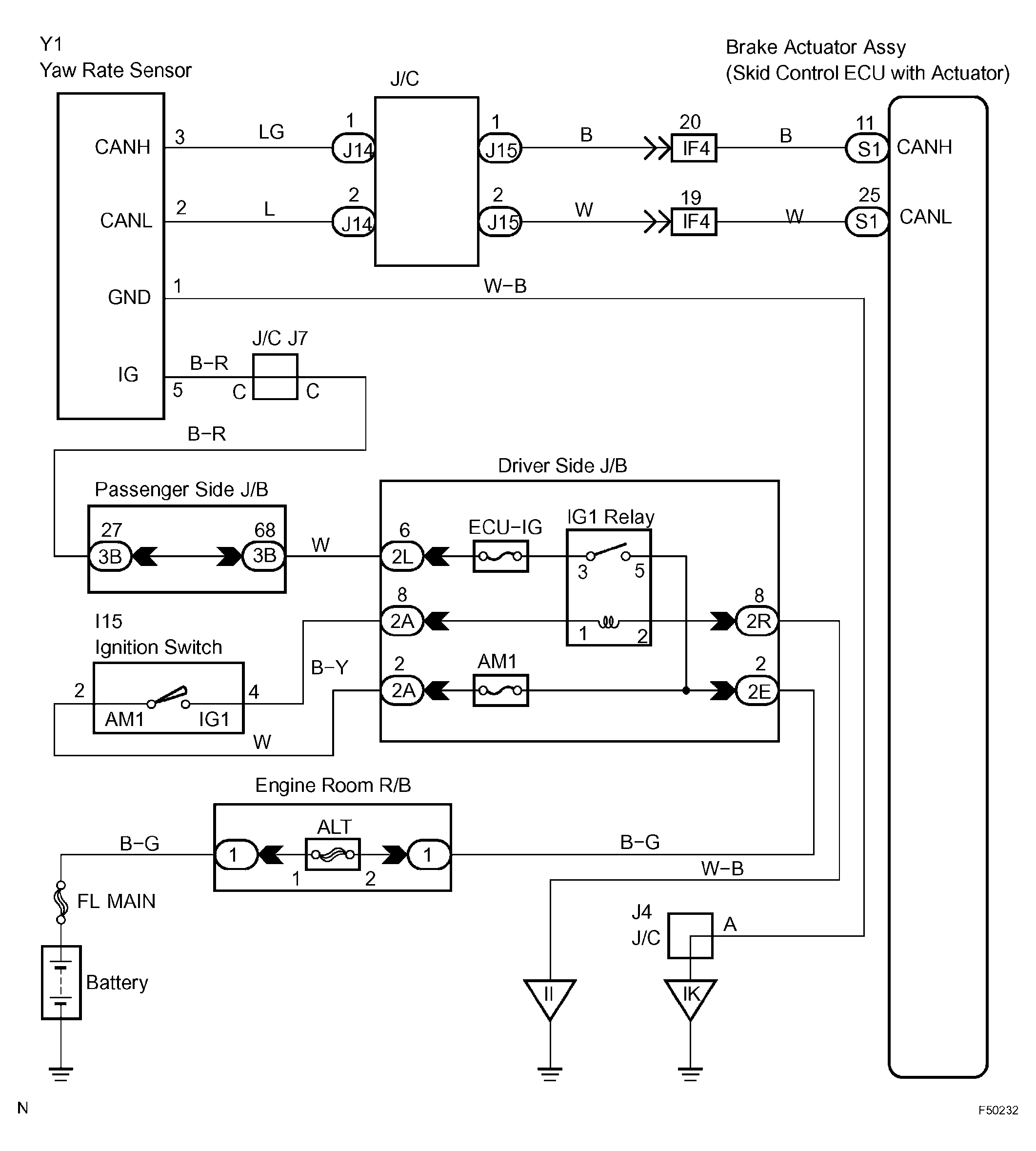

Fig 1: Yaw Rate Sensor Wiring Diagram
G04390052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
