DTC C1203/53 ECM Communication Circuit Malfunction: Wiring Diagram

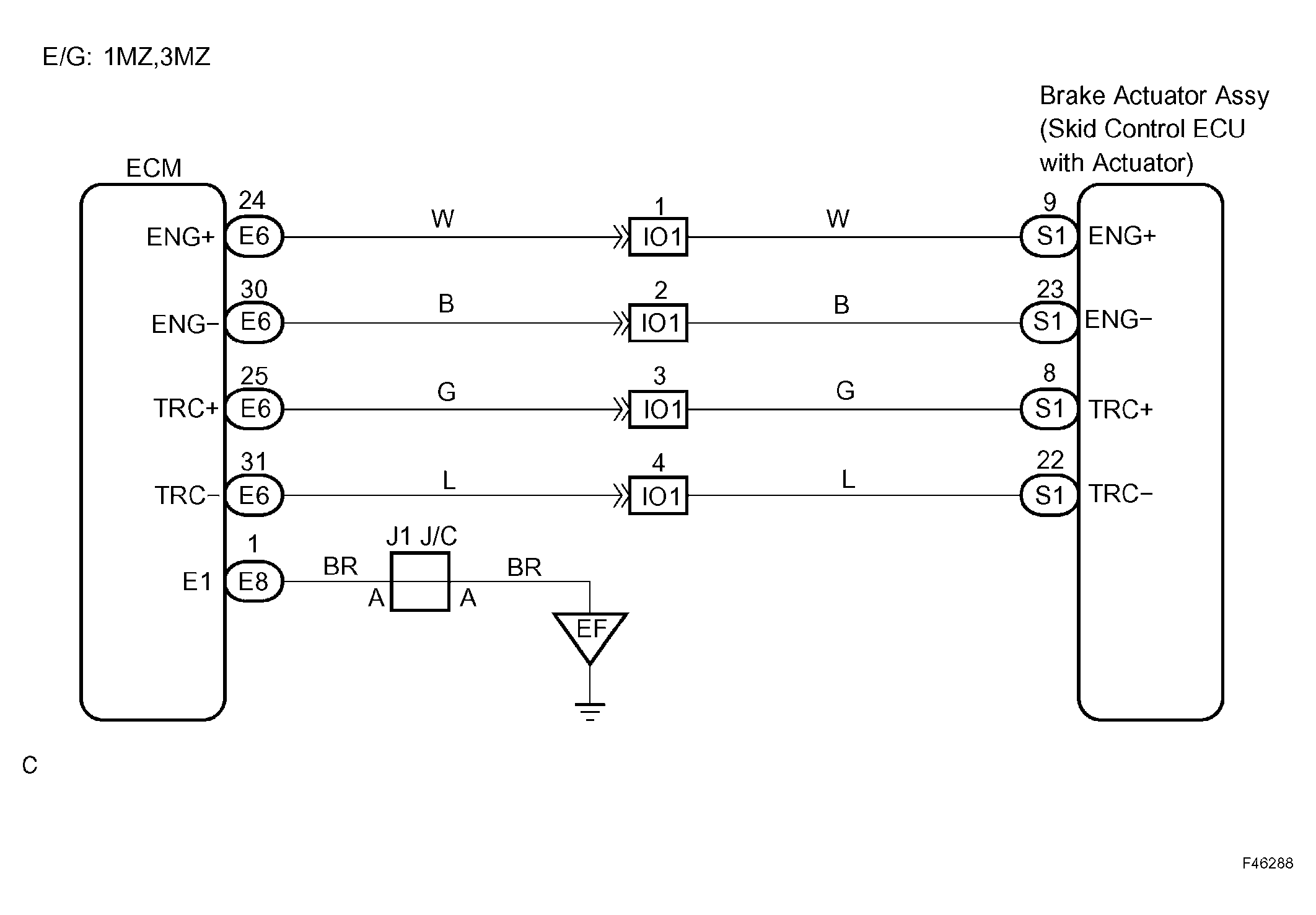

Fig 1: ECM Communication Circuit Wiring Diagram (E/G: 1MZ, 3MZ)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

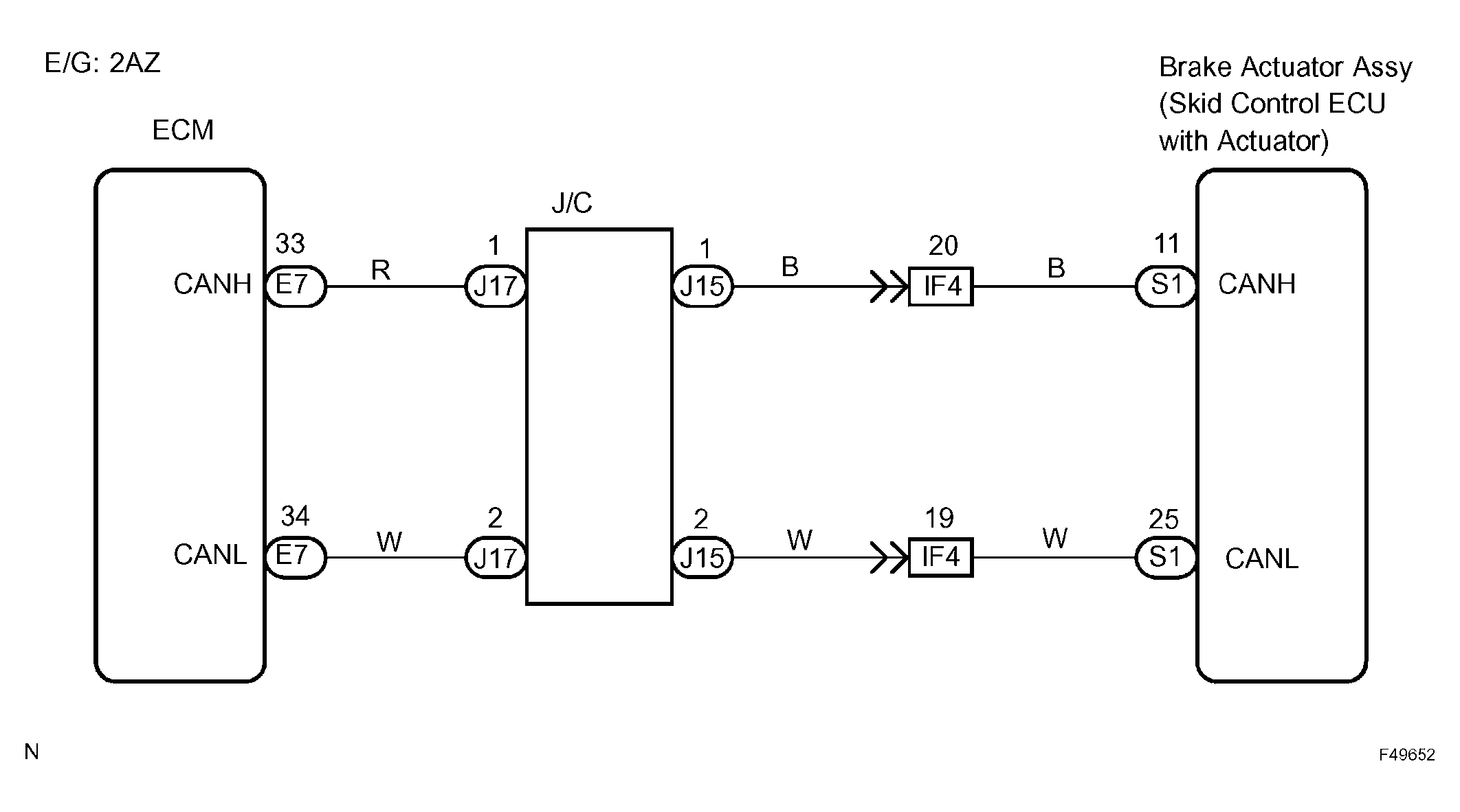

Fig 2: ECM Communication Circuit Wiring Diagram (E/G: 2AZ)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
