DTC C0273/13 Open Circuit In Abs Motor Relay Circuit: DTC C0274/14 B+ Short Circuit In Abs Motor Relay Circuit: DTC C1361/91 Short Circuit In Abs Motor Fail Safe Relay Circuit: Wiring Diagram

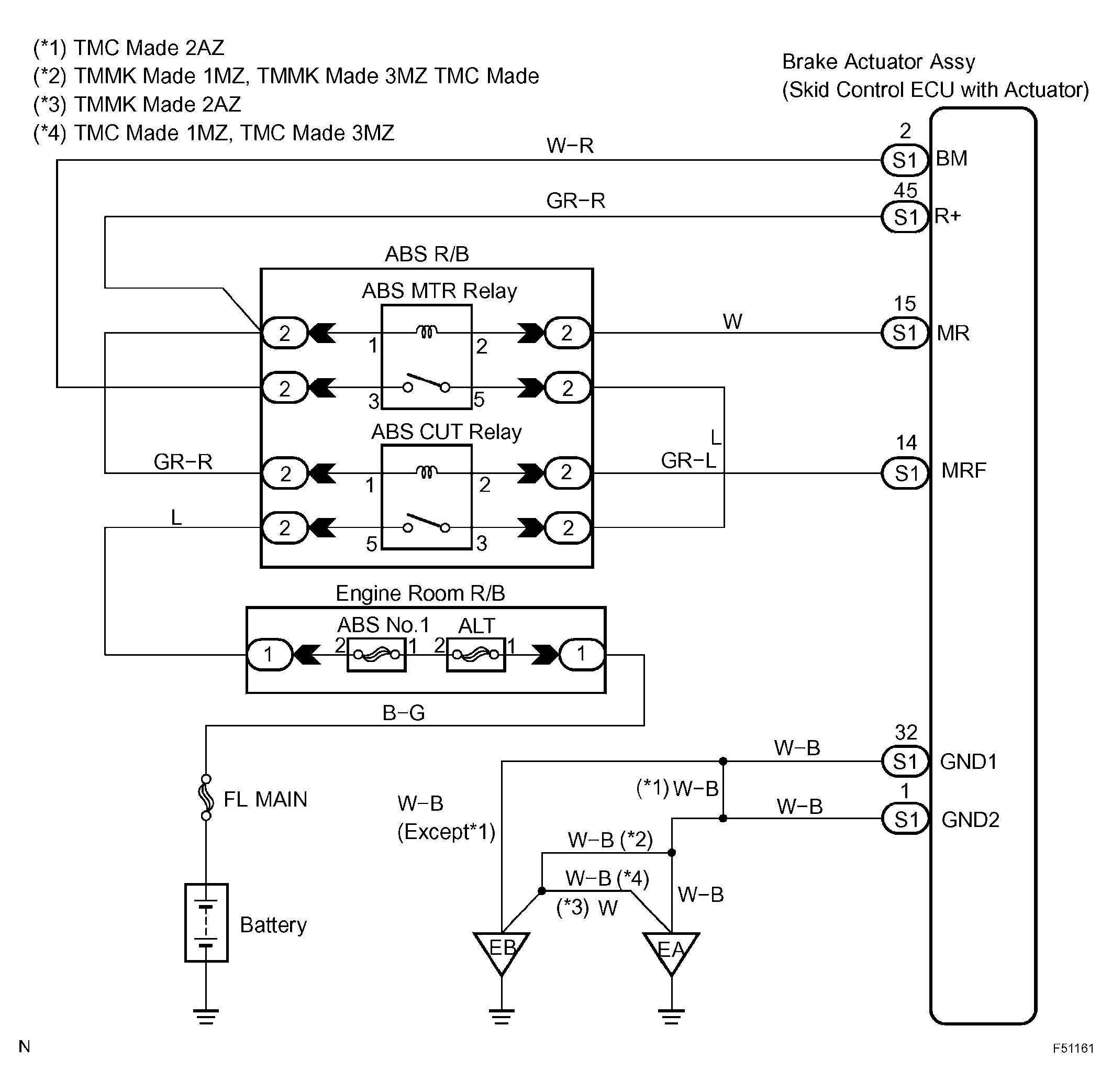

Fig 1: Identifying ABS Motor Relay Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
