DTC C0226/21 SFR Solenoid Circuit: DTC C0236/22 SFL Solenoid Circuit: DTC C0246/23 SRR Solenoid Circuit: DTC C0256/24 SRL Solenoid Circuit: DTC C1225/25 SMC Solenoid Circuit: Wiring Diagram

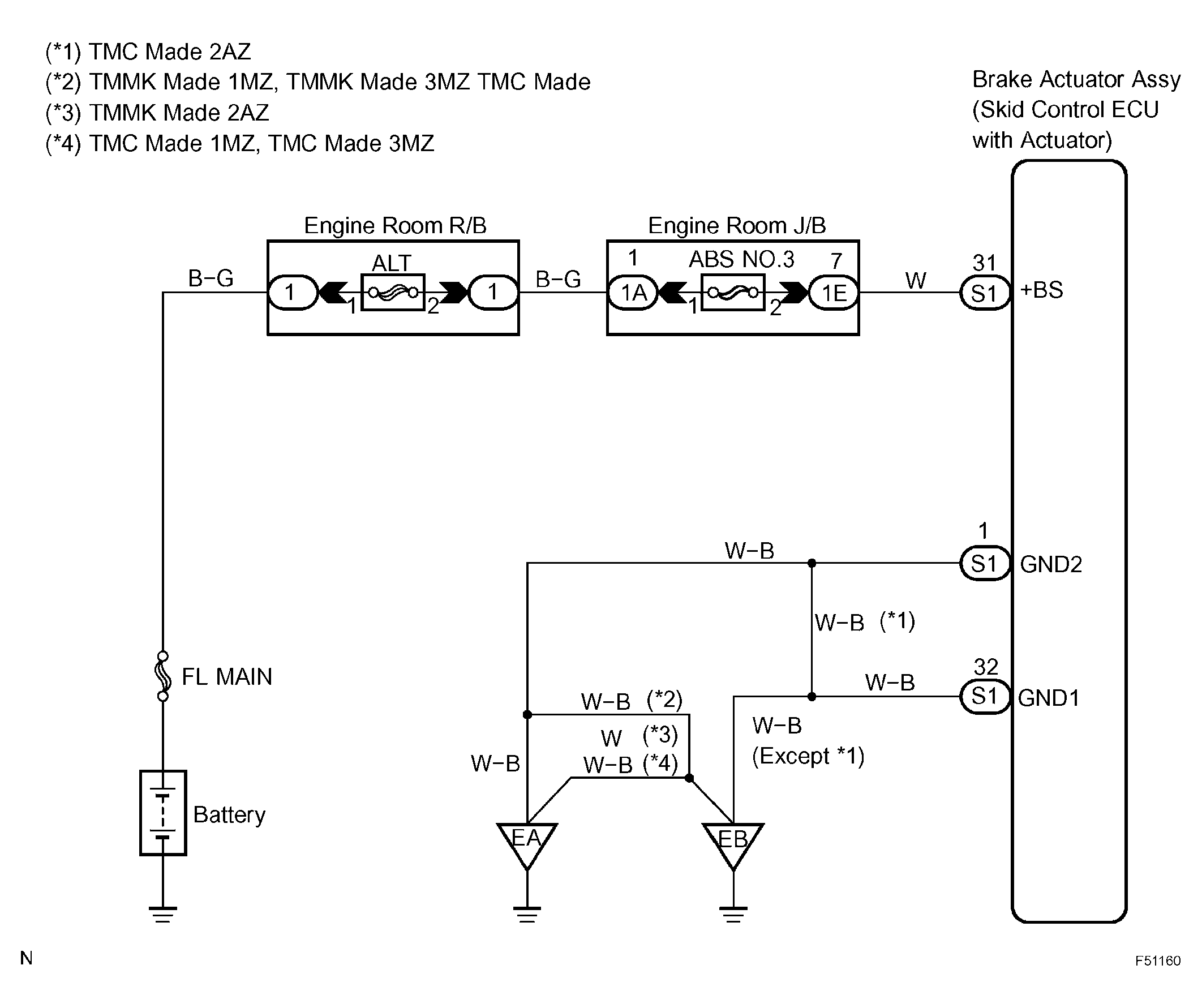

Fig 1: Identifying Solenoid Circuit Wiring Diagram
G04390036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
