Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics)
>>
Customer Problem Analysis Check
Customer Problem Analysis Check

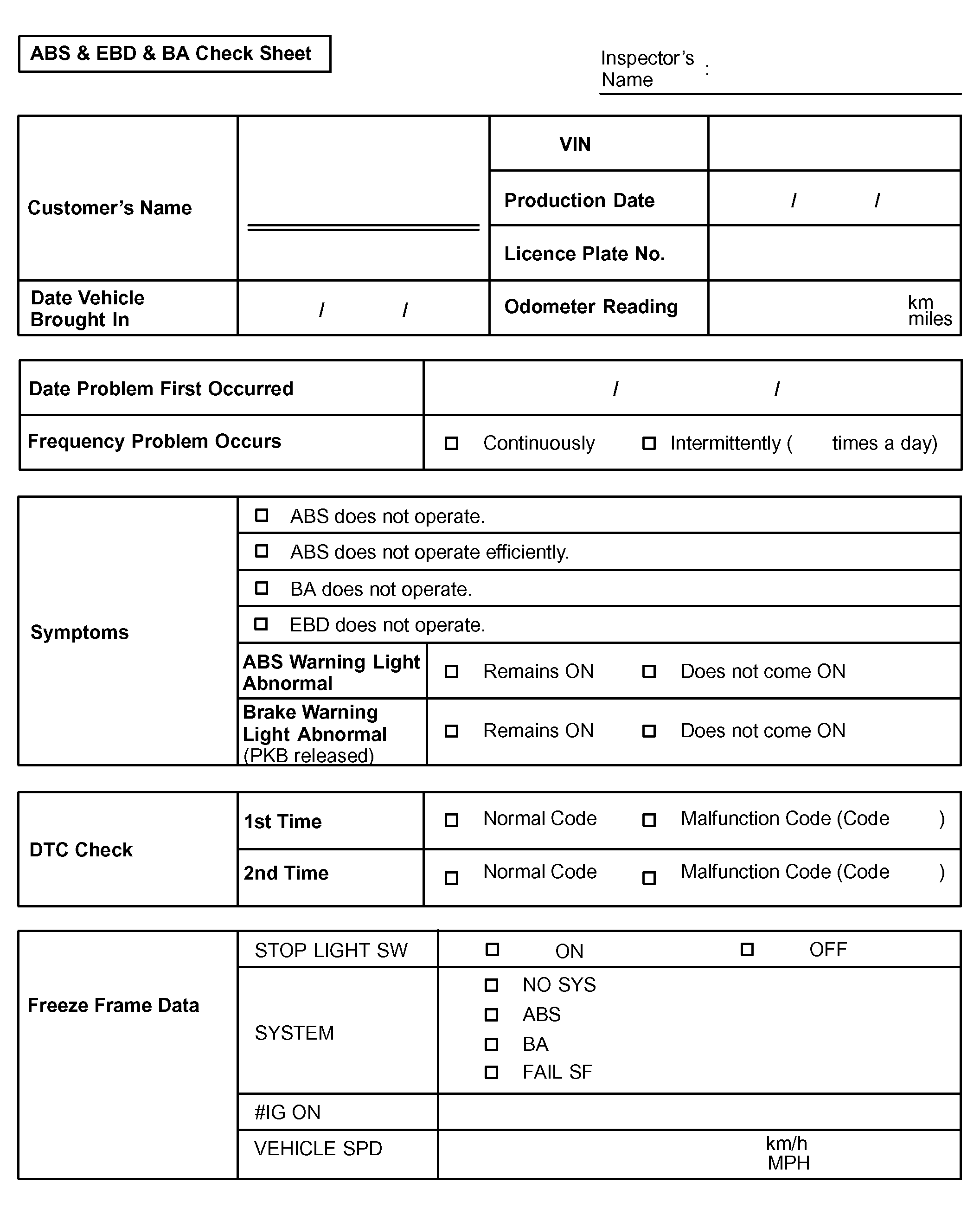

Fig 1: Customer Problem Analysis Check Sheet (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

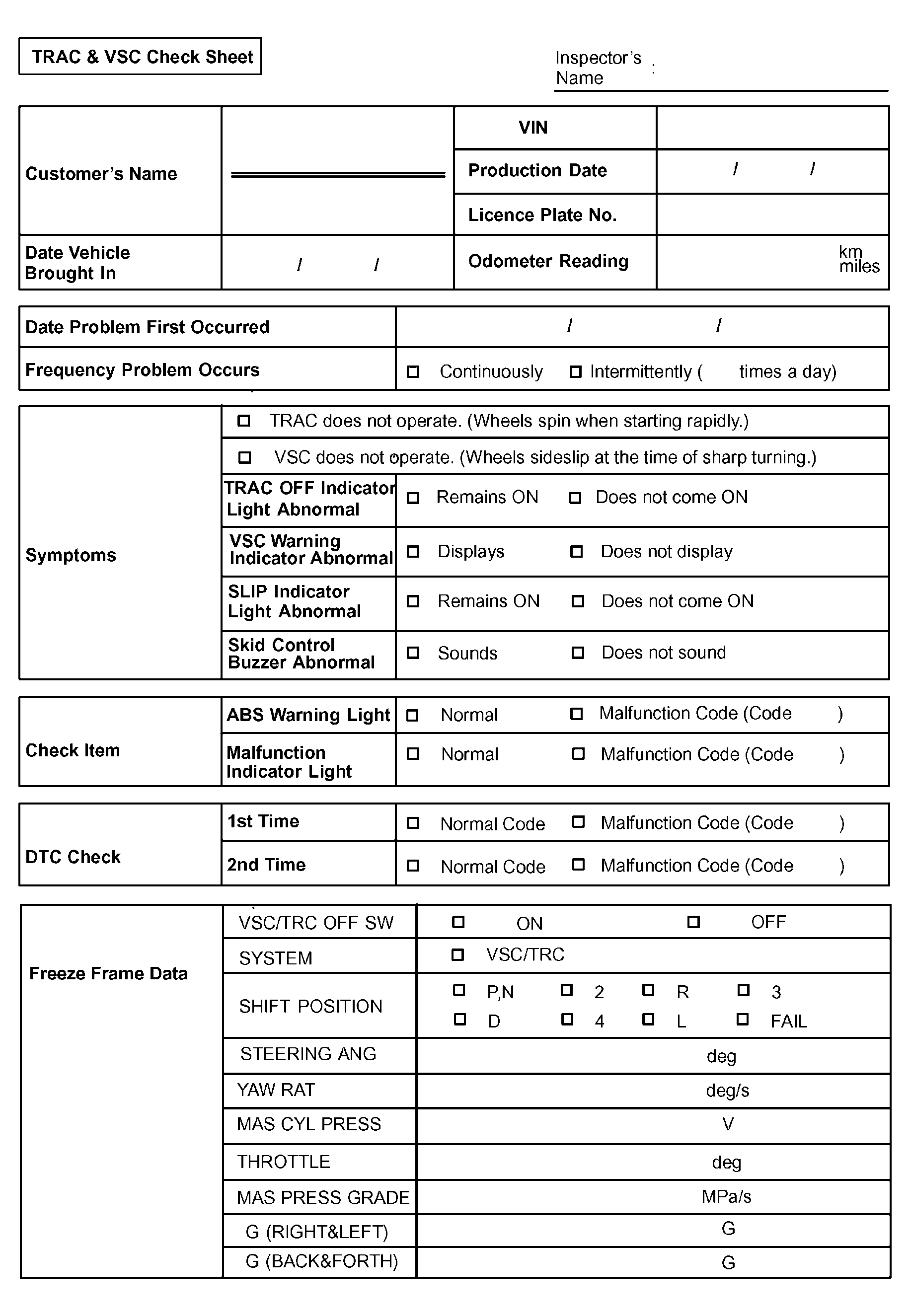

Fig 2: Customer Problem Analysis Check Sheet (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
