PARKING BRAKE (From August, 2002): Components

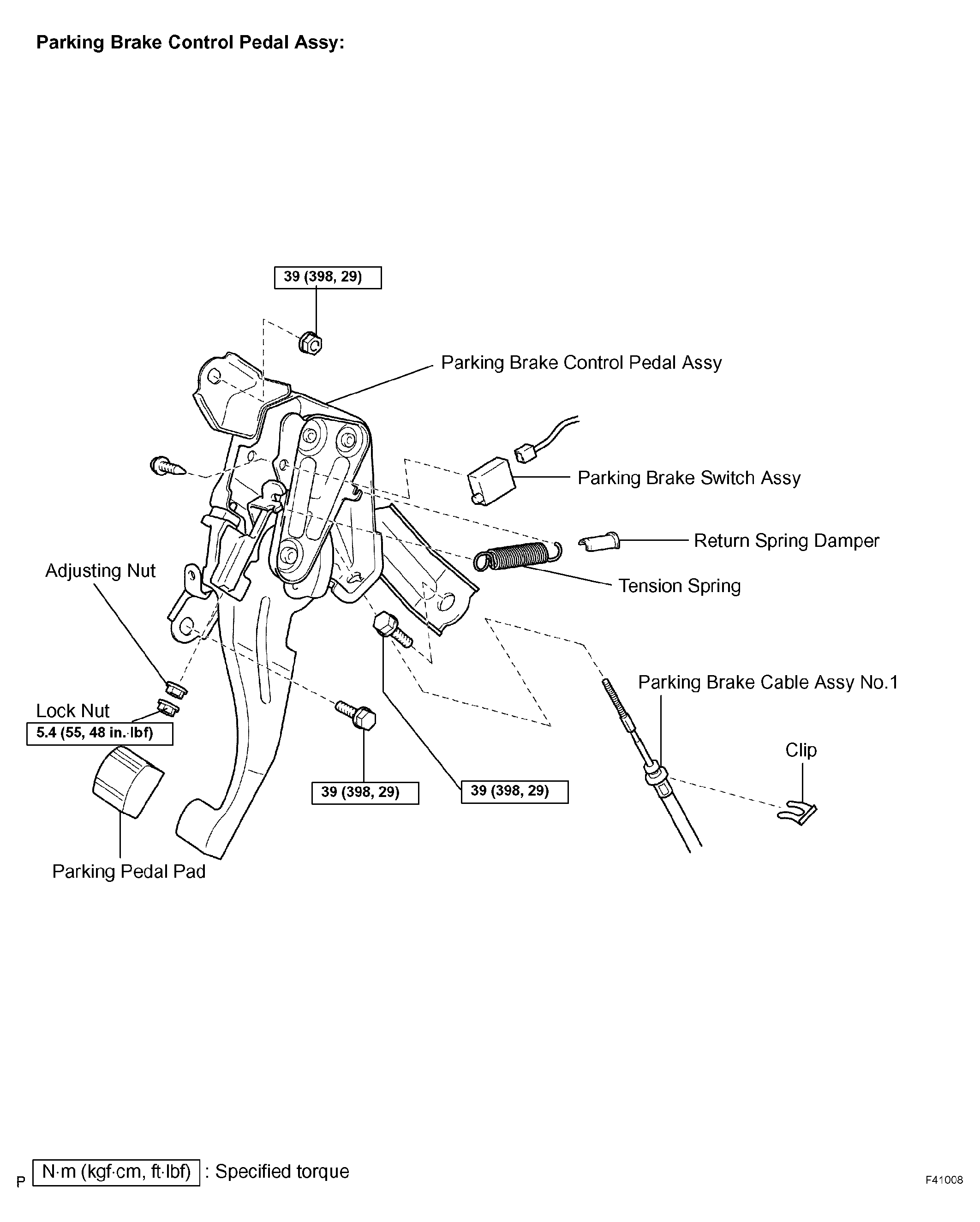

Fig 1: Identifying Parking Brake Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

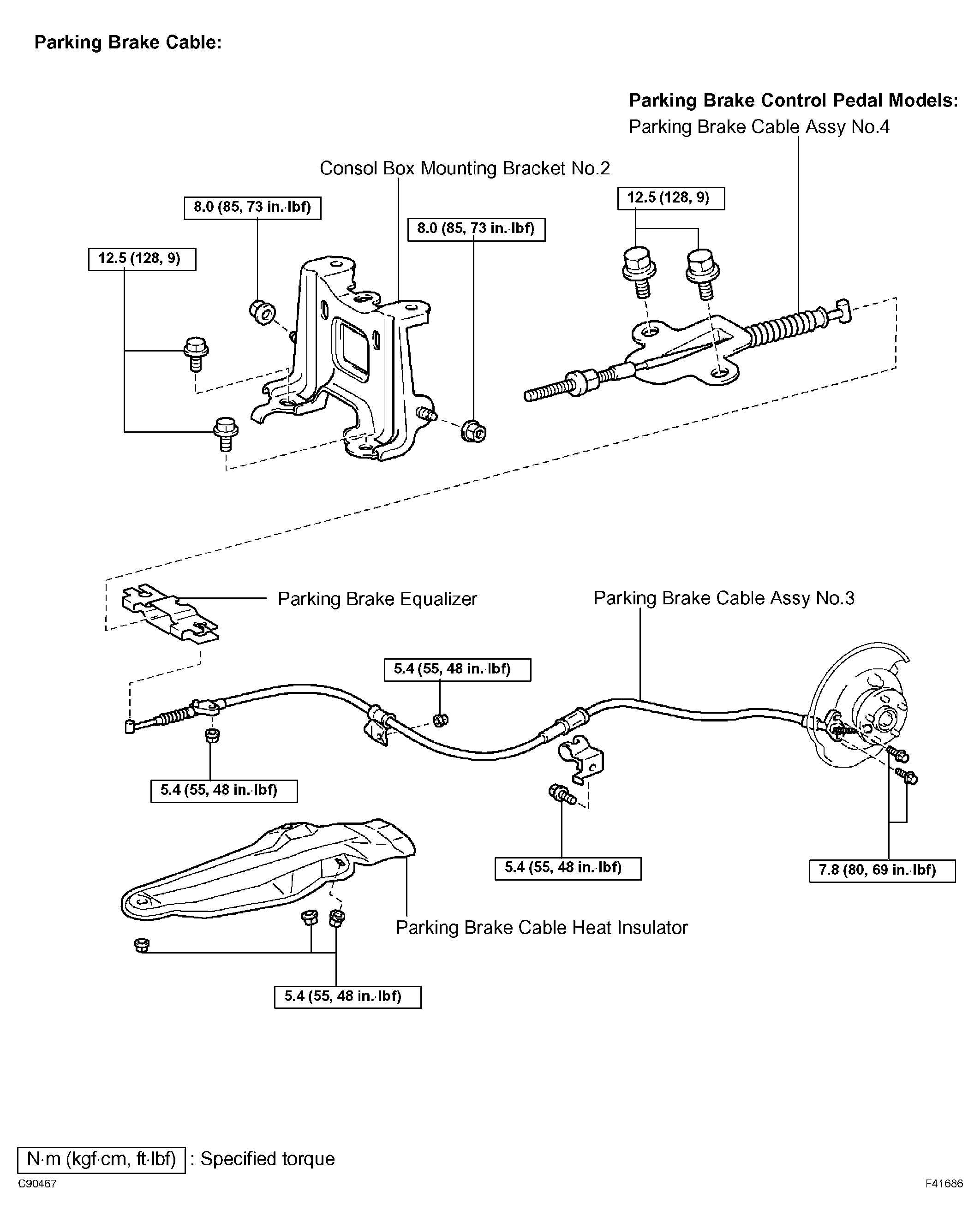

Fig 2: Identifying Parking Brake Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

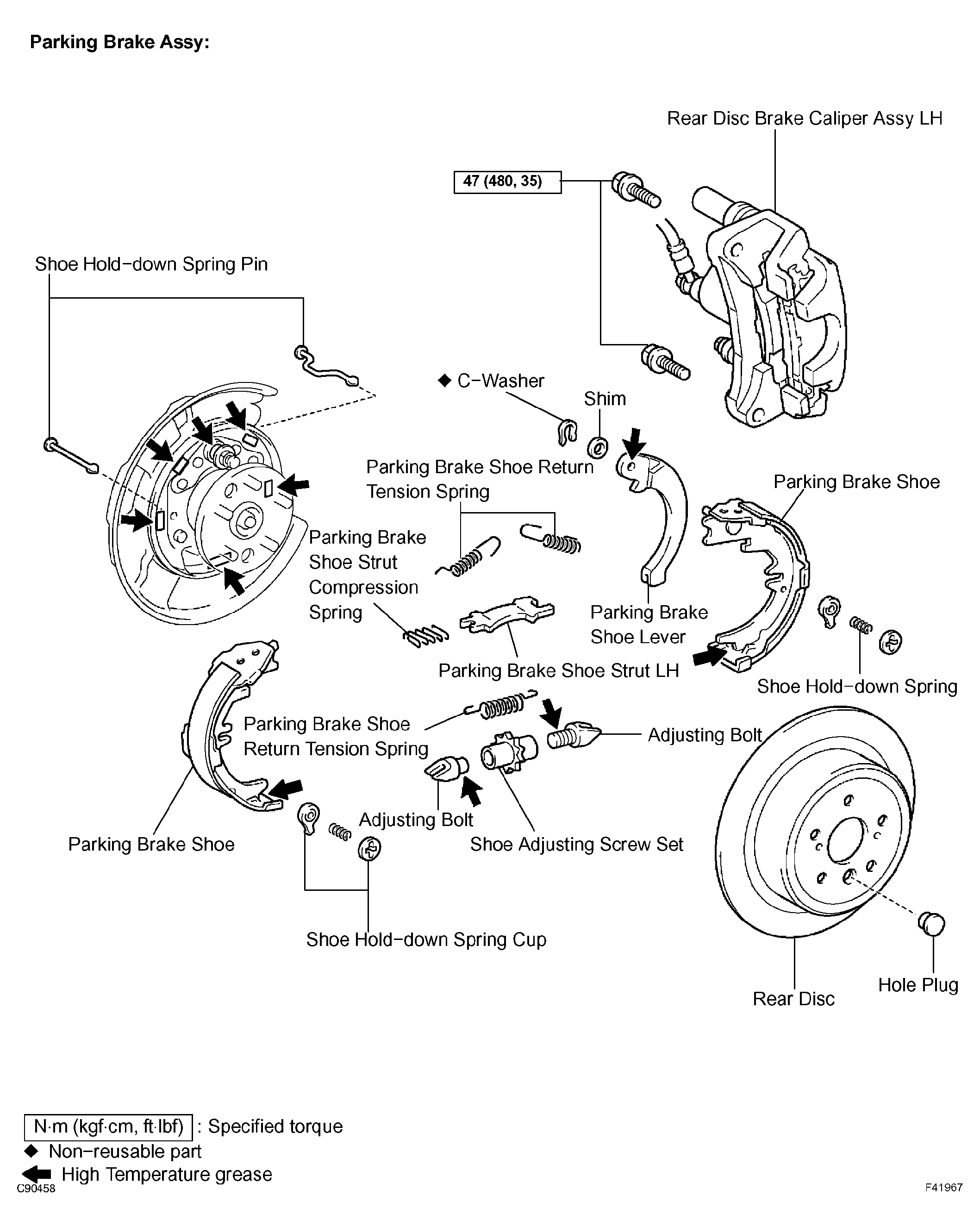

Fig 3: Identifying Parking Brake Components (3 Of 4)

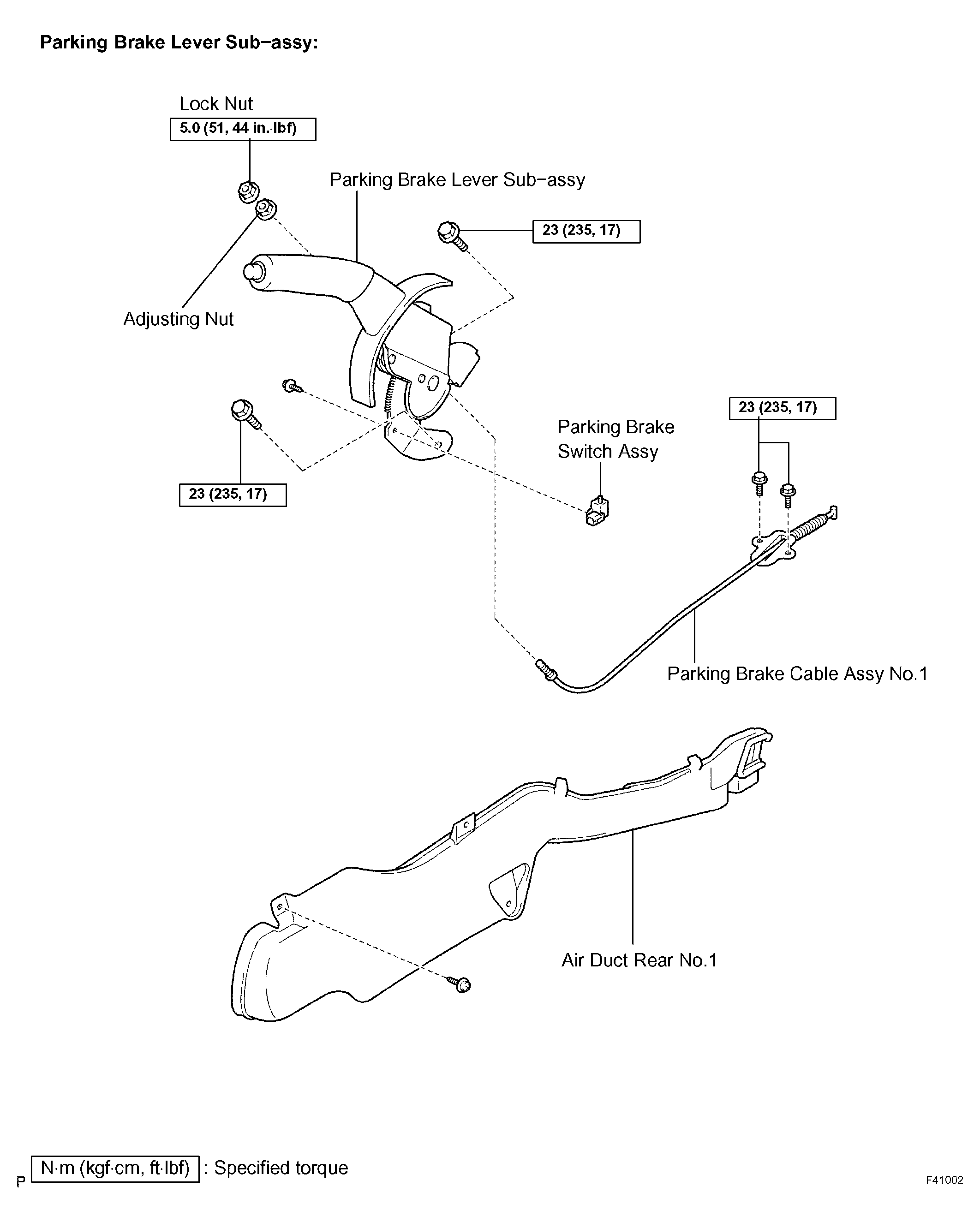

Fig 4: Identifying Parking Brake Components (4 Of 4)
