Speed Sensor Front LH: Replacement

HINT:

Replace the RH side by the same procedures with LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE SPEED SENSOR FRONT LH
   1. Disconnect the speed sensor connector and clamp.

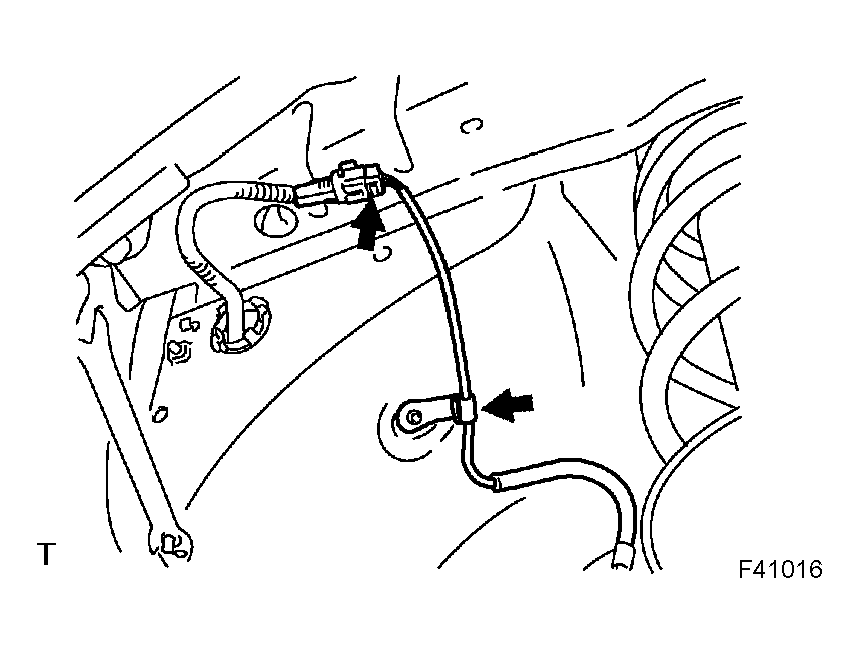

      Fig 1: Disconnecting Speed Sensor Connector And Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 clamp bolts holding the sensor harness and clamp from the body and shock absorber.

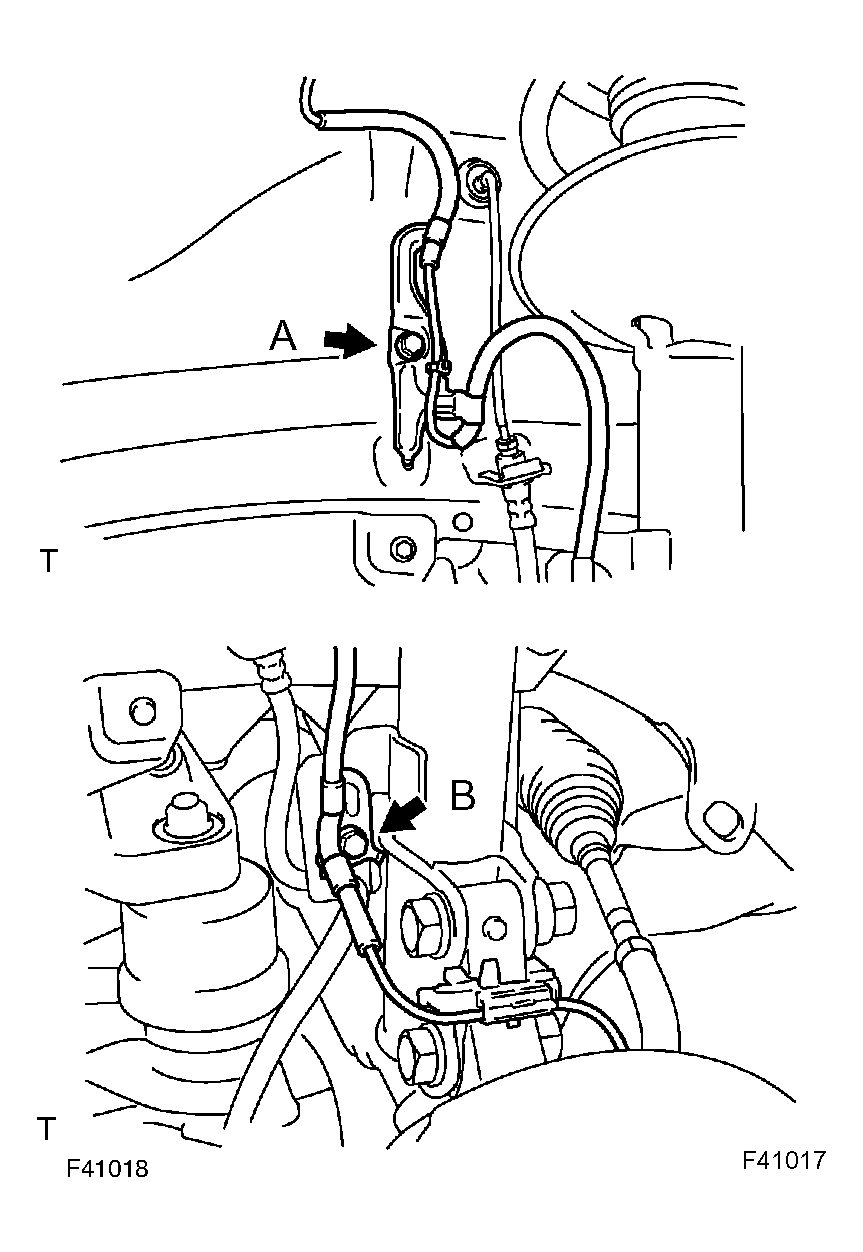

      Fig 2: Identifying Sensor Harness Clamp Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the bolt and speed sensor FR LH.
      NOTE: Do not stick and foreign matter on the sensor tip.

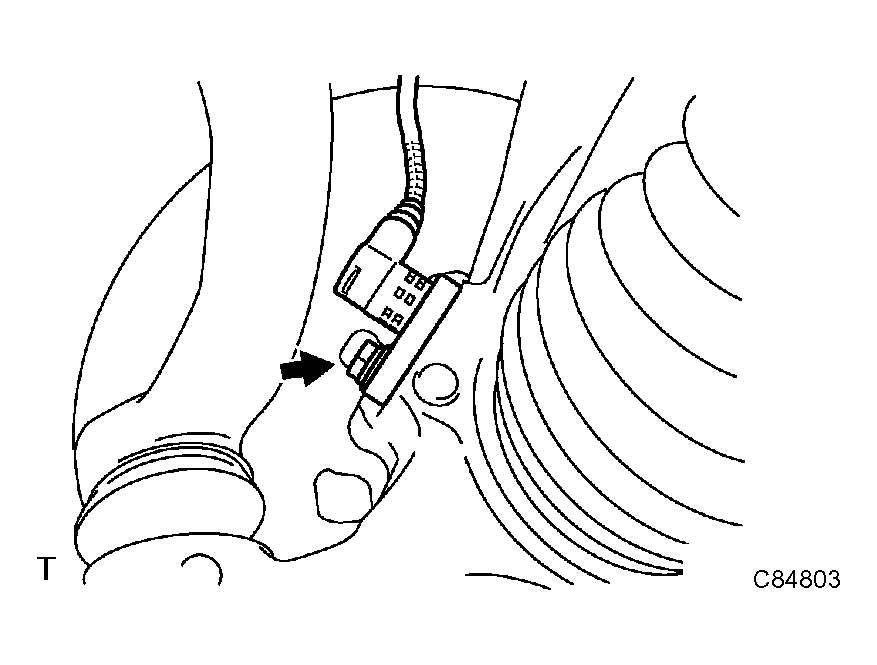

      Fig 3: Identifying Bolt And Speed Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SPEED SENSOR FRONT LH
   1. Install the speed sensor FR LH with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      NOTE: Make sure the sensor tip is clean.
      Fig 4: Identifying Bolt And Speed Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the sensor harness clamps with the 2 bolts "A" and "B" to the body and shock absorber.

      Torque:

      Bolt A: 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Bolt B: 18.8 N.m (192 kgf.cm, 14 ft.lbf)

   3. Connect the clamp to the knuckle.
      Fig 5: Identifying Sensor Harness Clamp Bolts (A, B)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Connect the speed sensor connector and clamp.
   Fig 6: Connecting Speed Sensor Connector And Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL FRONT FENDER LINER LH
6. INSTALL FRONT WHEEL

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

7. CHECK ABS SPEED SENSOR SIGNAL (See step 7 on  PRE-CHECK  ,  TEST MODE PROCEDURE  or  TEST MODE PROCEDURE  )
