Rear Brake Shoe, Wheel Cylinder & Brake Drum: Components

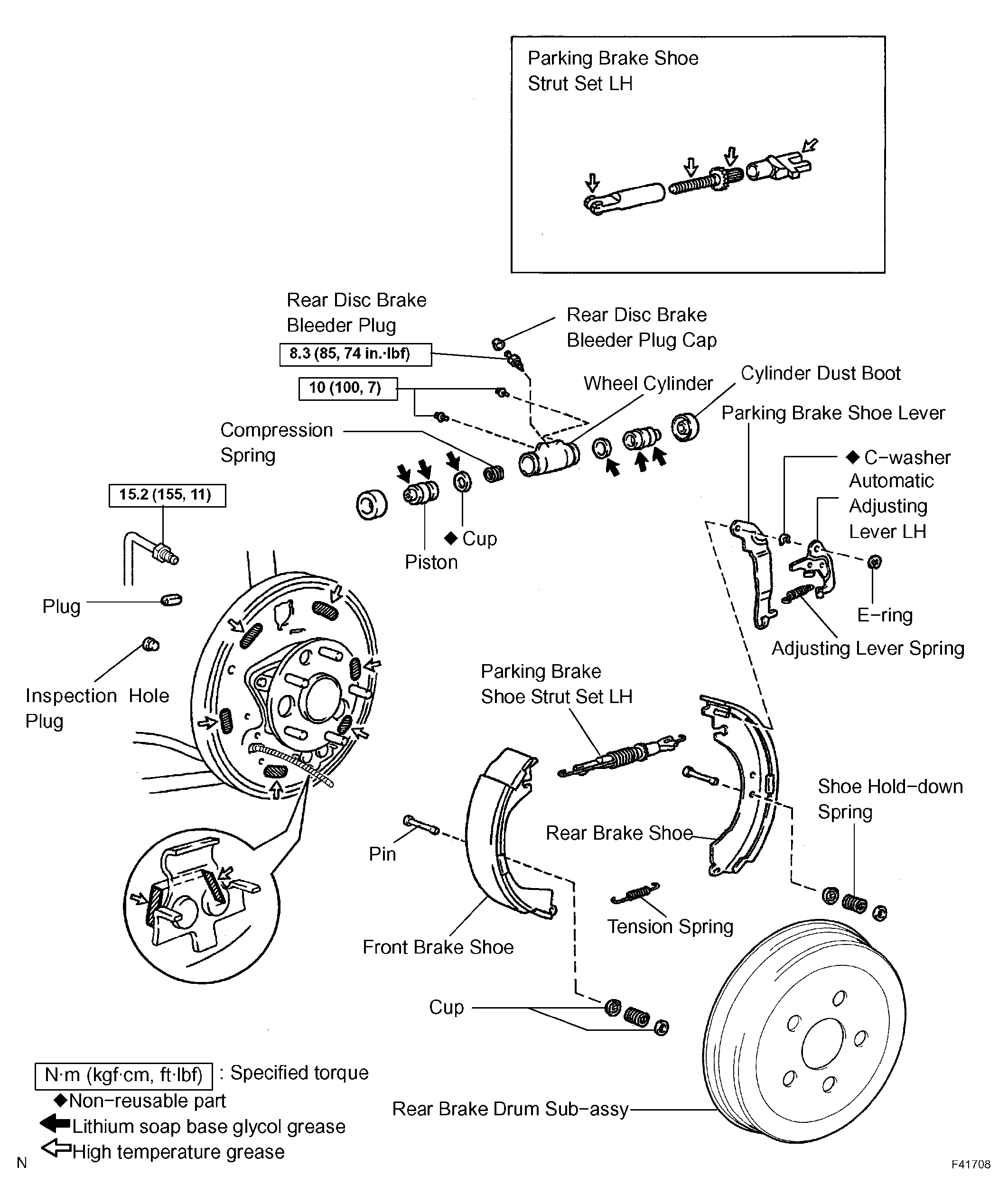

Fig 1: Identifying Rear Drum Brake Components

G04393127

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
