Rear Brake Pad, Brake Caliper & Brake Rotor: Components

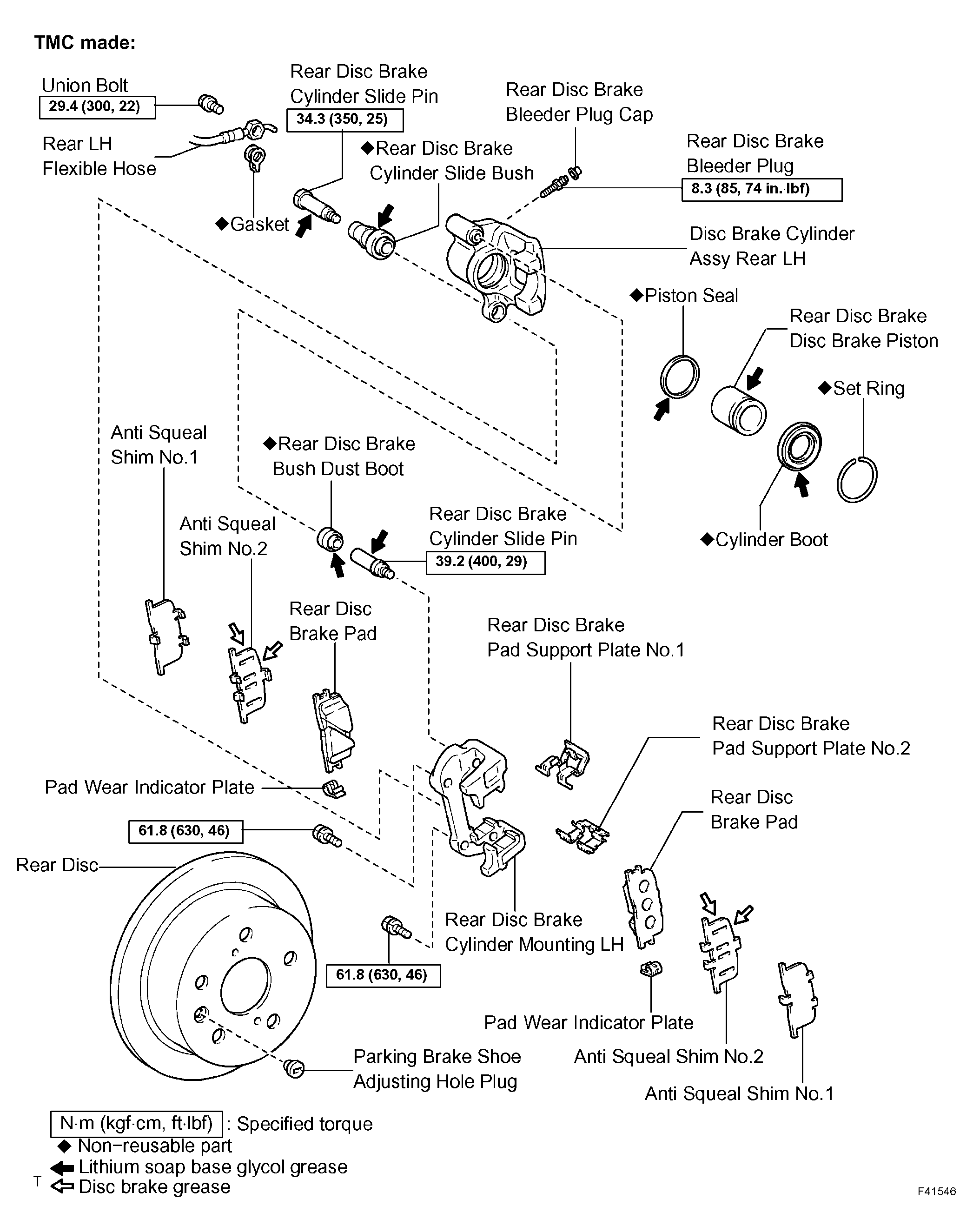

Fig 1: Identifying Rear Disc Brake Components (1 Of 2)
G04393120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

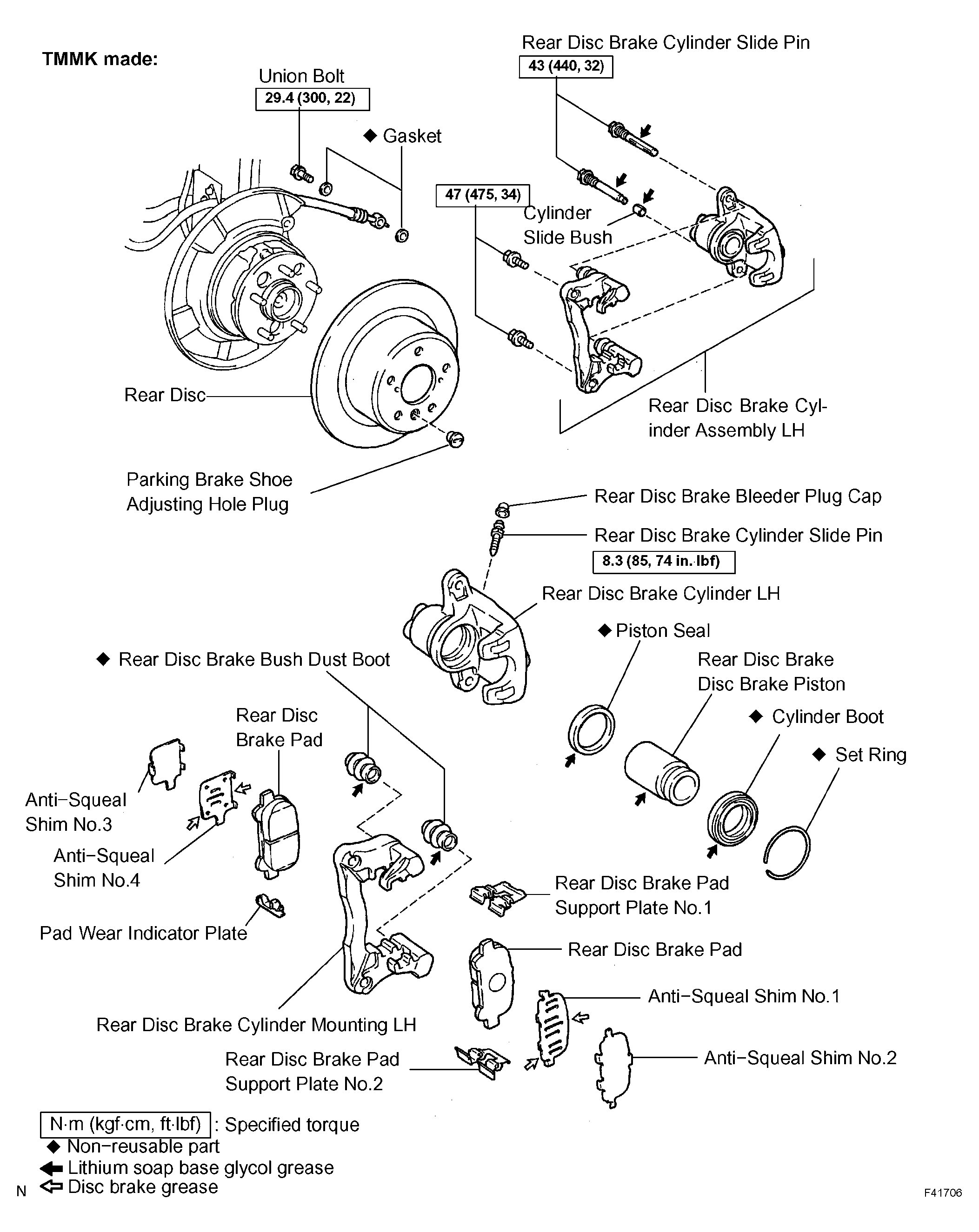

Fig 2: Identifying Rear Disc Brake Components (2 Of 2)
G04393121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
