Brake Pedal Support ASSY: Components

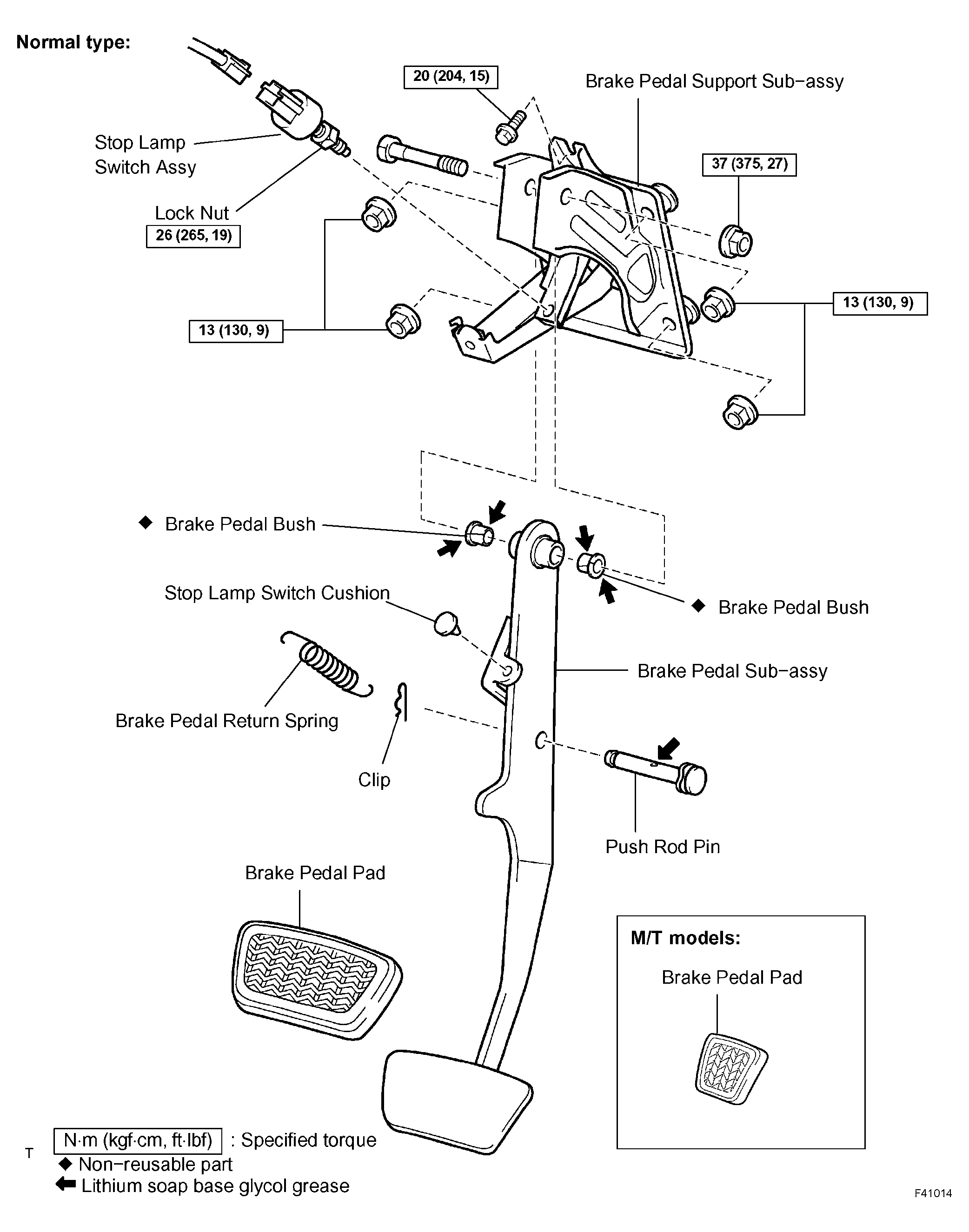

Fig 1: Identifying Brake Pedal Support Assy Components (1 Of 2)
G04393046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

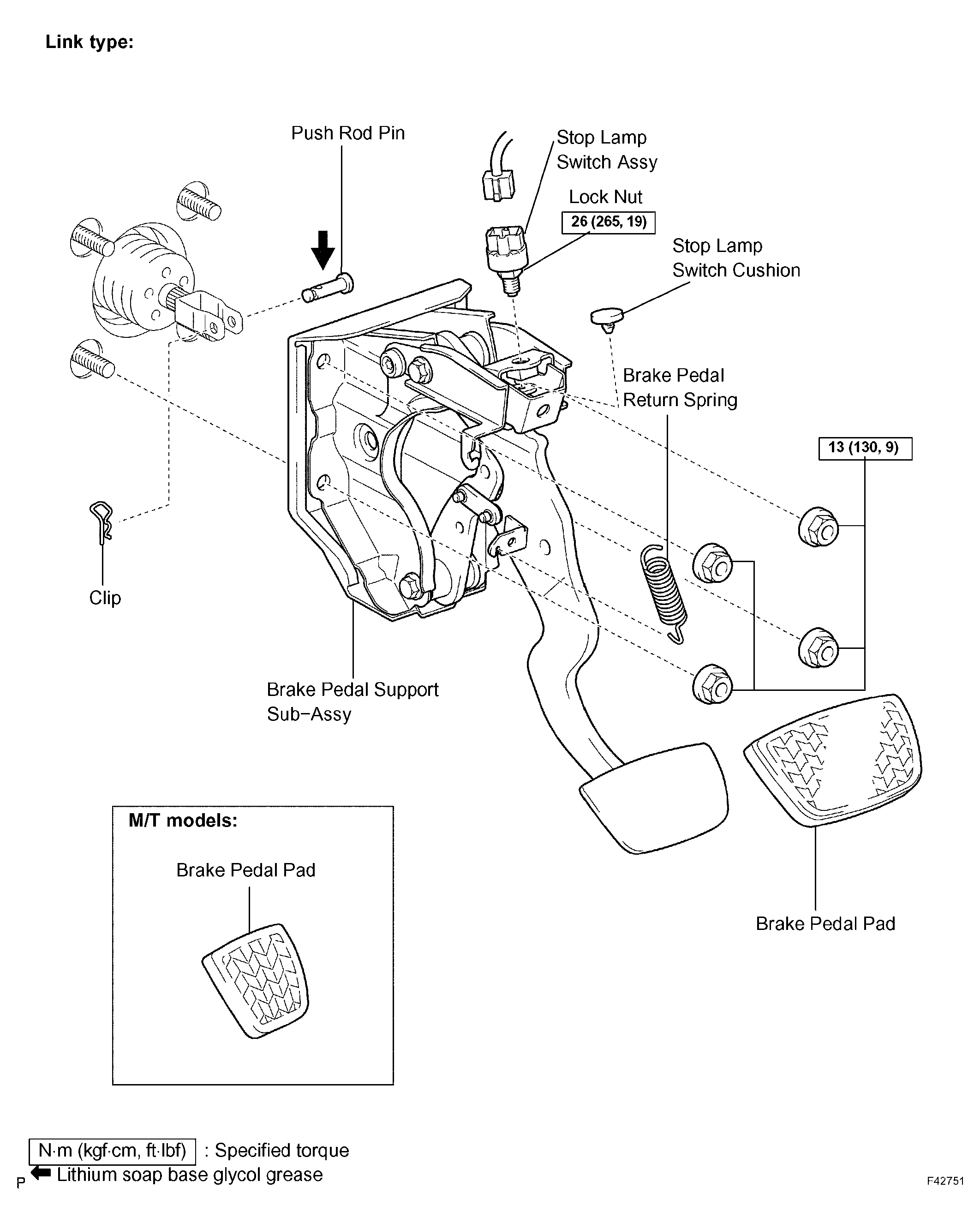

Fig 2: Identifying Brake Pedal Support Assy Components (2 Of 2)
G04393047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
