Brake Booster ASSY: Components

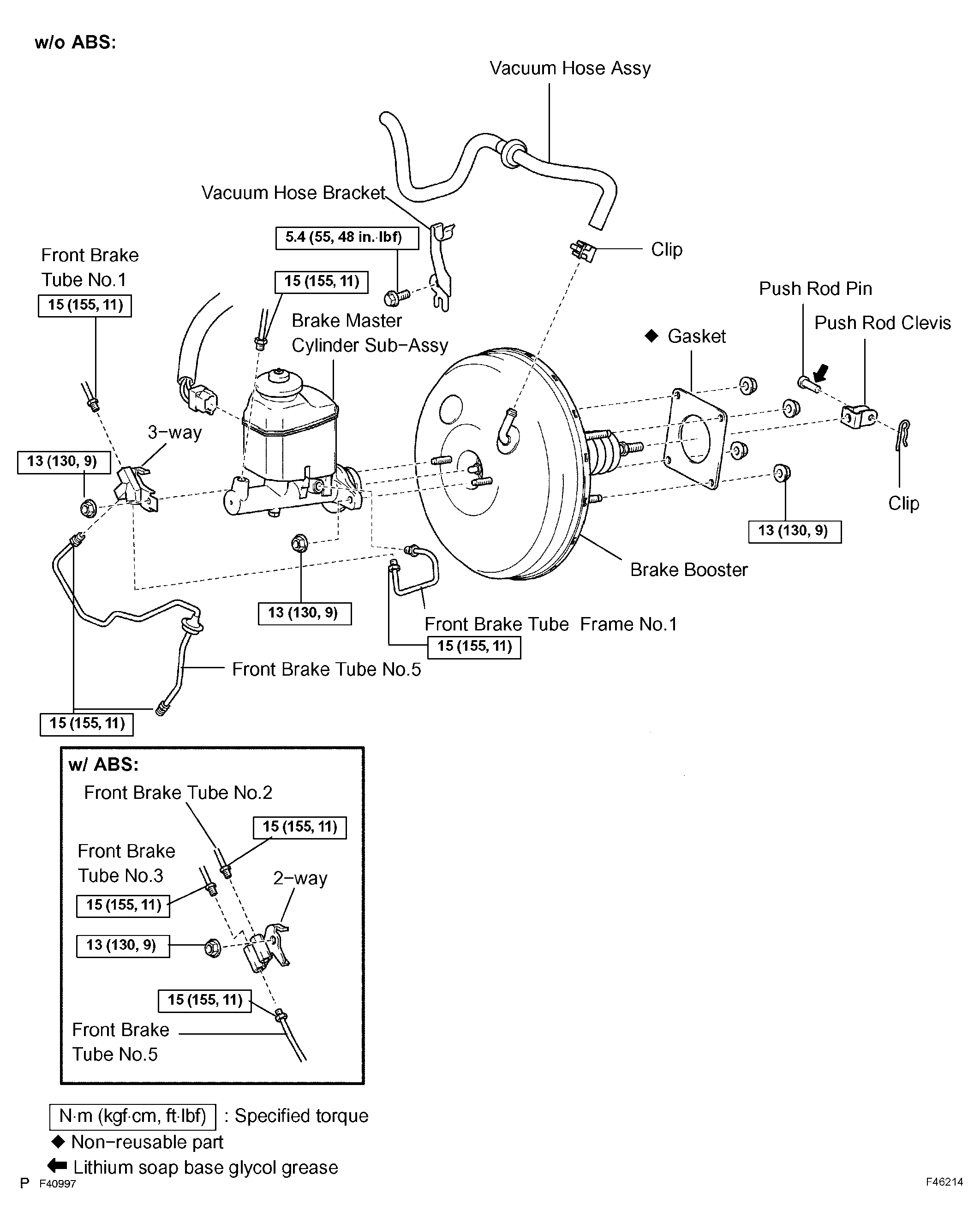

Fig 1: Identifying Brake Booster Assy Components

G04393091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
